Home >> Oldsmobile >> 1992 >> Silhouette V6-191 3.1L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

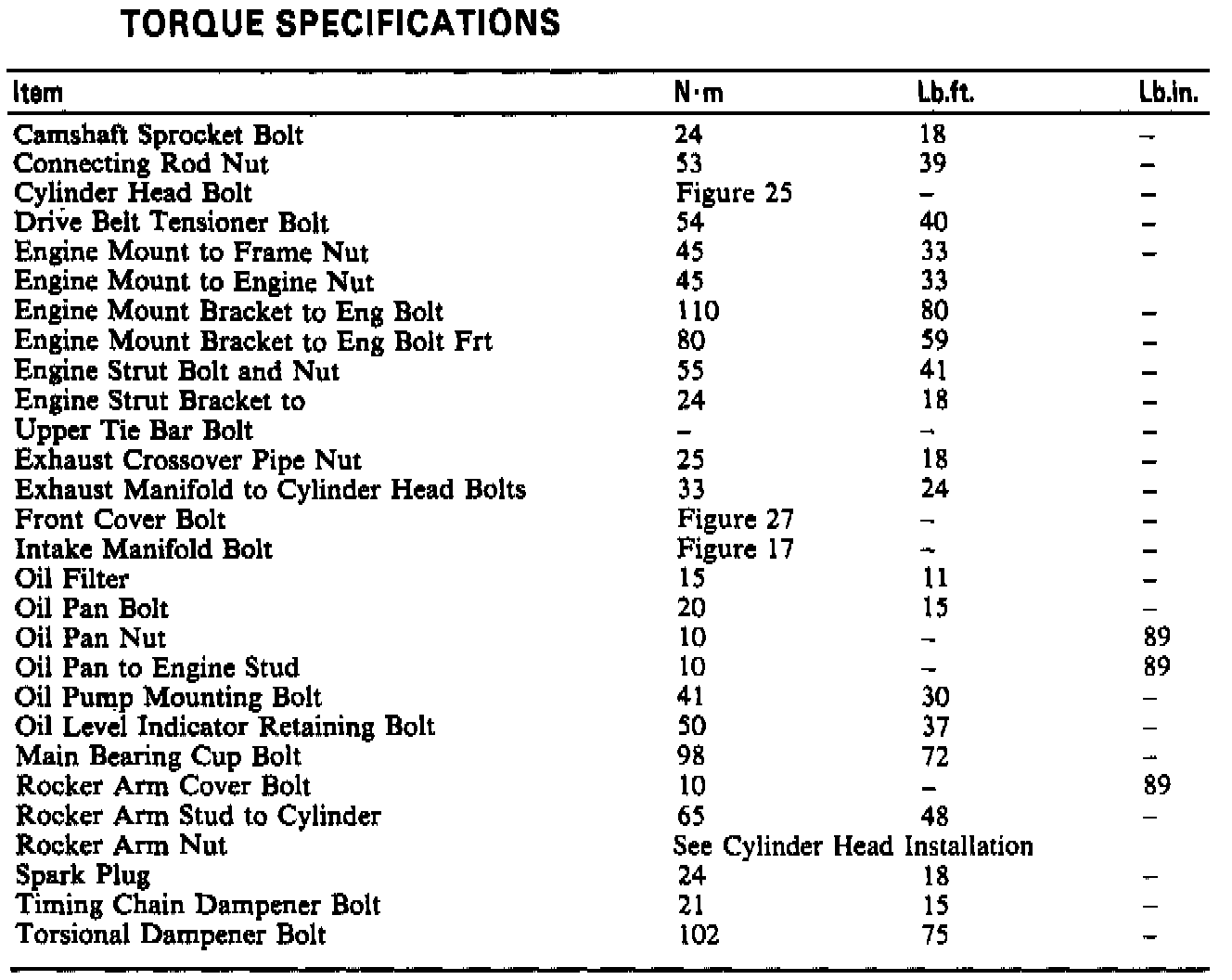

Torque Specifications:

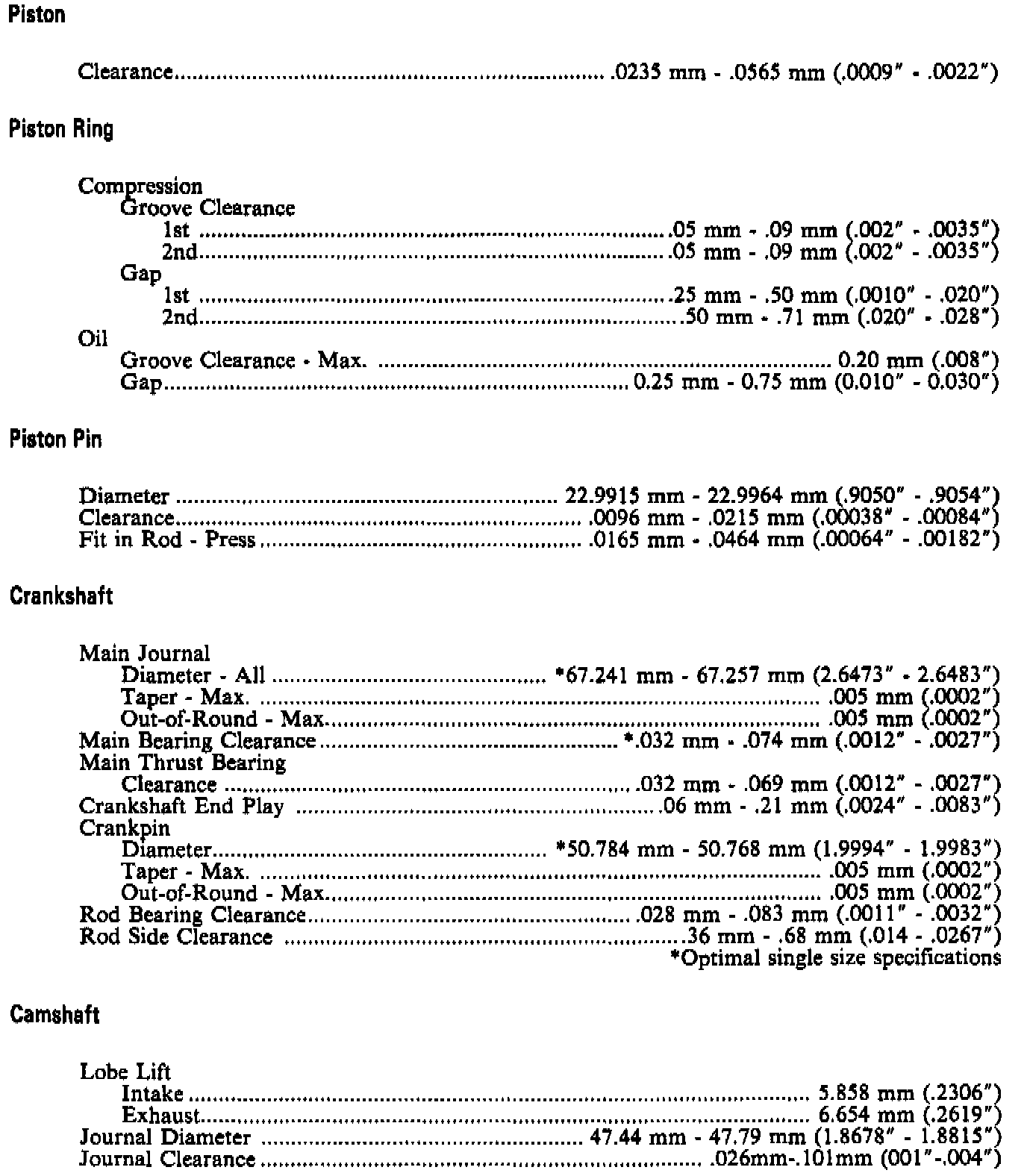

Engine Specifications:

Engine Specifications (continued):

Engine Specifications (continued):

Cylinder Head Sequence:

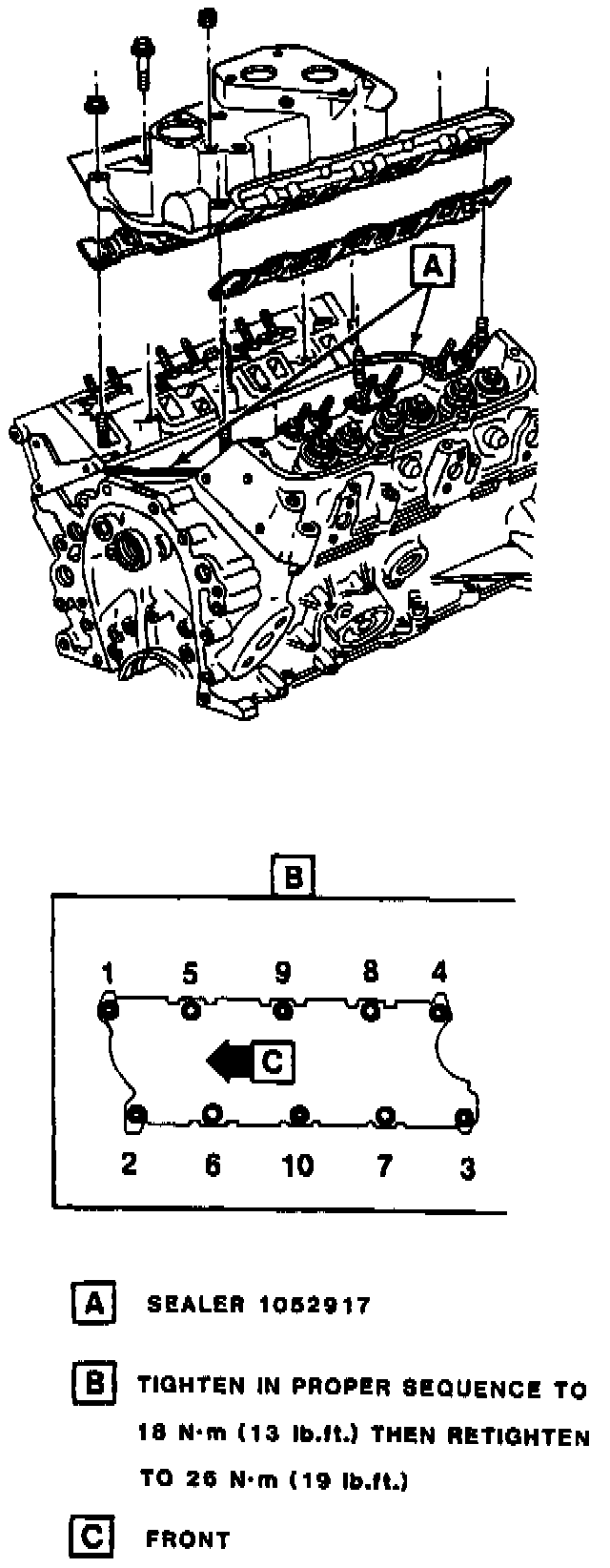

Intake Manifold Sequence:
