System Specifications

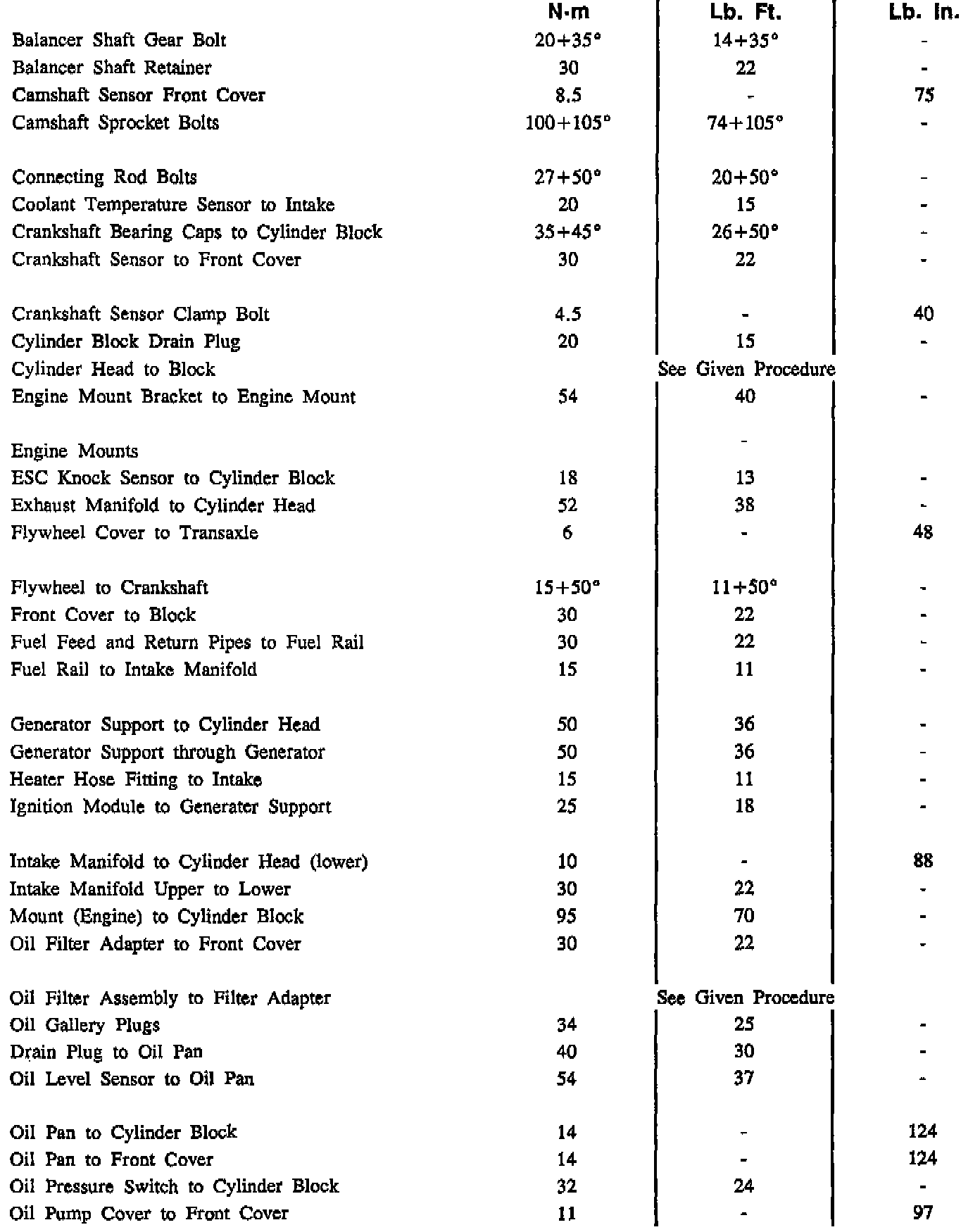

Torque Specifications:




Torque Specifications (continued):

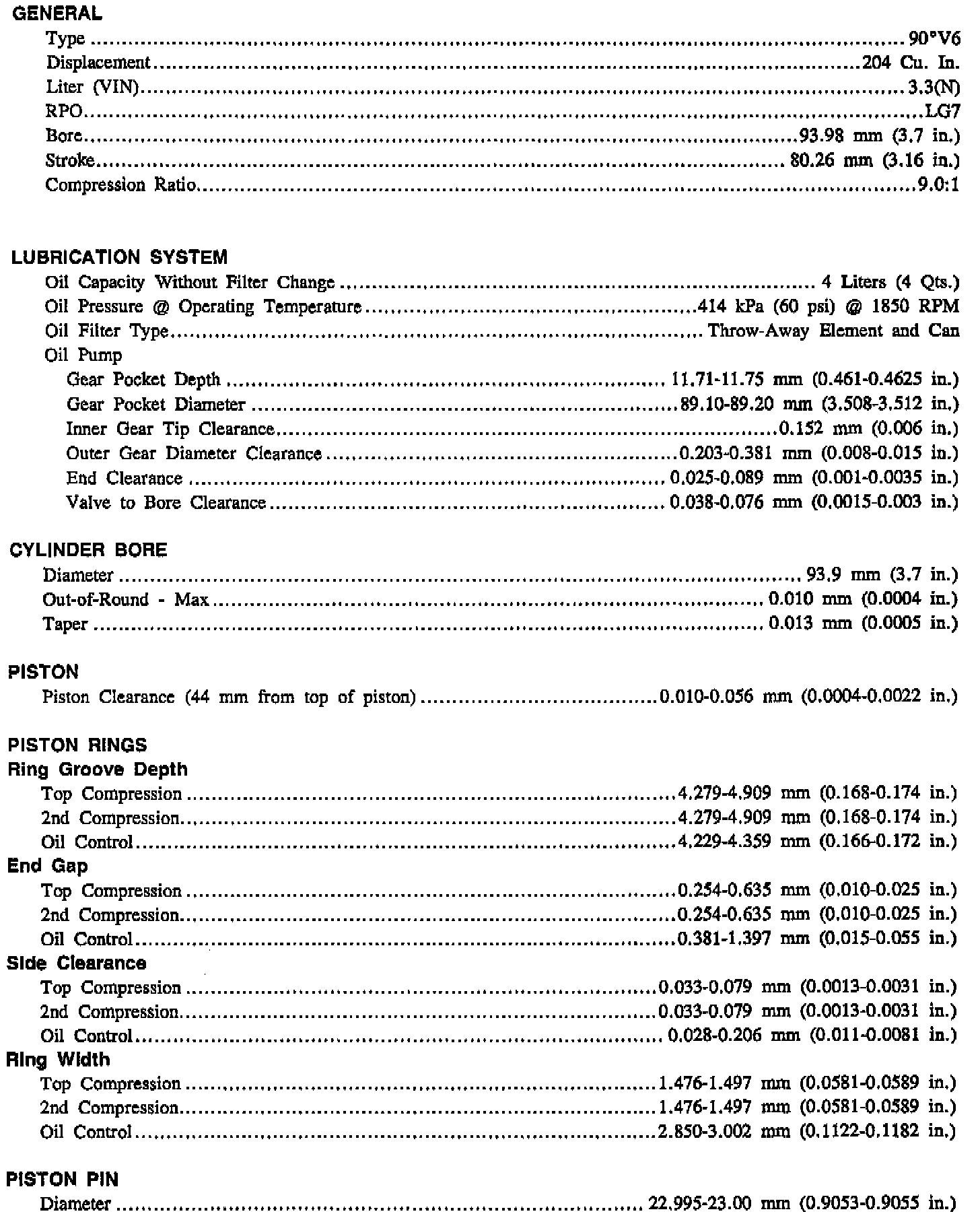

Engine Specifications:

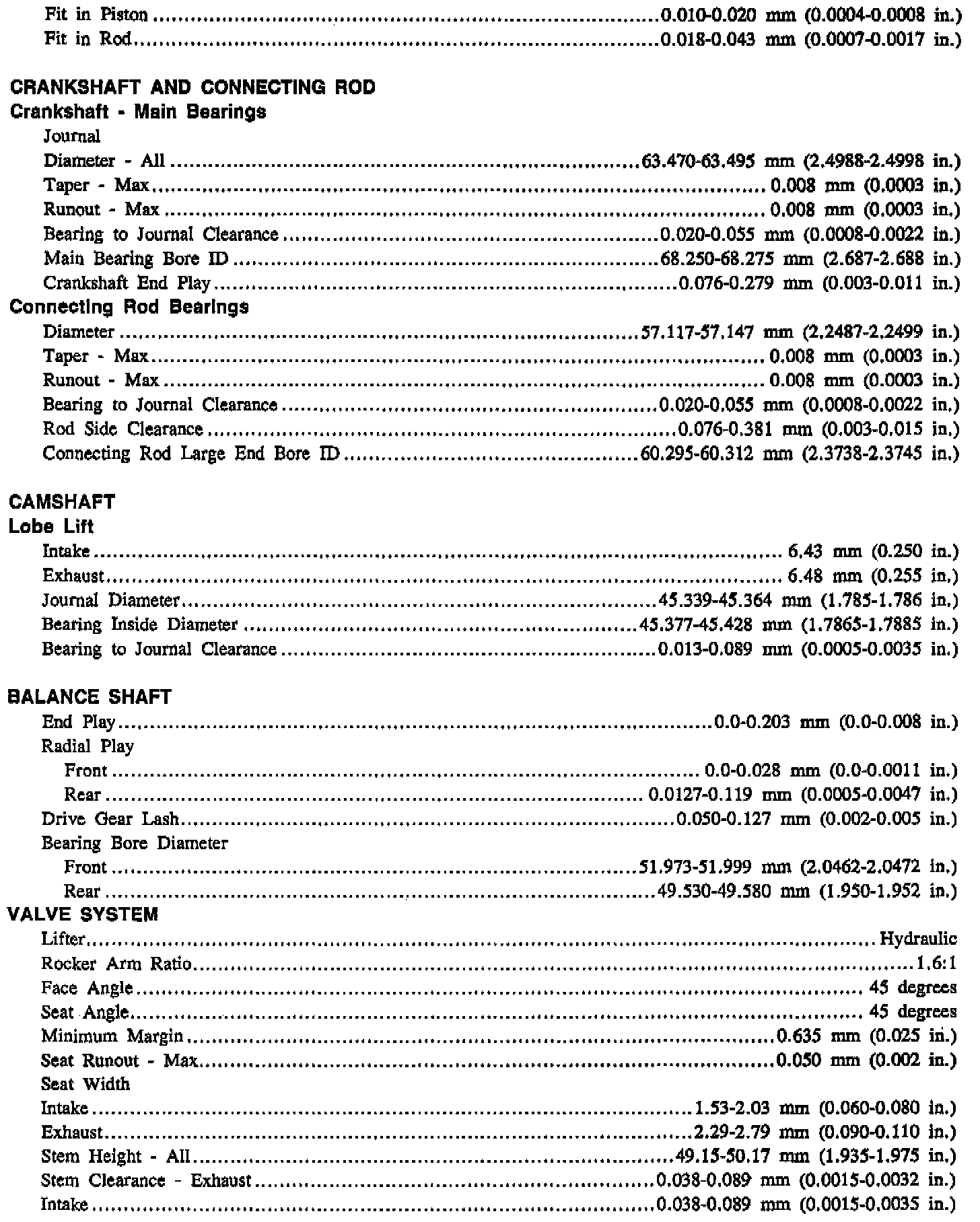

Engine Specifications (continued):




Engine Specifications (continued):






Cylinder Head Sequence And Specs:






Intake Manifold Sequence:
