Power Window Switch
Power Window Switch
LH Rear Window Switch Connector Face:
Master Switch Assembly (2 Door) Connector Face:

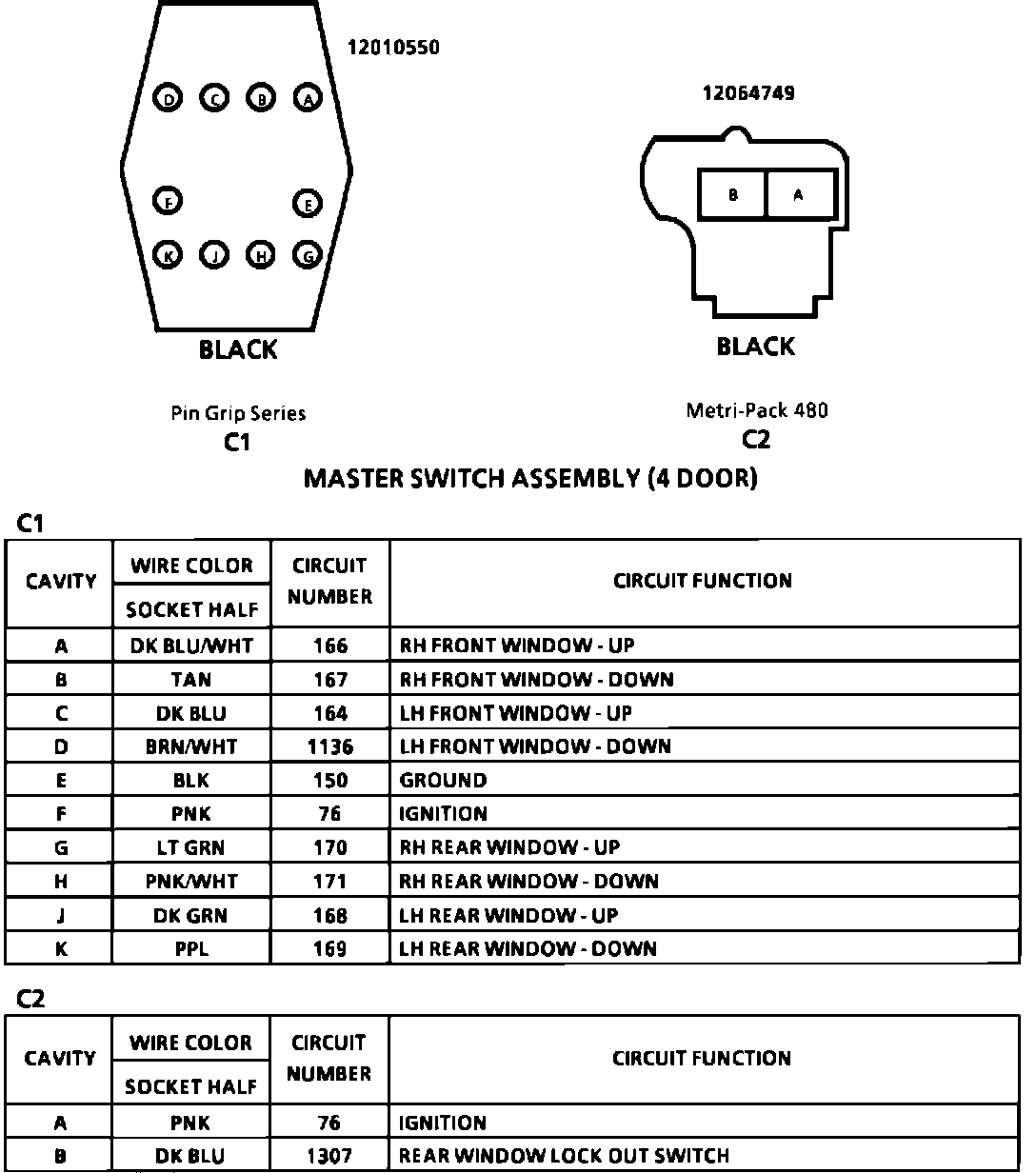

Master Switch Assembly (4 Door) Connector Face:
