Crankshaft Position Sensor: Locations

RH Front Of Engine.:




Lower Front Of Engine, Above Oil Filter

Applicable to 3.3L/V6-204

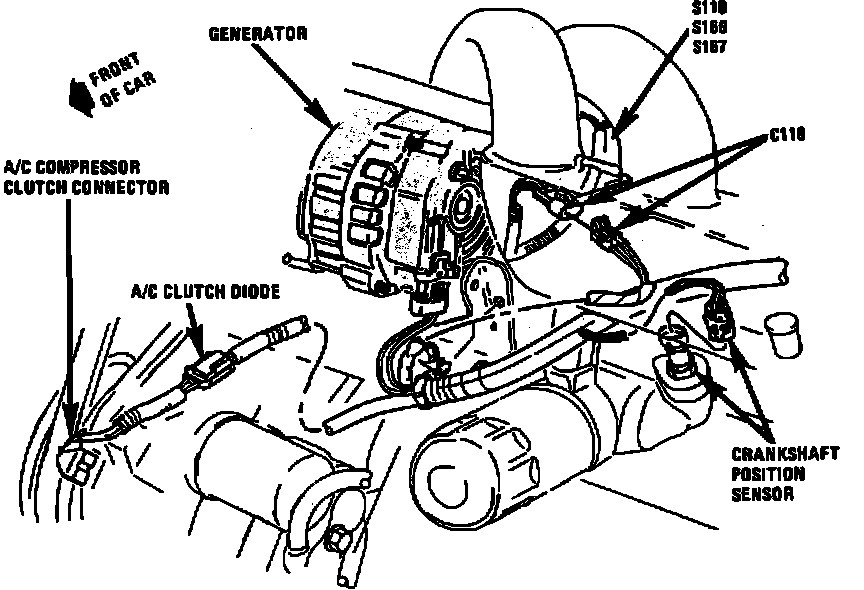

RH Front Of Engine.:




Lower Front Of Engine, Above Oil Filter

Applicable to 2.3L/4-138
