Electronic Spark Control Knock Sensor

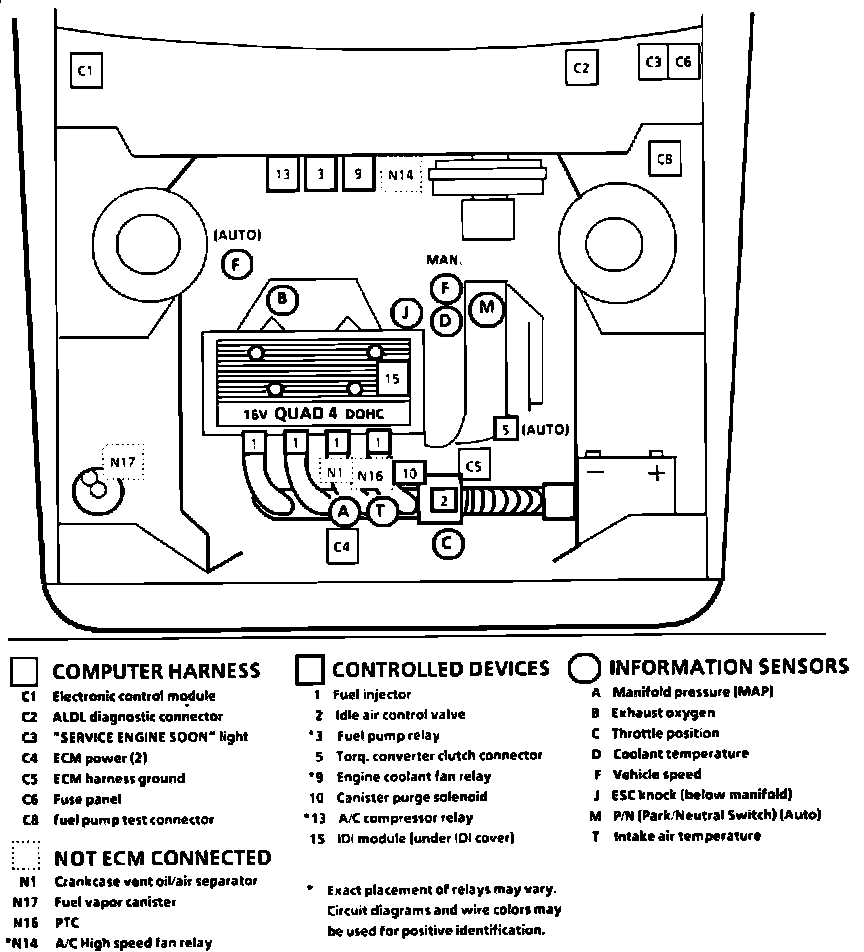

Engine Compartment Components.:




Top Center Of Engine

Applicable to: 2.3L/4-138

Engine Compartment Components.:




Top Center Of Engine

Applicable to: 3.3L/V6-204
