Home >> Oldsmobile >> 1991 >> Calais L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Trim Panel >> Front Doors

Front Doors

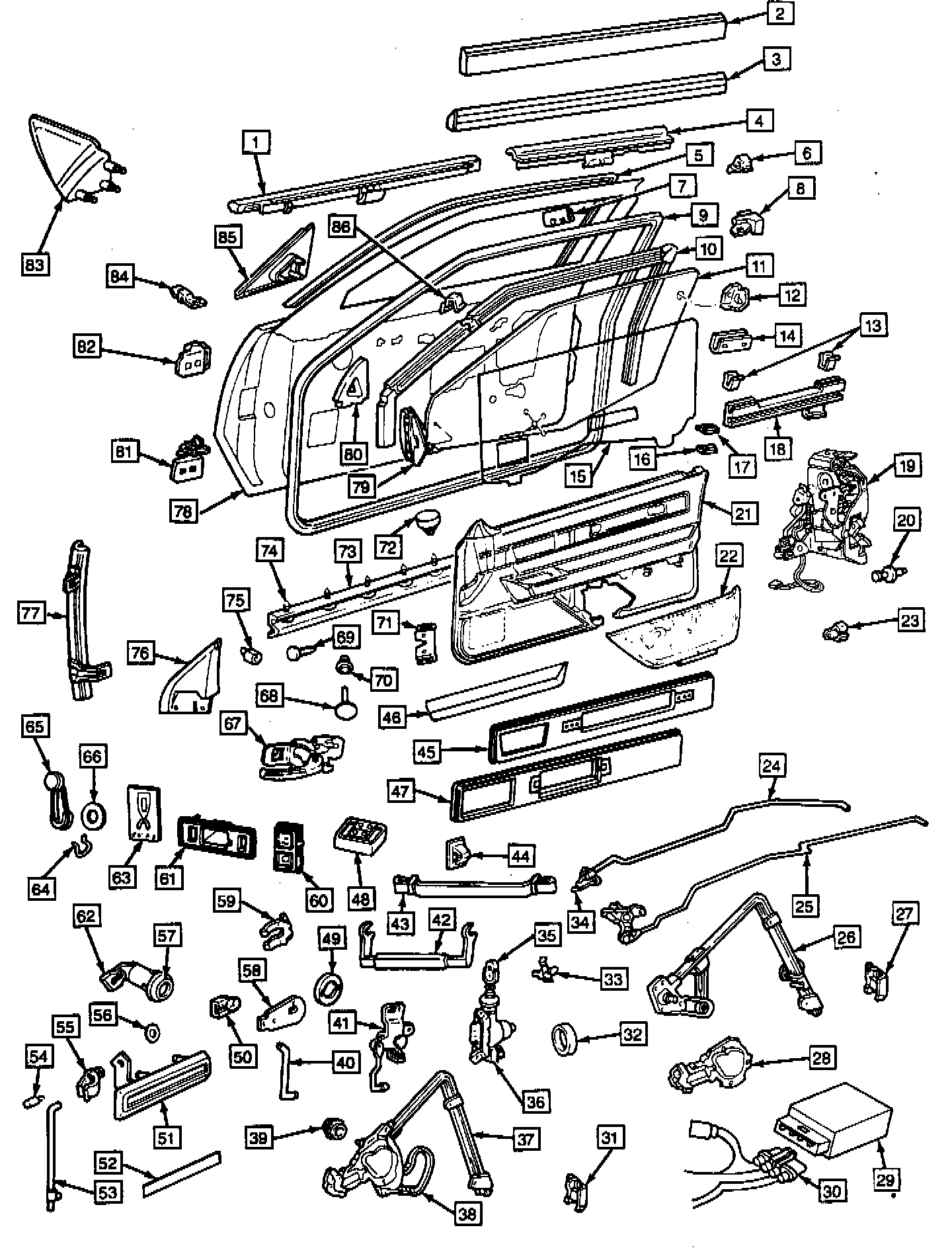

Front Doors (1 Of 2):

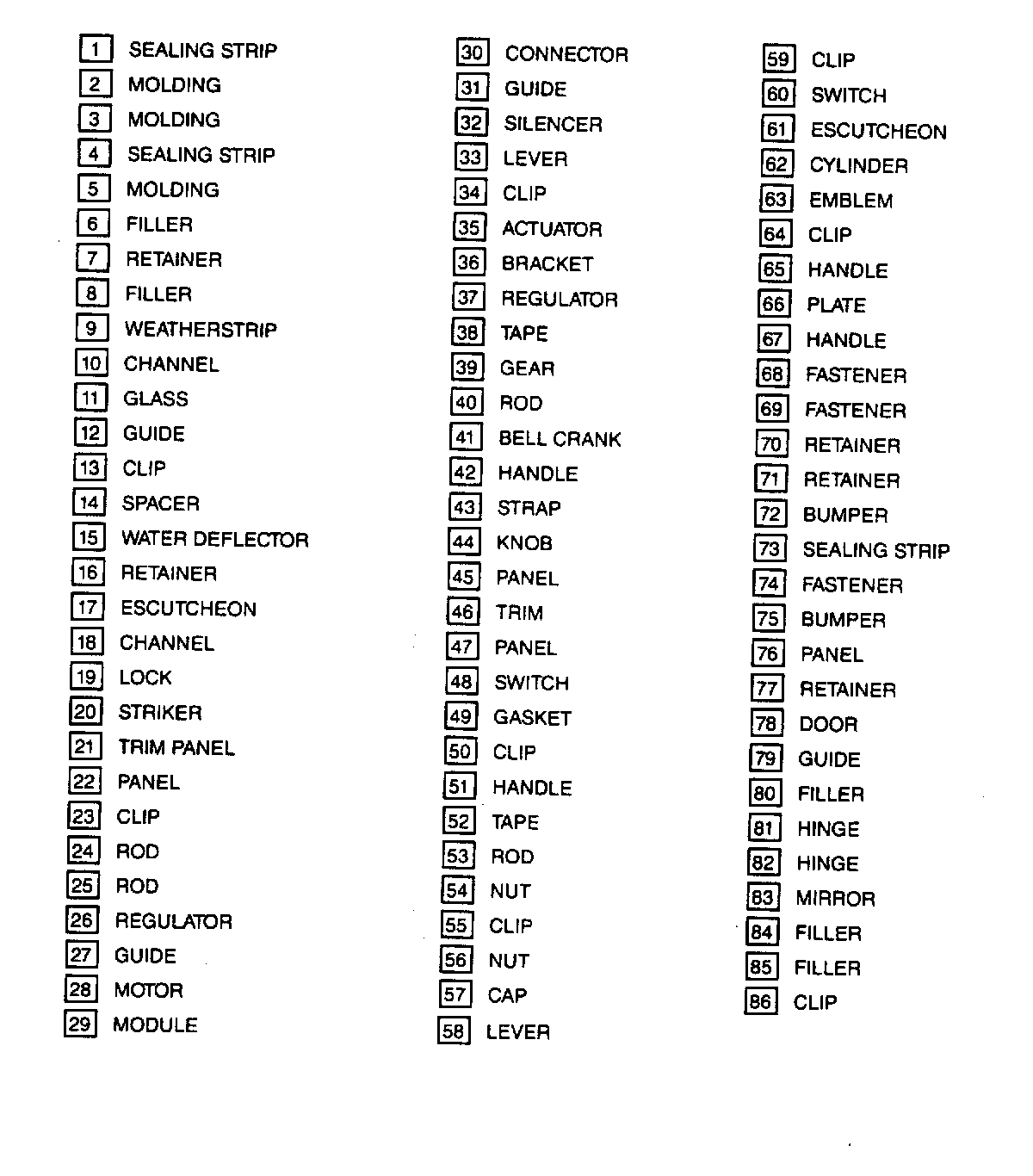

Front Doors - Legend (2 Of 2):
