LEMON Manuals
: Even more car manuals for everyone
Home
>>
Oldsmobile
>>
1991
>>
Calais L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Doors
>>
System Diagram
System Diagram

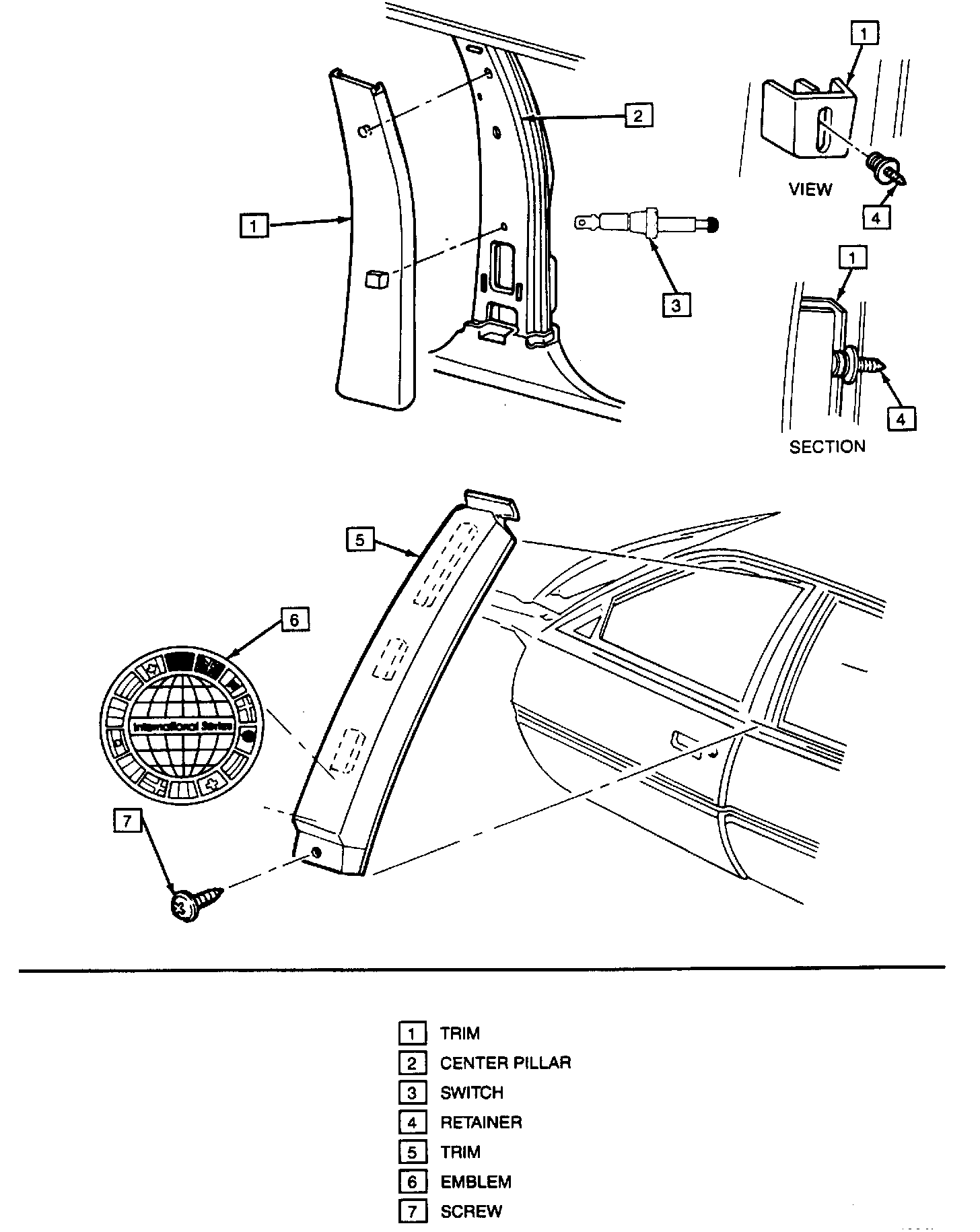

Center Pillar:
