Electronic Brake Control Module

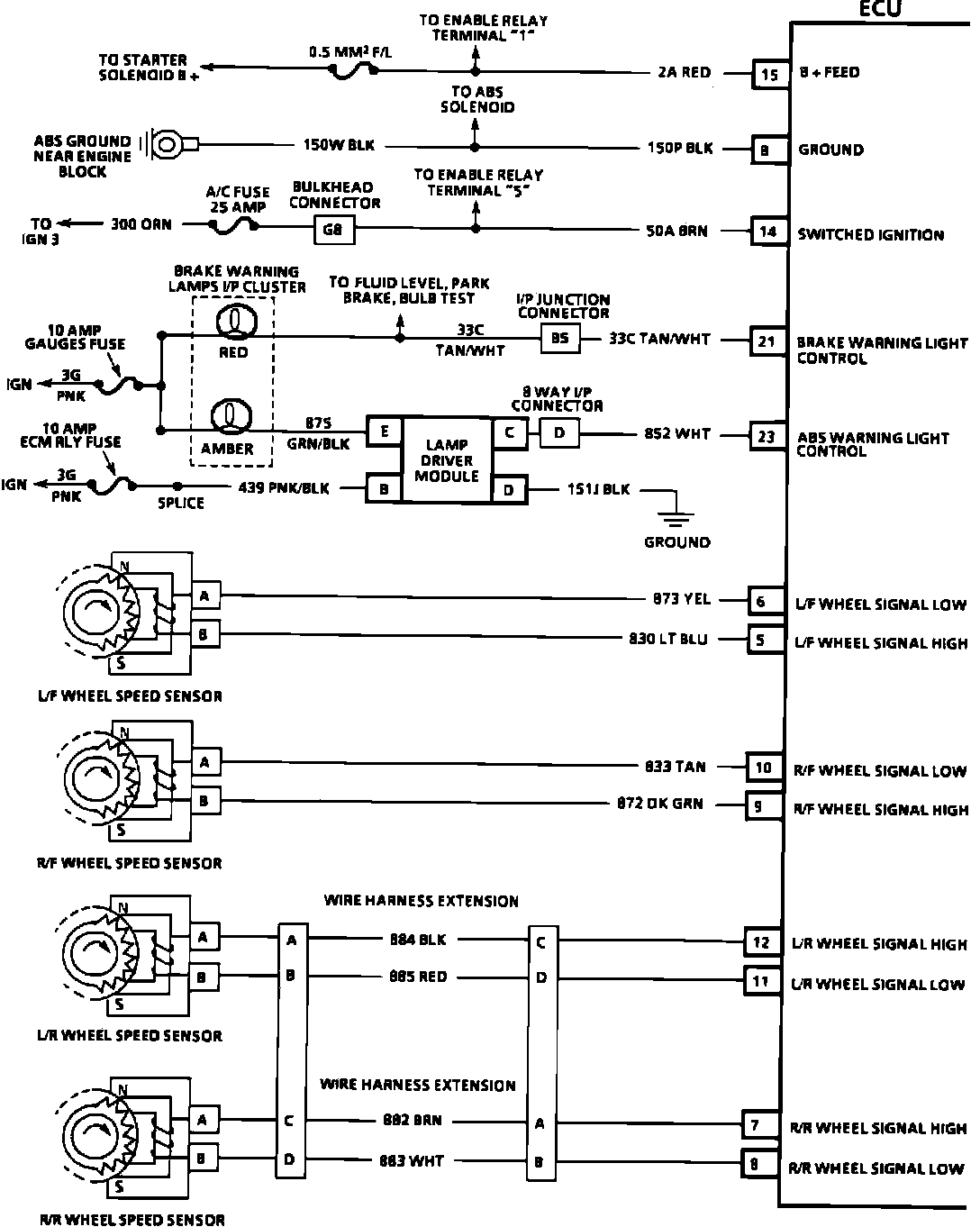

Fig. 2 ABS System Wiring Circuit (Part 1 Of 2):

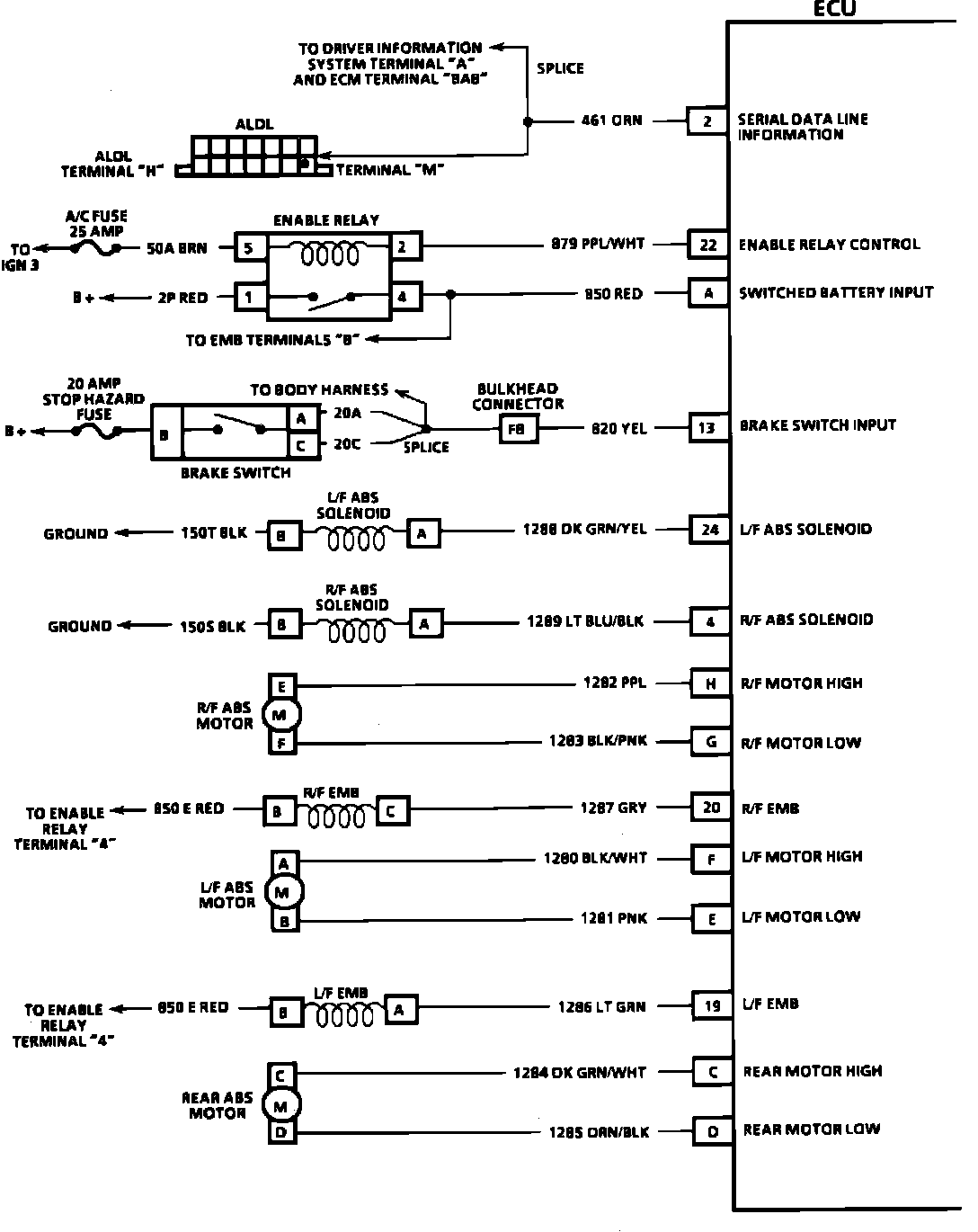

Fig. 2 ABS System Wiring Circuit (Part 2 Of 2):
