Test F: Power Window Only Operates From Master Power Window Switch

If power window only operates from master power window switch, see Fig 1 .

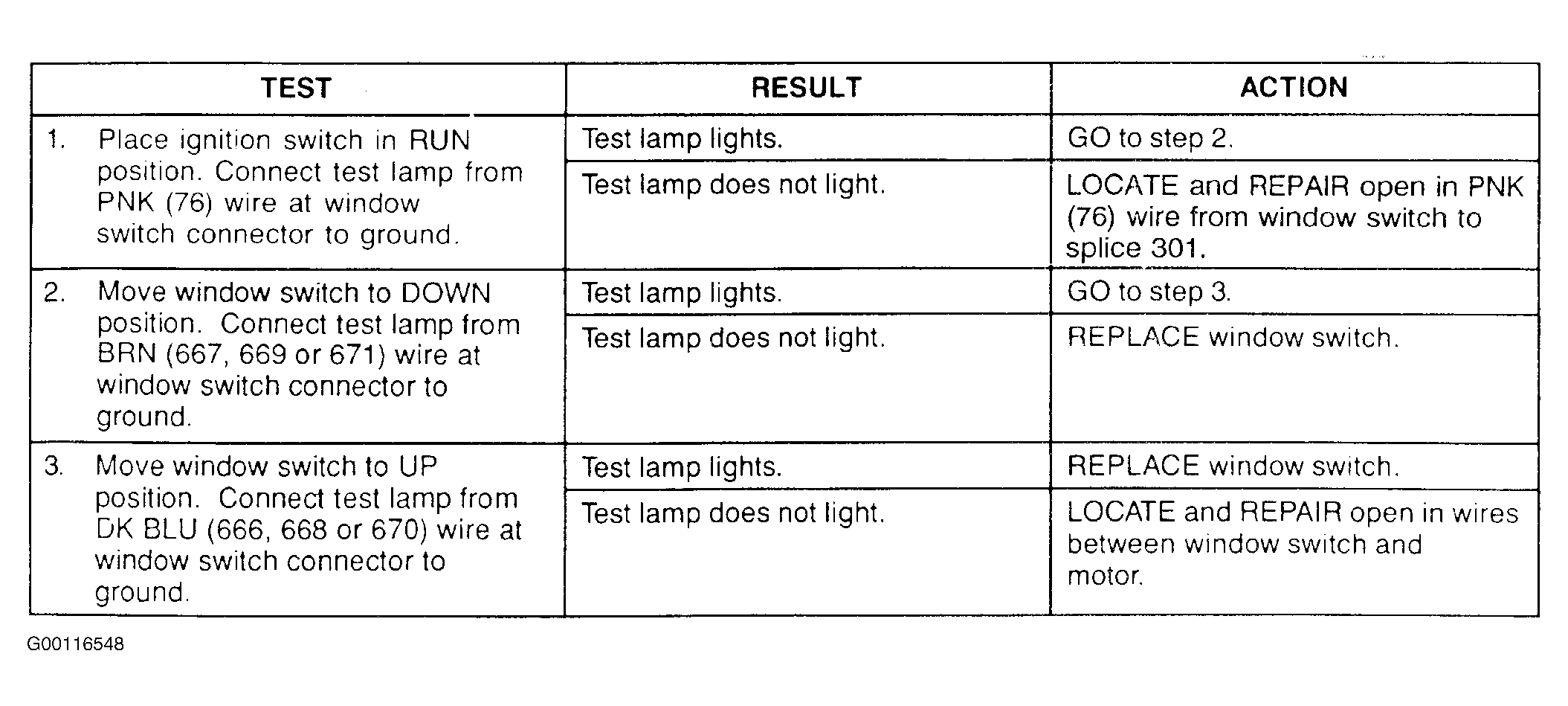

Fig 1: Test F: Power Window Only Operates From Master Power Window Switch
G00116548Courtesy of GENERAL MOTORS CORP.
