Manifold Pressure/Vacuum Sensor: Locations

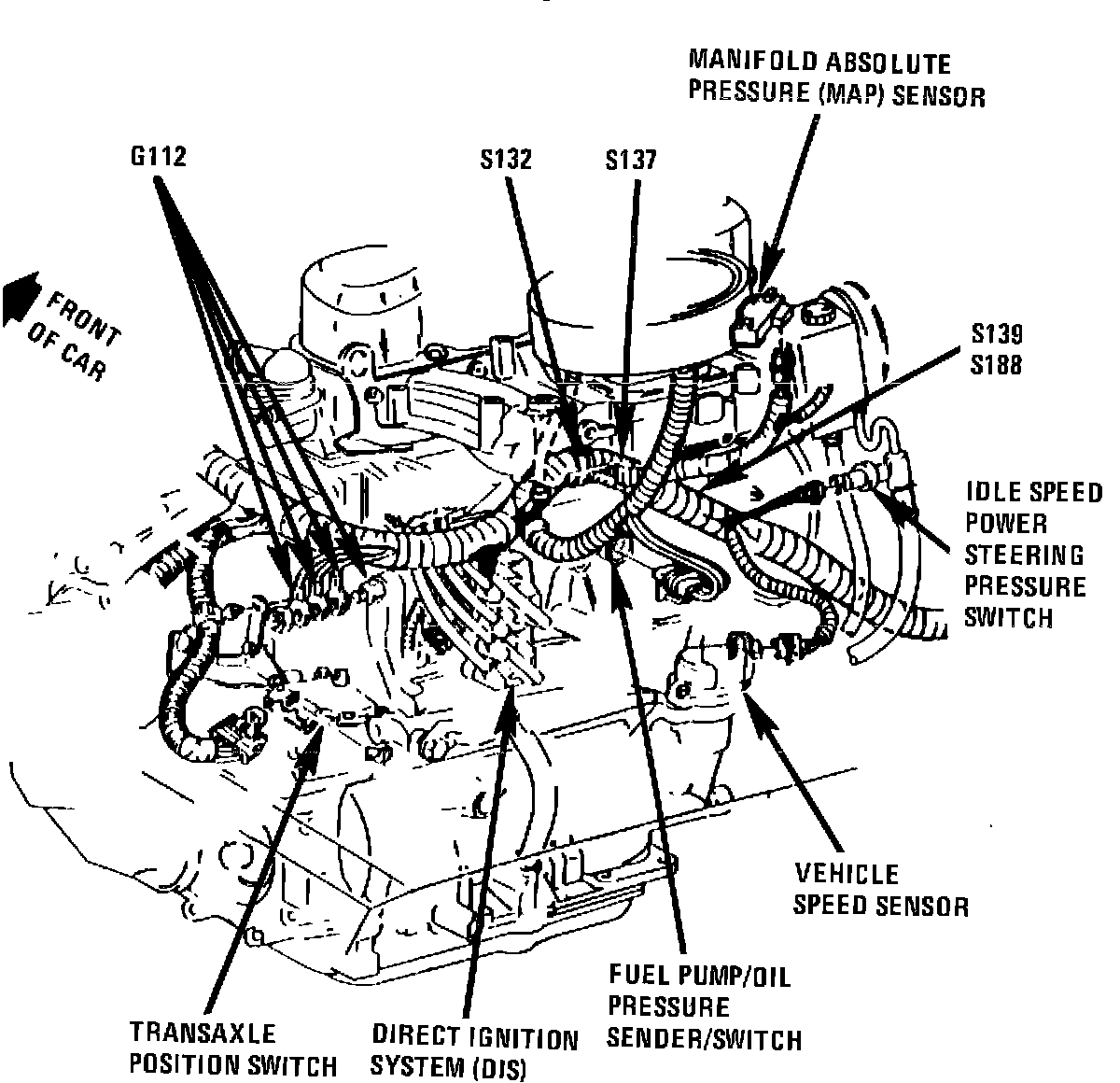

Component Location View Rear of VIN R Engine:

The Manifold Absolute Pressure (MAP) Sensor is located on the top of engine, on RH side of air filter assembly.
