Compressor Mounting Exploded View

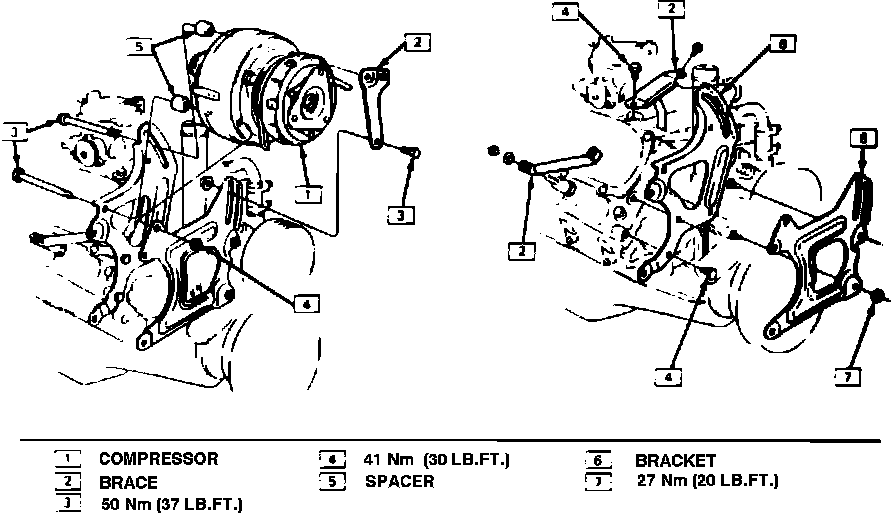

Fig. 8 Compressor mounting. Custom Cruiser, Estate Wagon, Caprice & Monte Carlo w/V8 engine:
