Home
>>
Oldsmobile
>>
1988
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

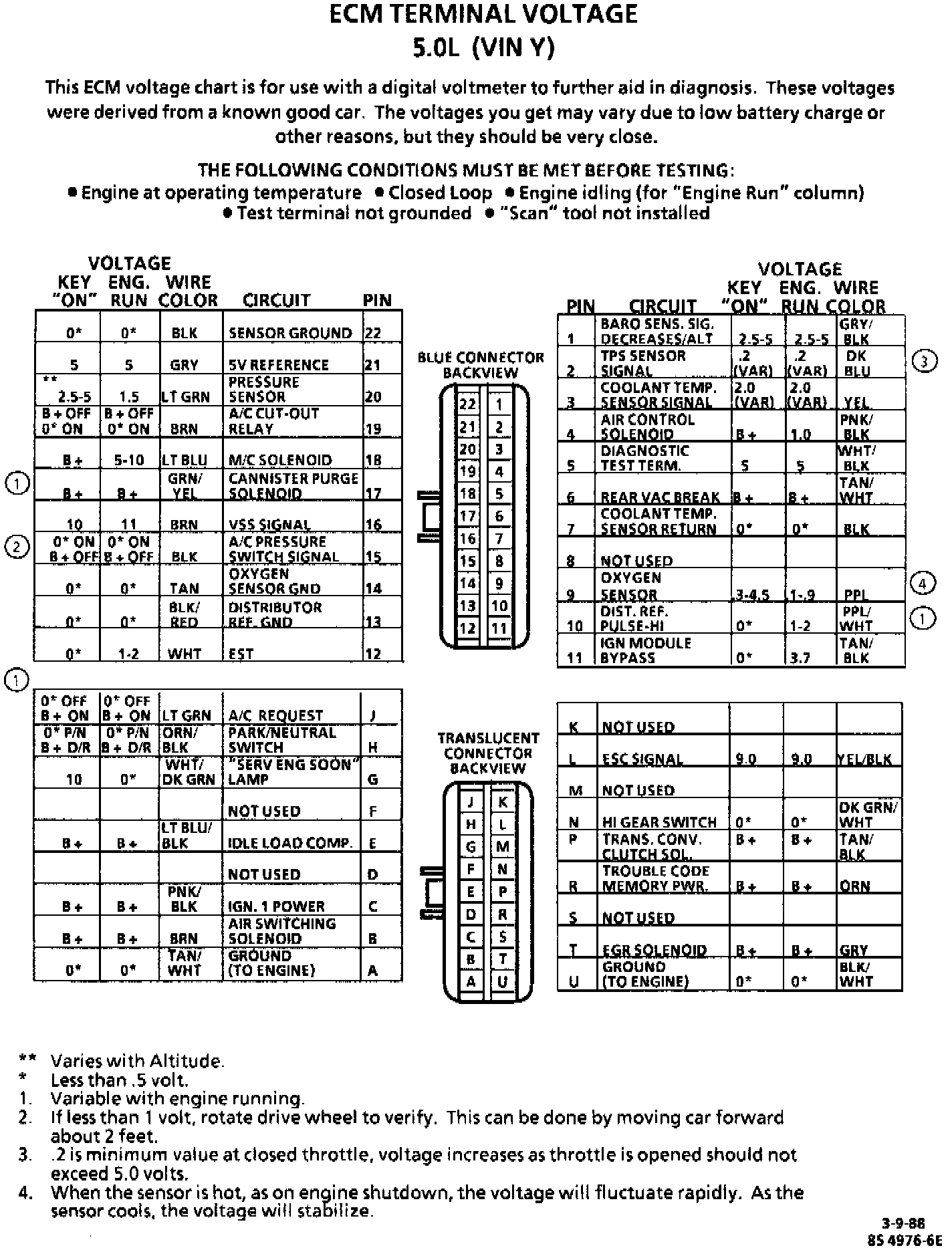

ECM Terminal Voltage 5.0L (VIN Y):
