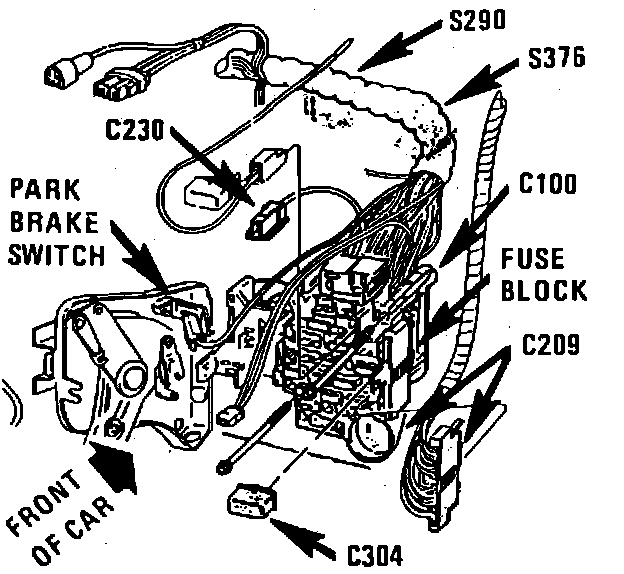

Fuse Block

Behind LH Side Of I/P.:




Behind LH Side Of I/P

Applicable to: Custom Cruiser, Fleetwood Brougham, Safari Wagon & Estate Wagon
