Exhaust Gas Recirculation: Testing and Inspection

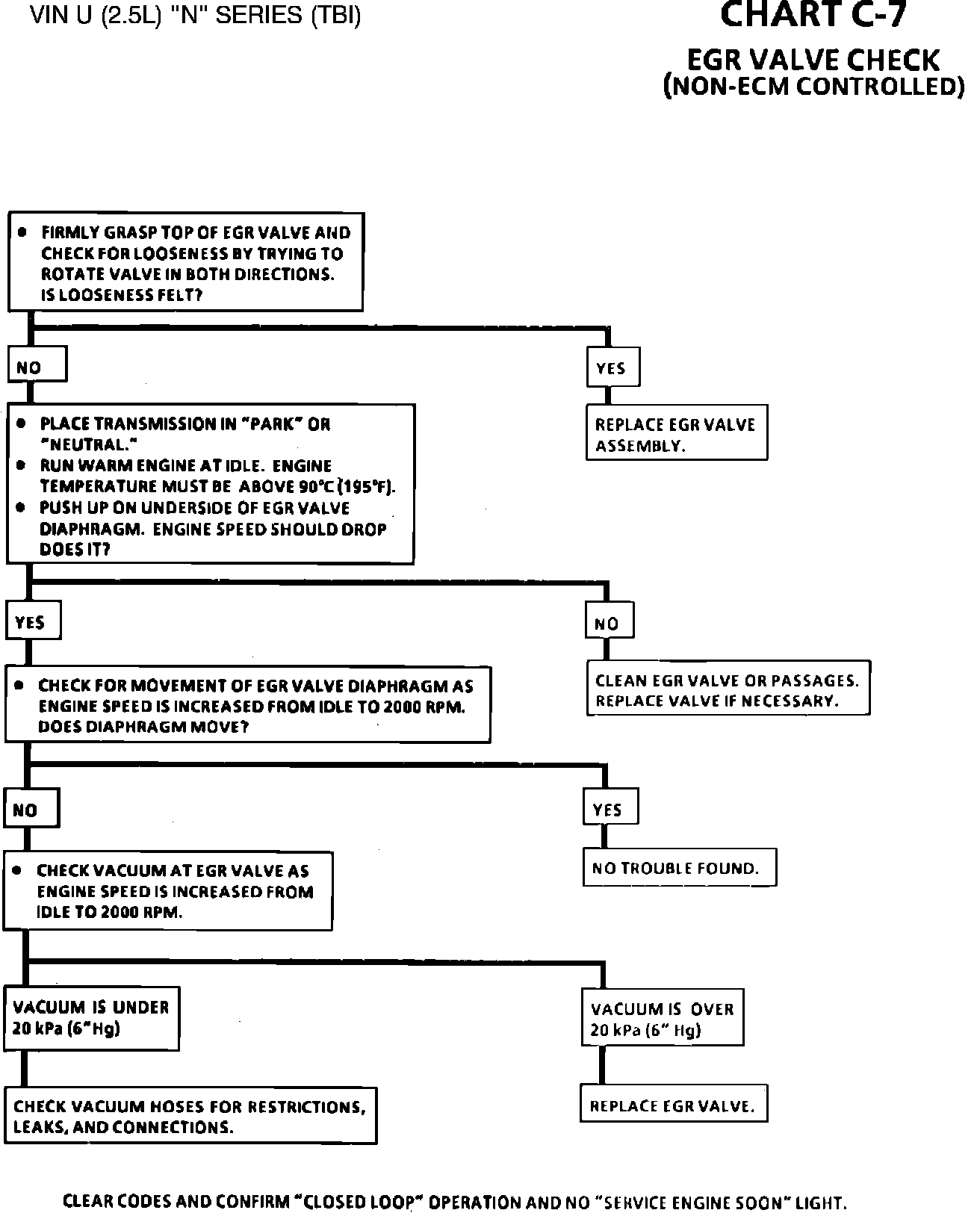

Fig. 083 Chart C-7 EGR Valve Check Non-ECM Controlled:
