Starting and Charging: Specifications

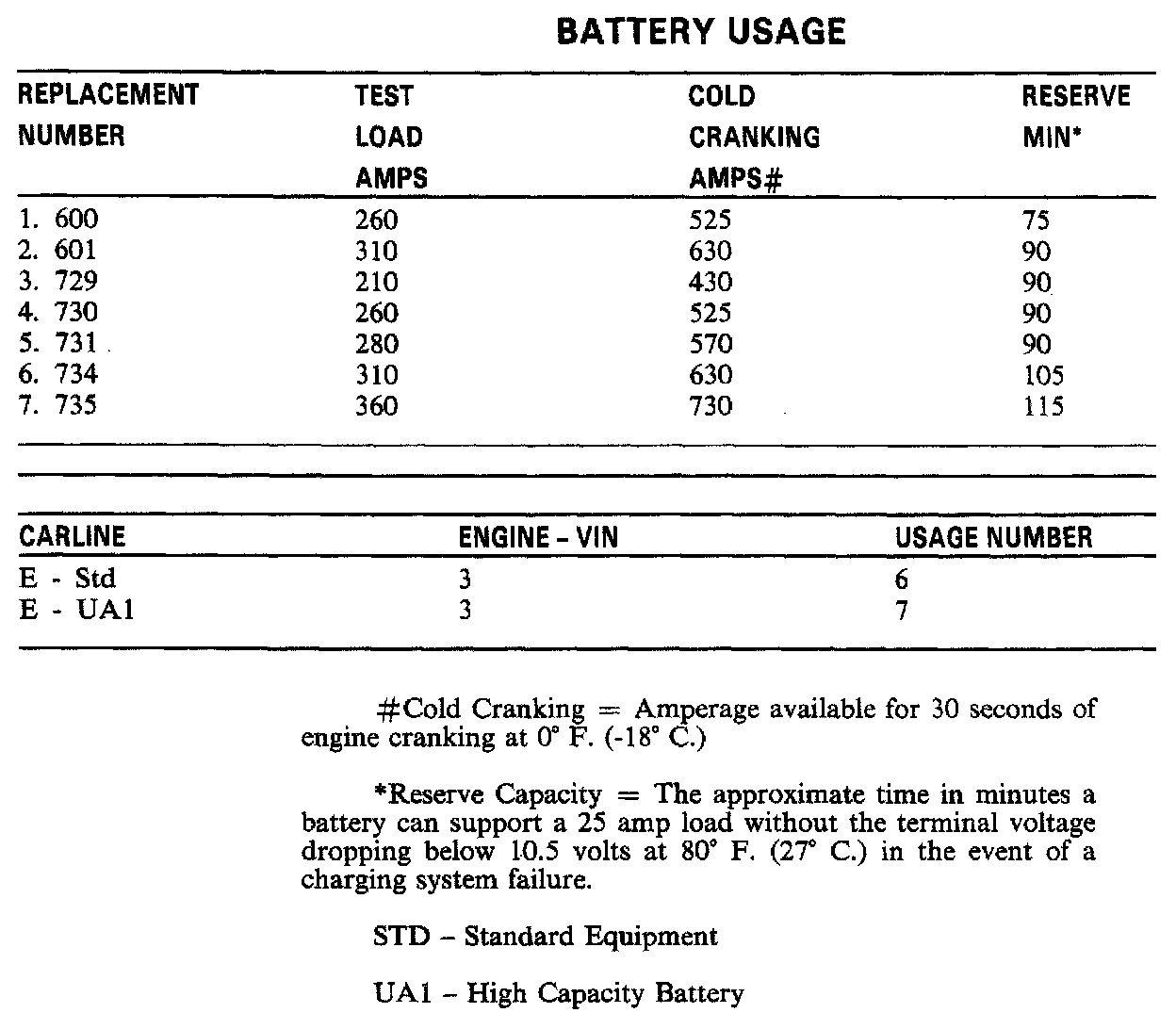

BATTERY SPECIFICATIONS





ALTERNATOR SPECIFICATIONS

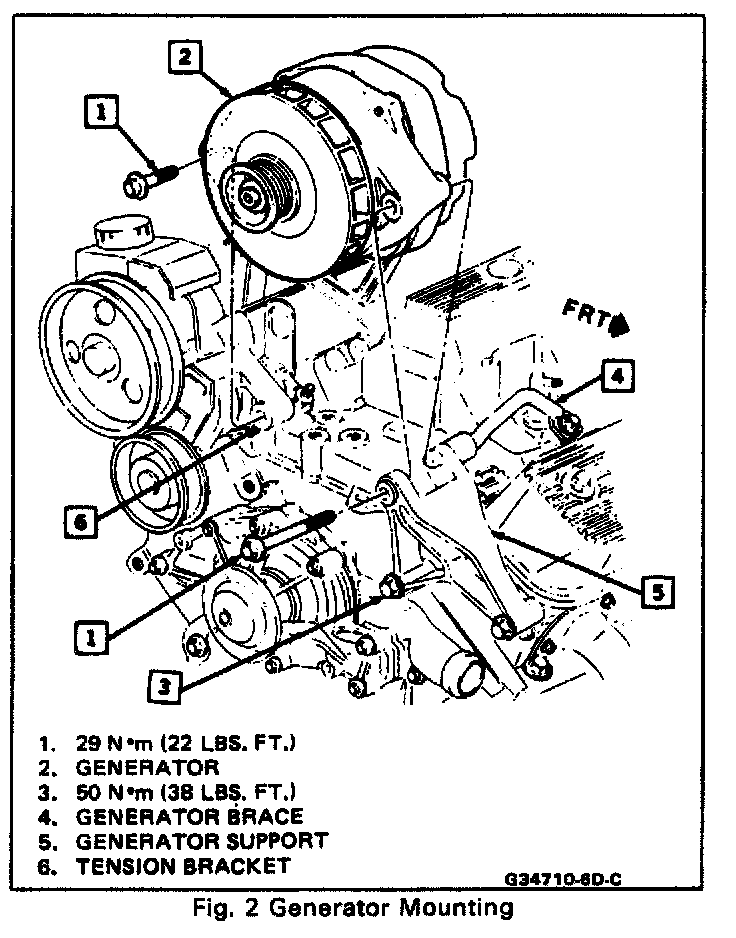

ALTERNATOR TORQUE SPECIFICATIONS





STARTER SPECIFICATIONS

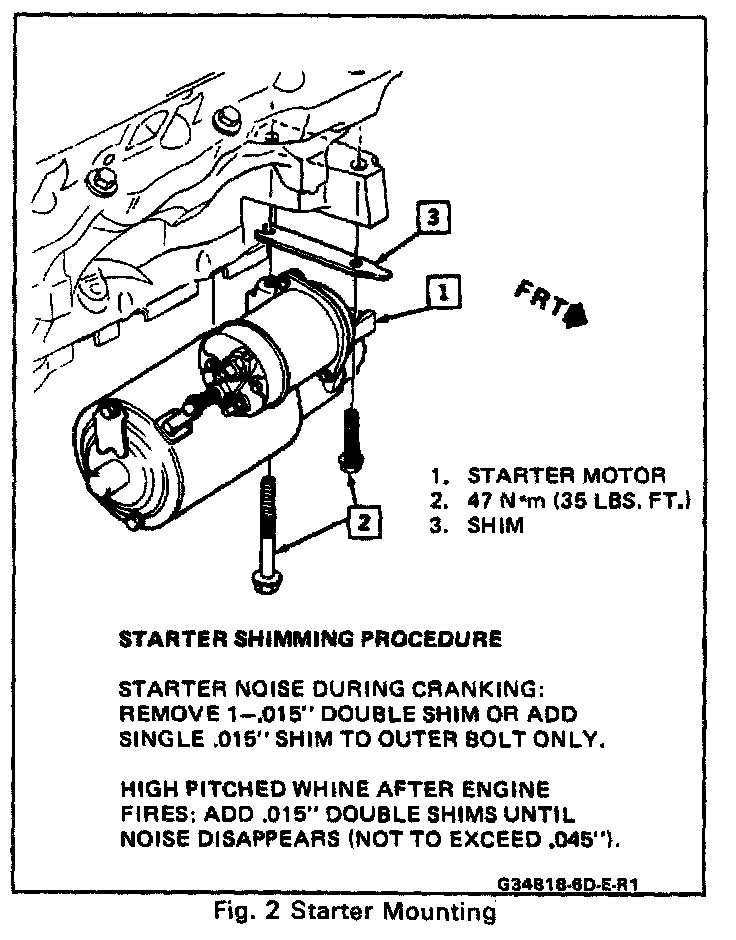

STARTER TORQUE SPECIFICATIONS
