Starting and Charging

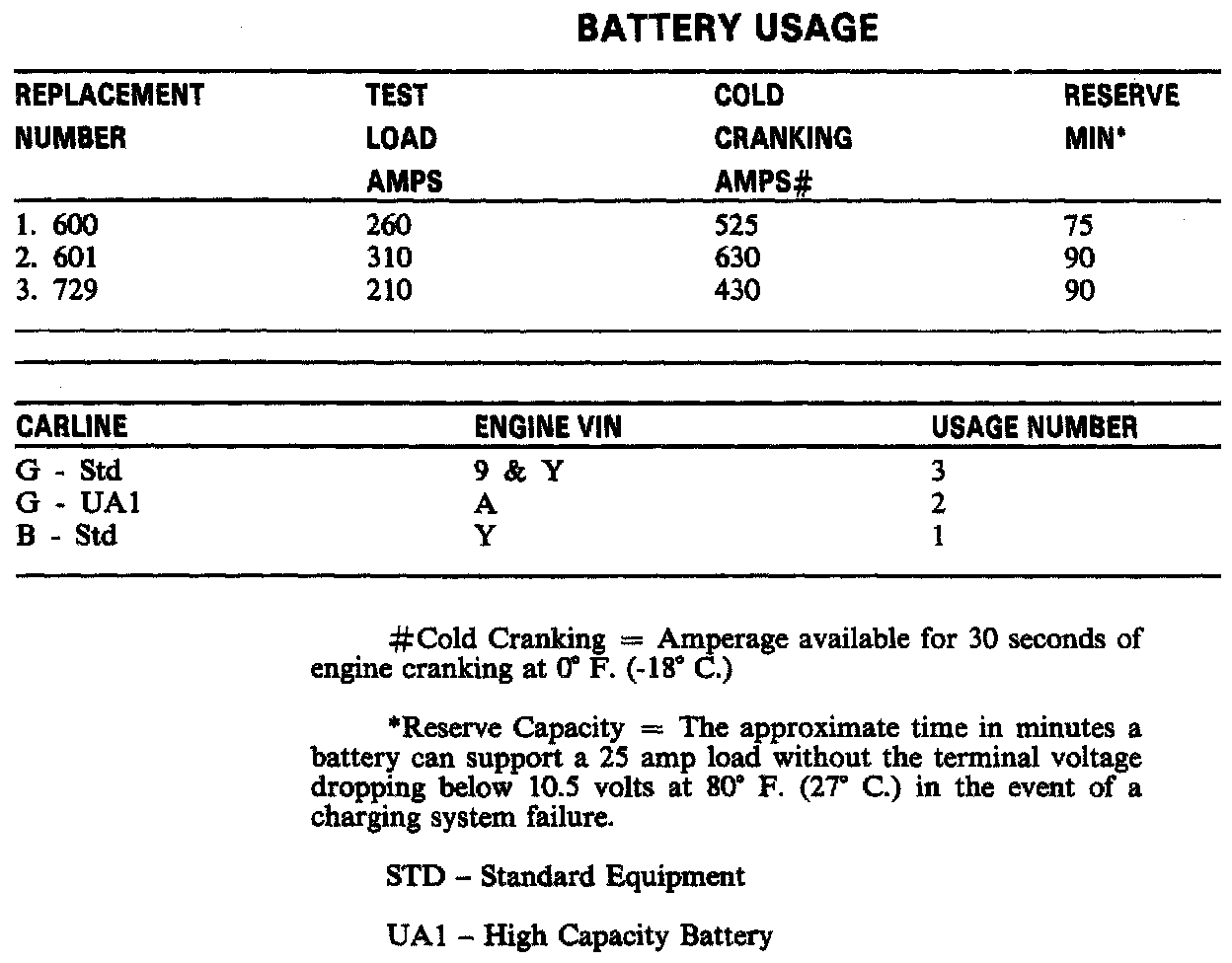

BATTERY SPECIFICATIONS





ALTERNATOR SPECIFICATIONS

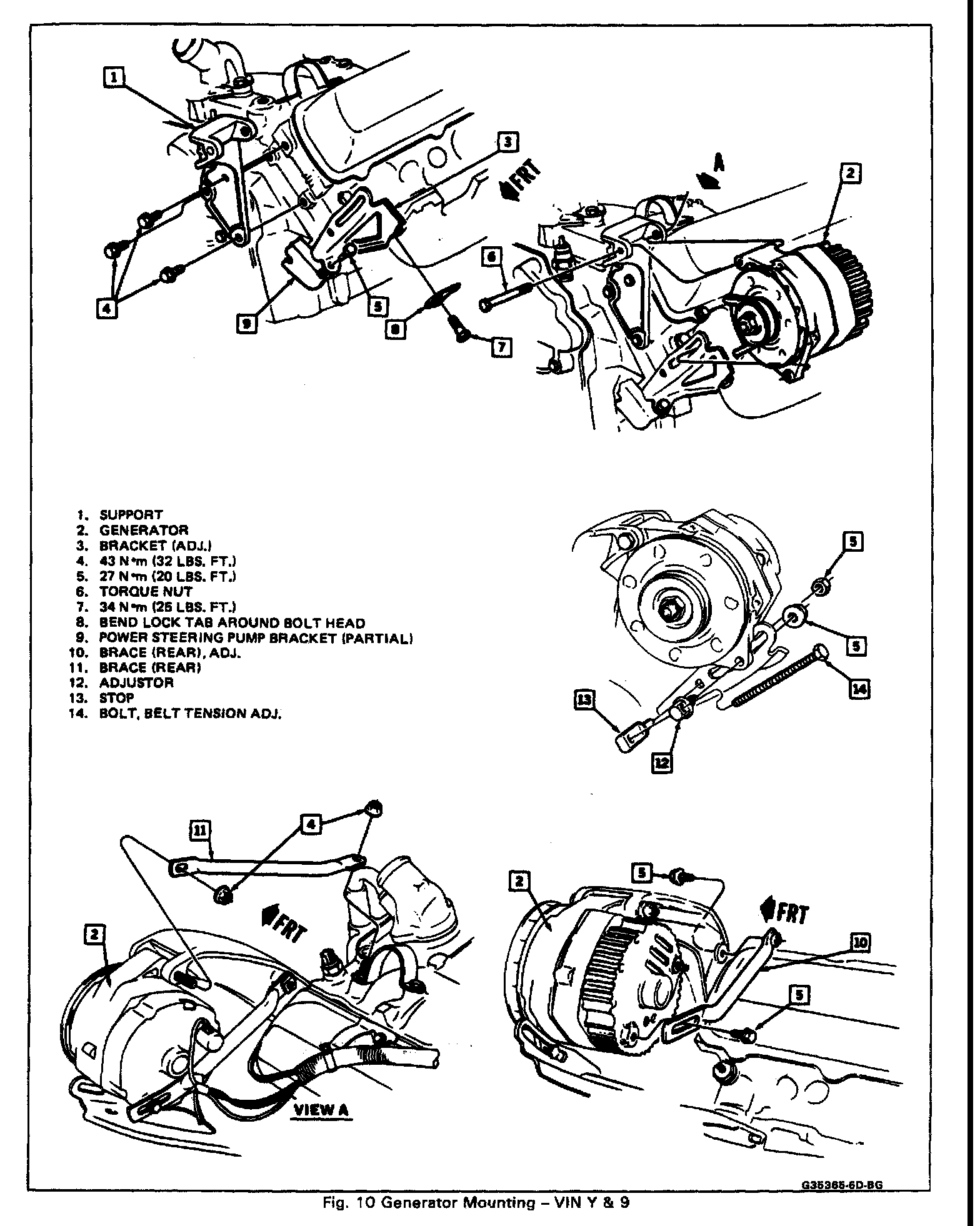

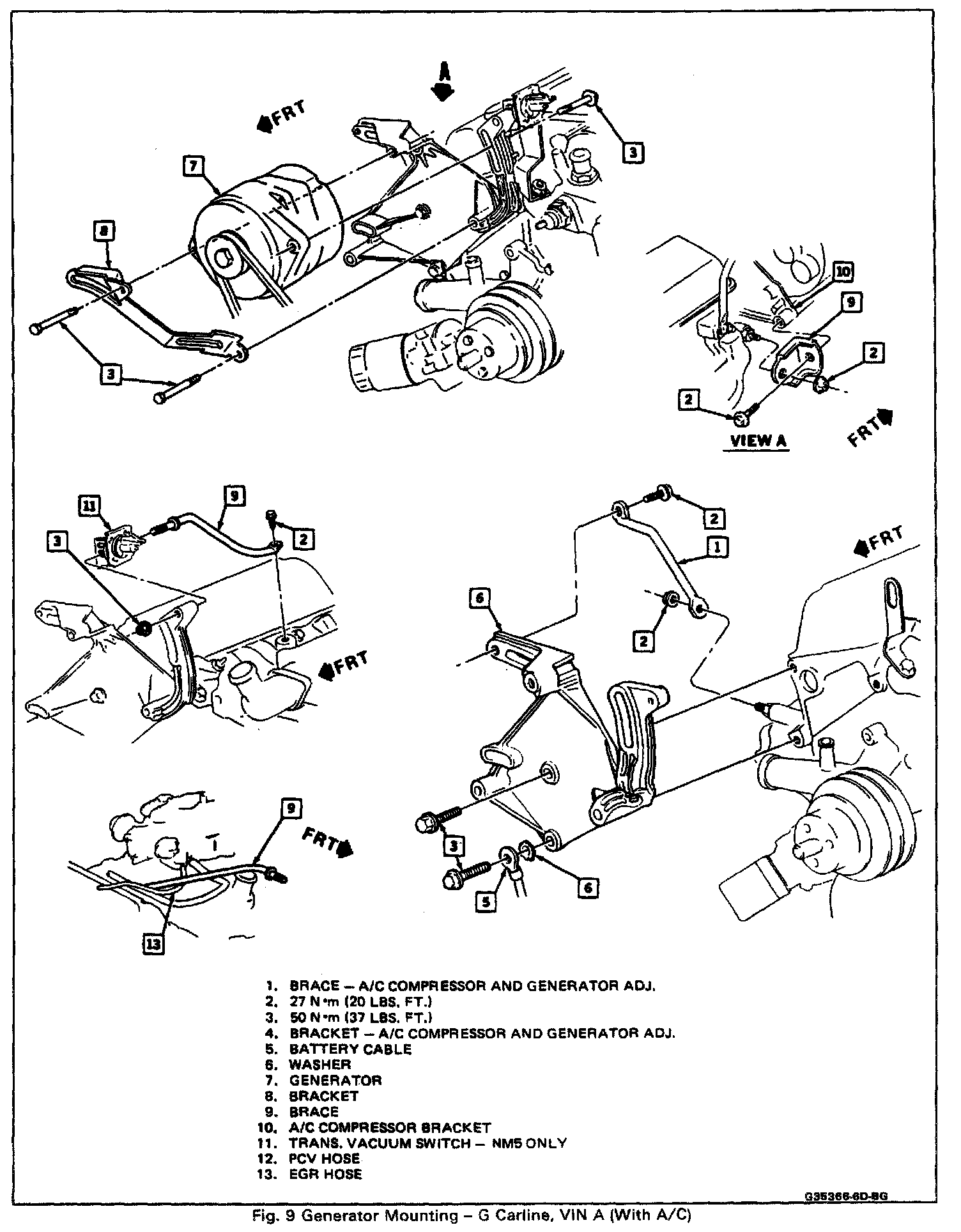

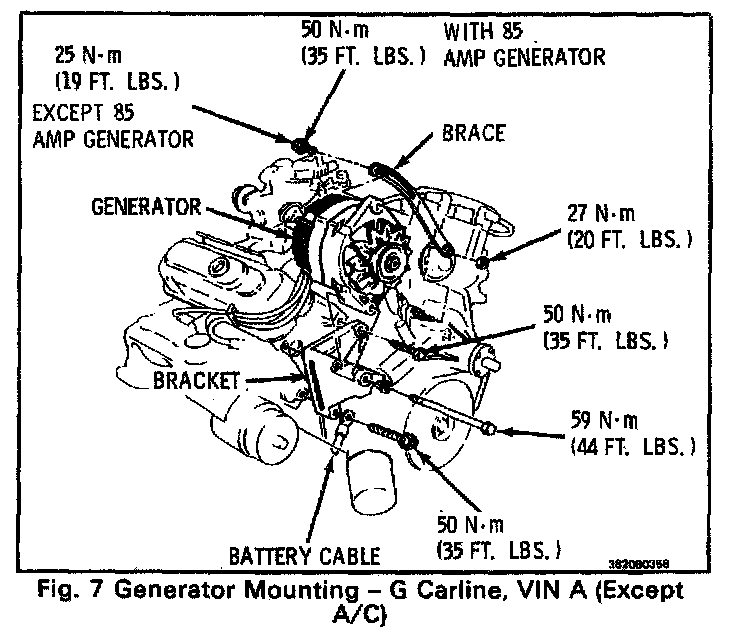

ALTERNATOR TORQUE SPECIFICATIONS

I Of III:





II Of III:





III Of III:





STARTER SPECIFICATIONS

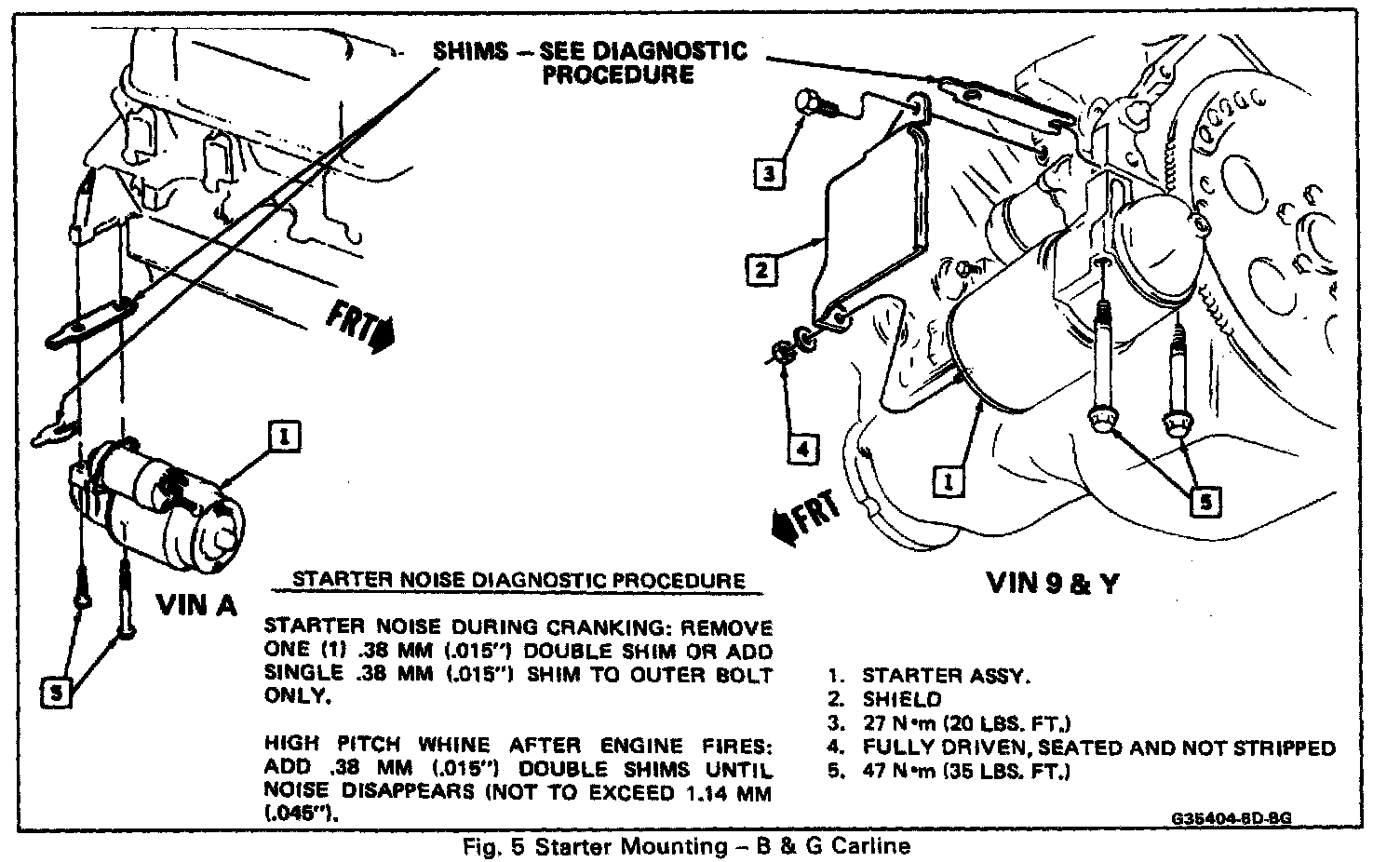

STARTER TORQUE SPECIFICATIONS
