Toronado V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

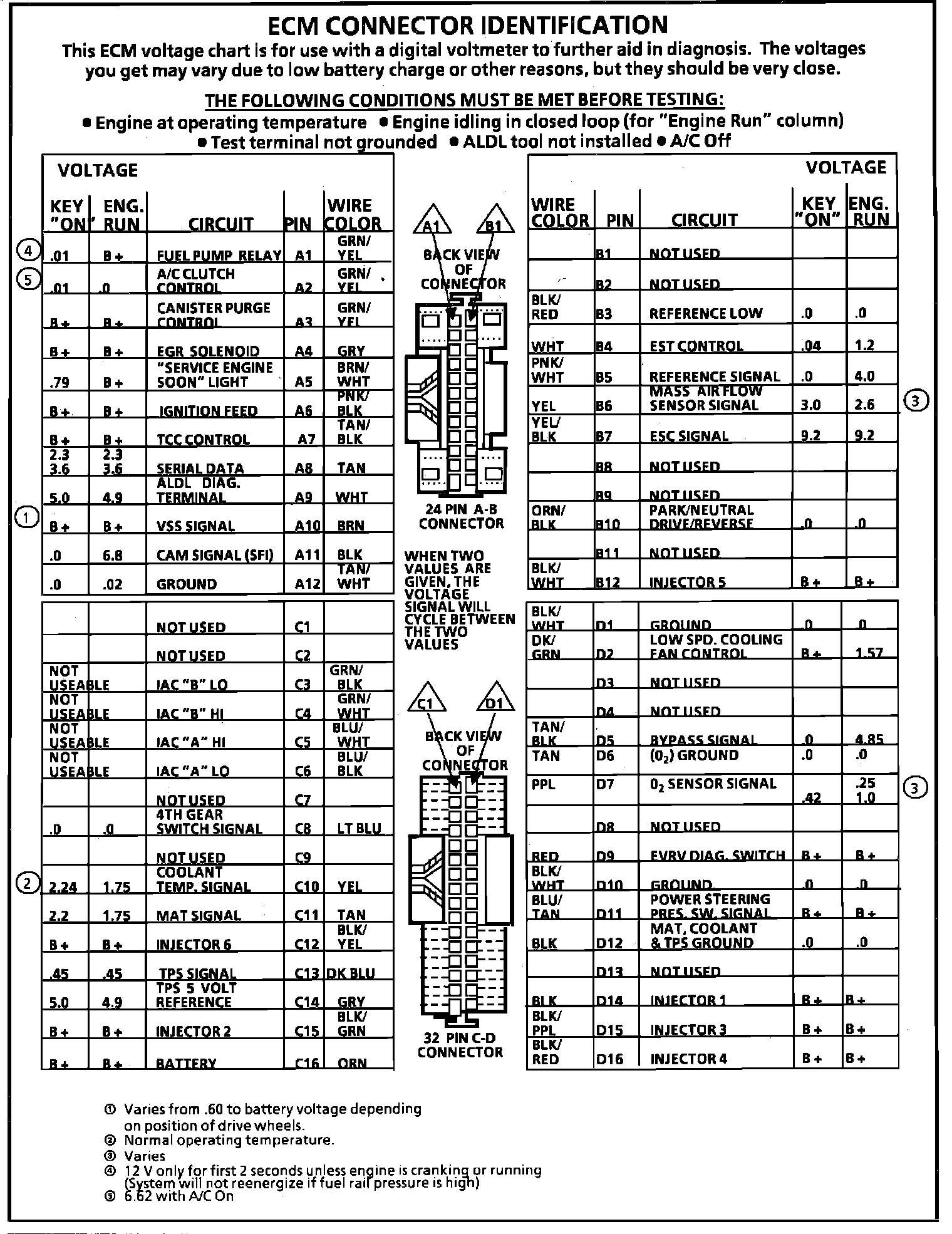

ECM Terminal Identification & Voltage Specifications:
