System Specifications

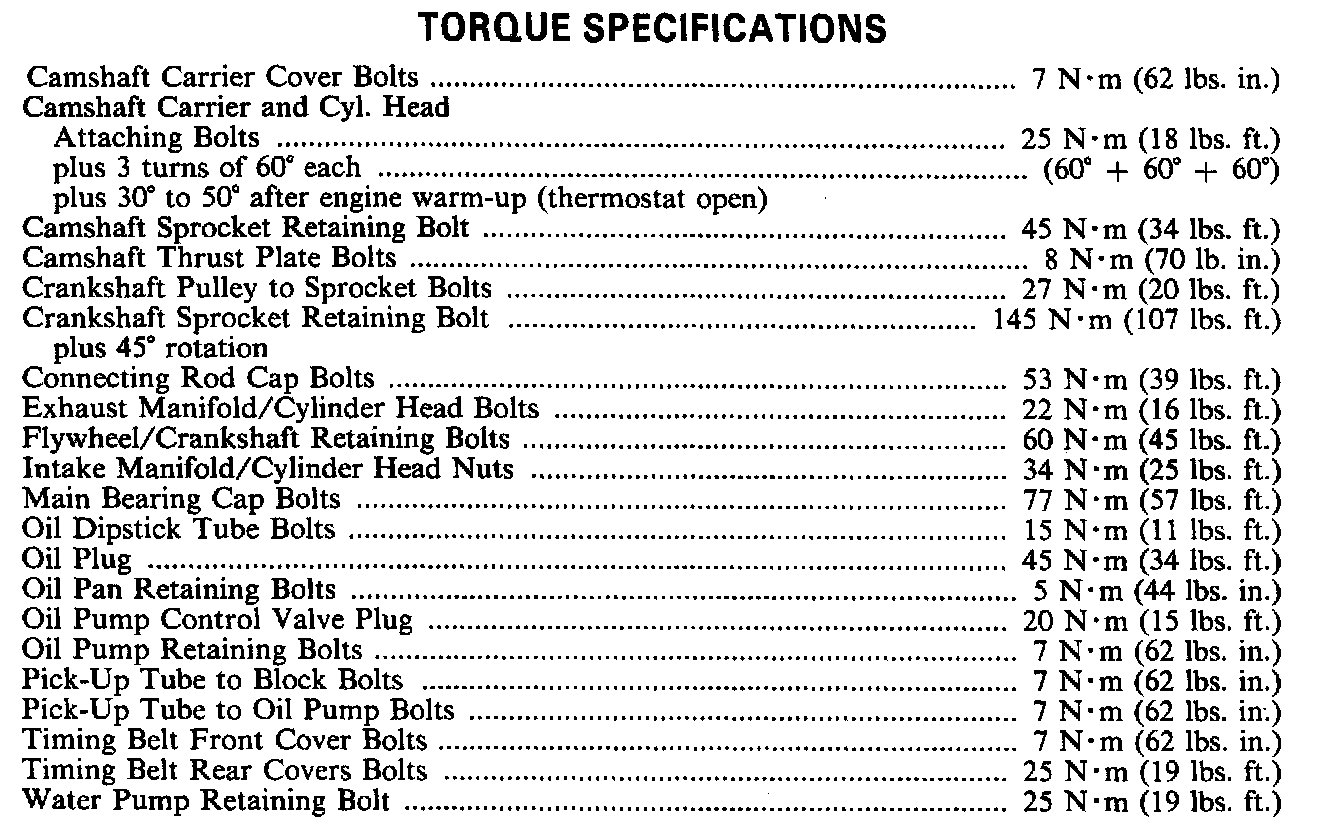

Torque Specifications:

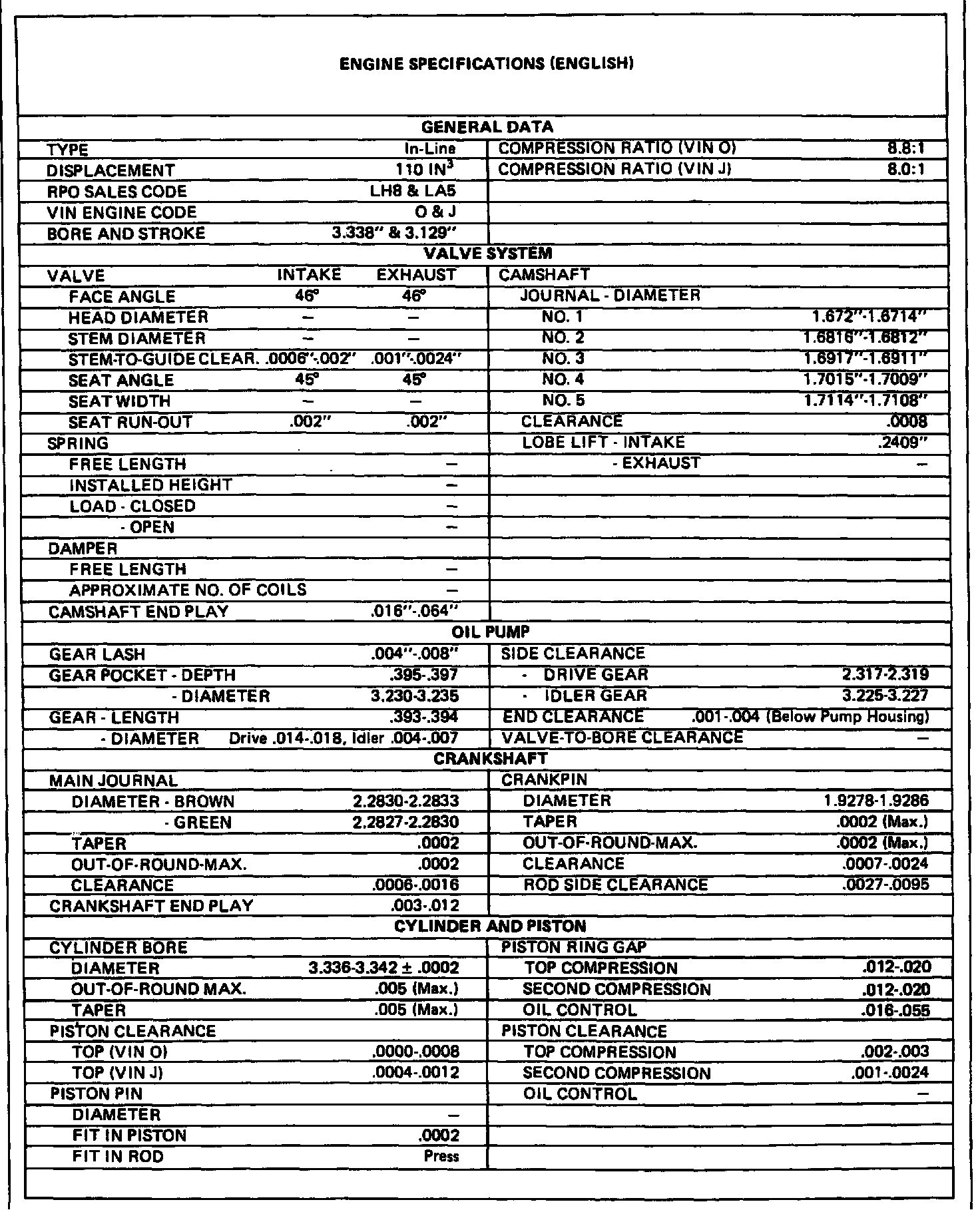

Engine Specifications:

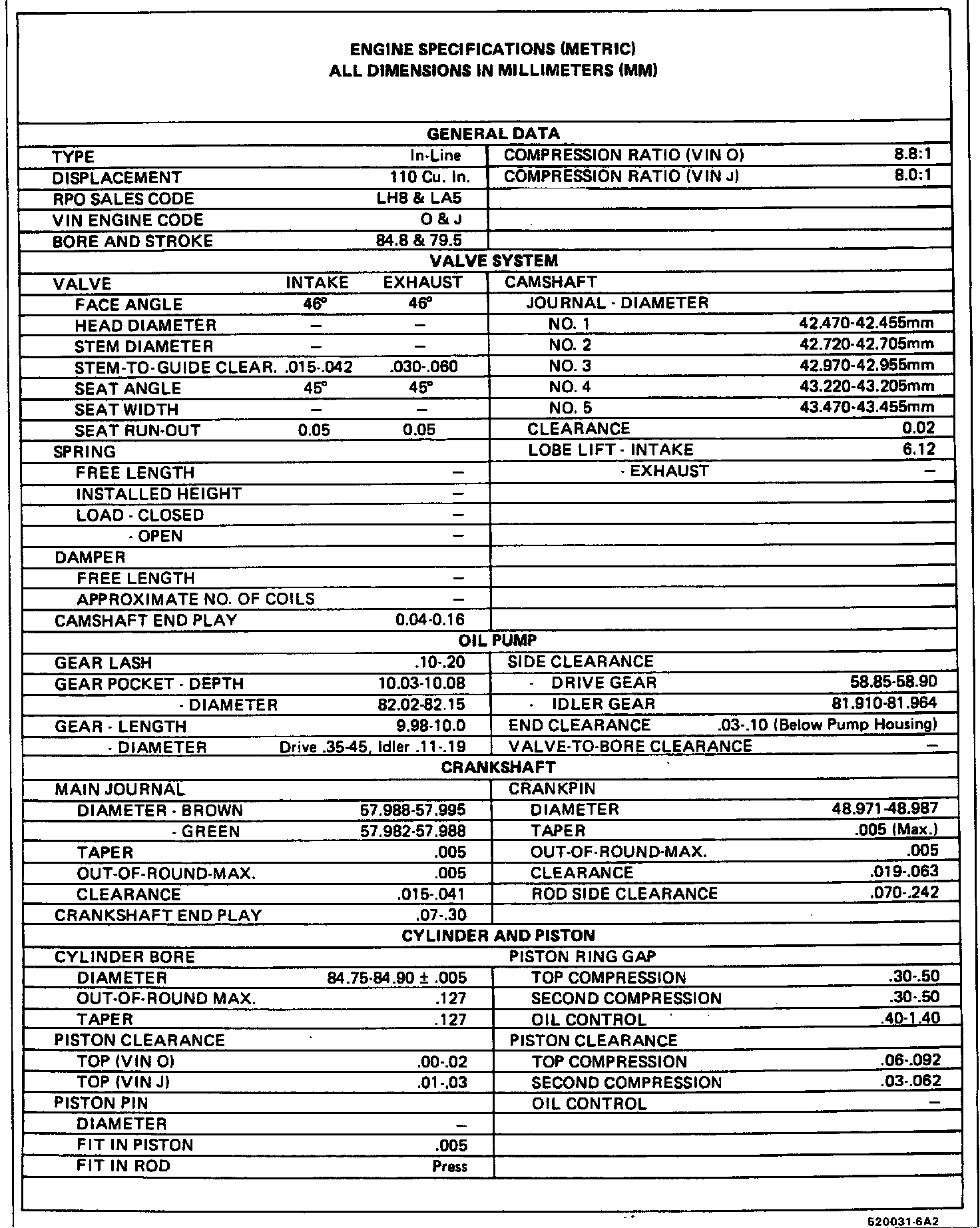

Engine Specifications:





Engine Specifications:





Cylinder Head Loosening Sequence:





Cylinder Head Torque Sequence:





Cylinder Head Bolt Torque Degree Chart:
