Home >> Oldsmobile >> 1986 >> Cutlass V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Housing Assembly HVAC >> Heater Module Assembly

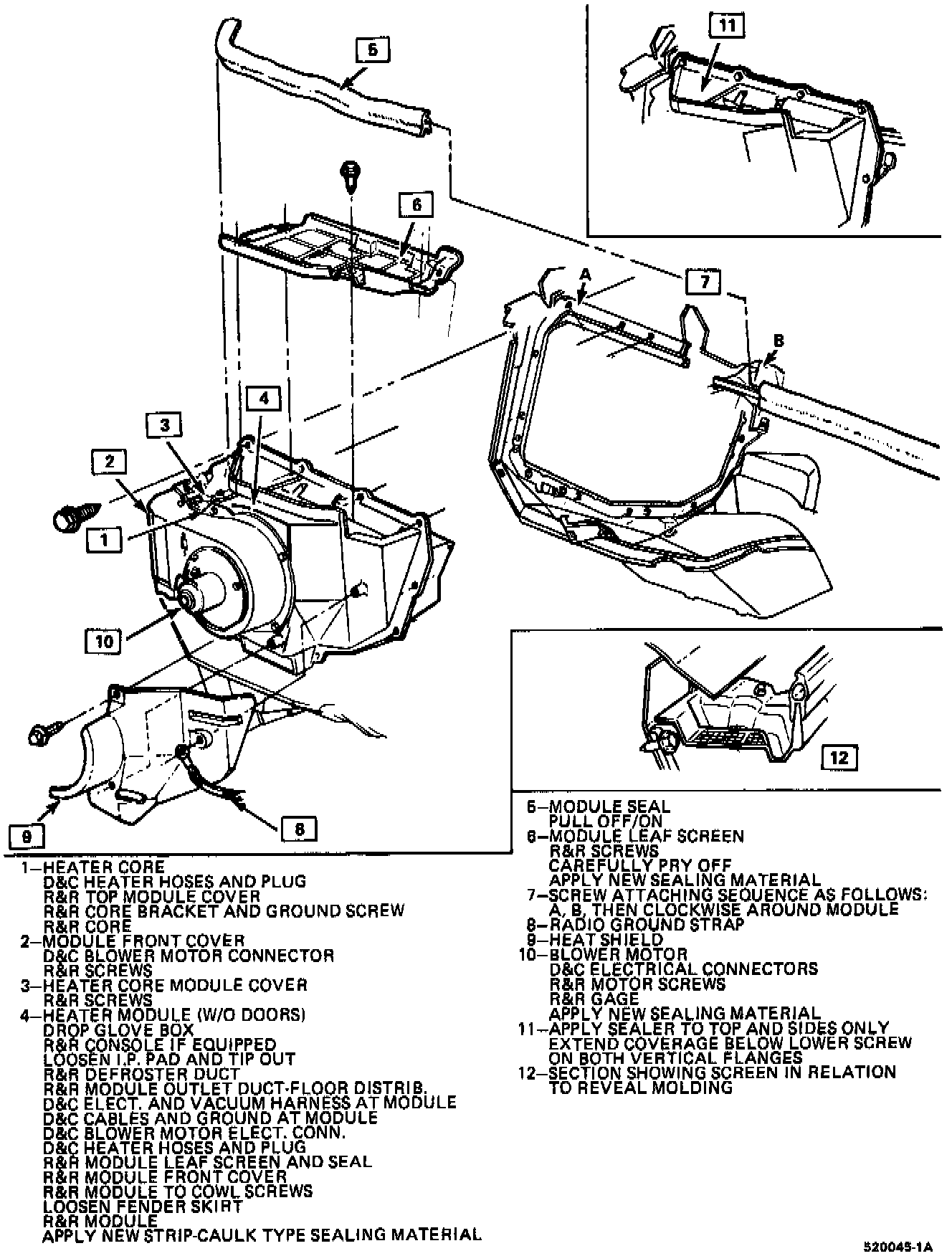

Heater Module Assembly

Heater Module Assembly:
