Electronic Control Module (ECM)

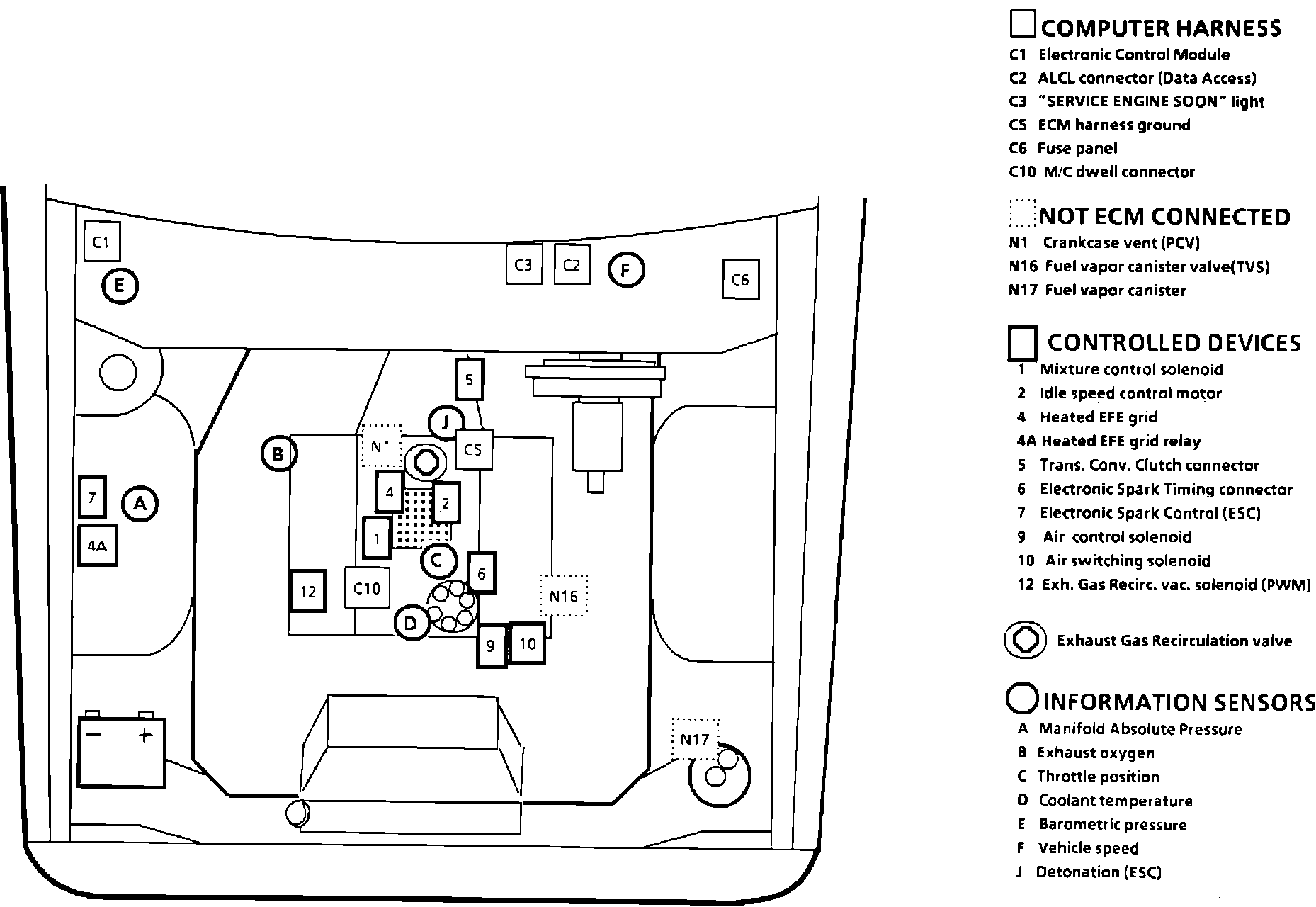

Under Dash & Underhood Components.:




Under RH Corner Of I/P

Applicable to: 1986 V6-231/3.8L VIN A
