Emission Control Systems: Locations

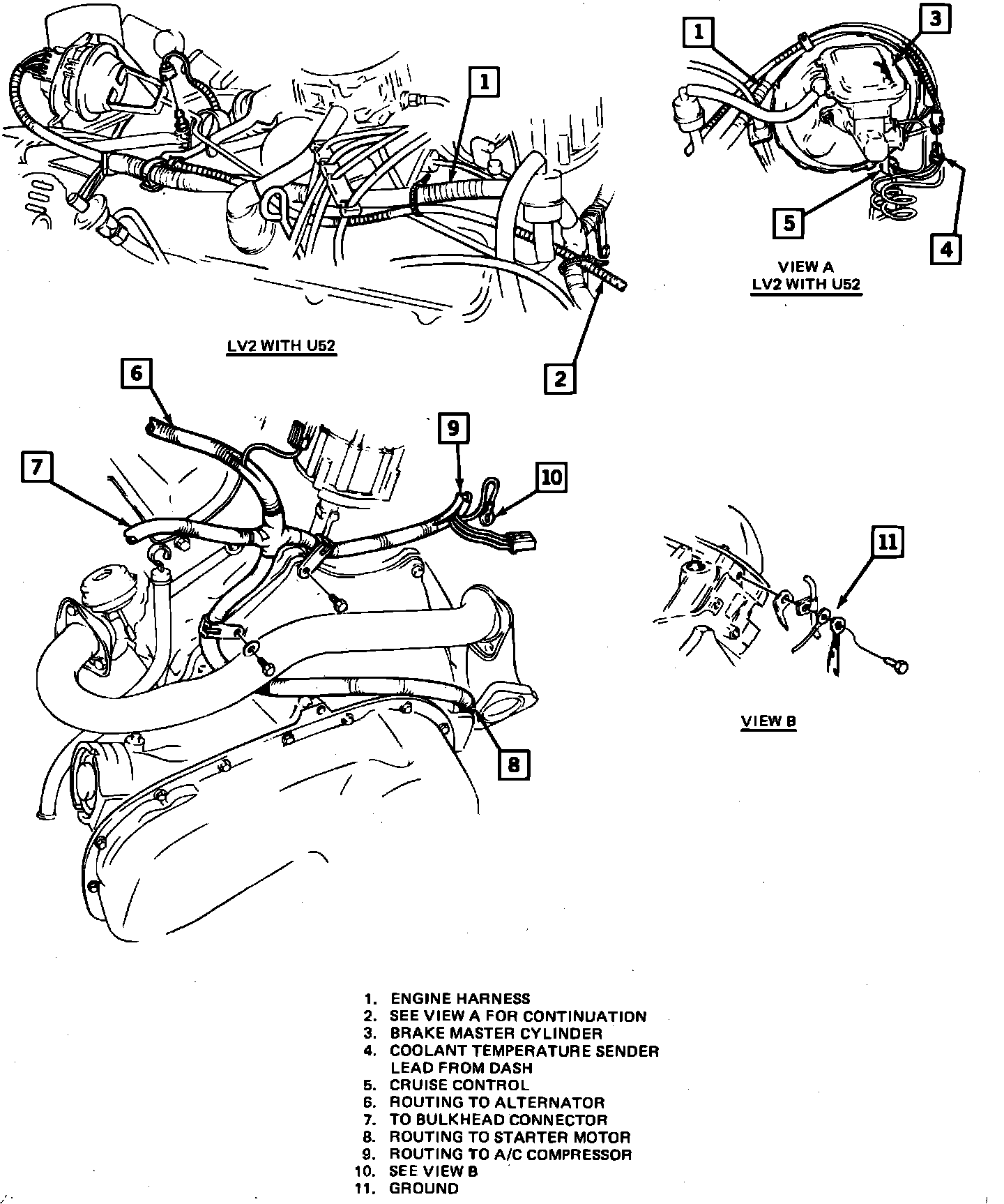

Fig. 10a Emission Control System Components (Part 1 of 2). 1984 Toronado W/V8-307:

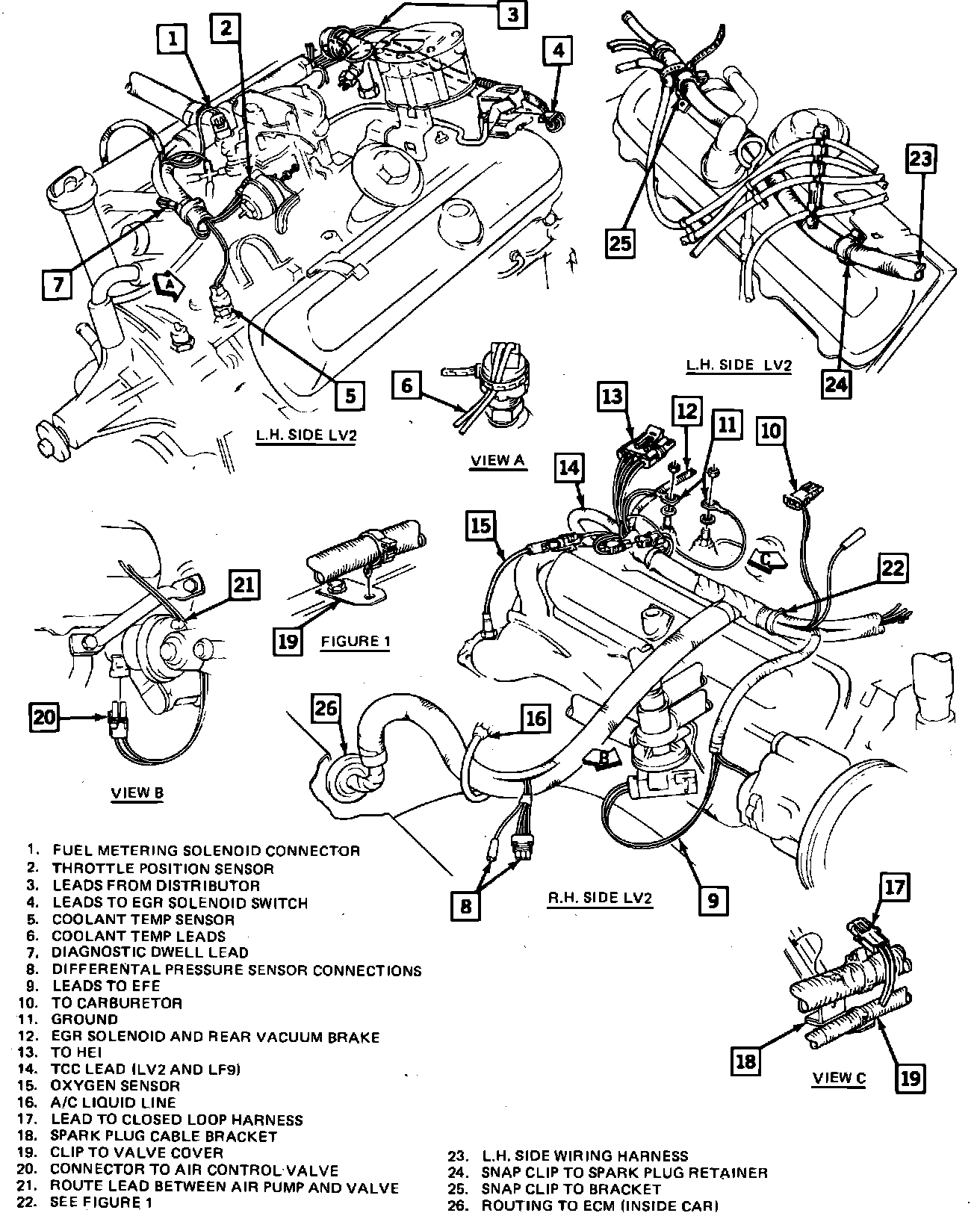

Fig. 10b Emission Control System Components (Part 2 of 2). 1984 Toronado W/V8-307:
