Electronic/Powertrain Control Module (ECM/PCM)

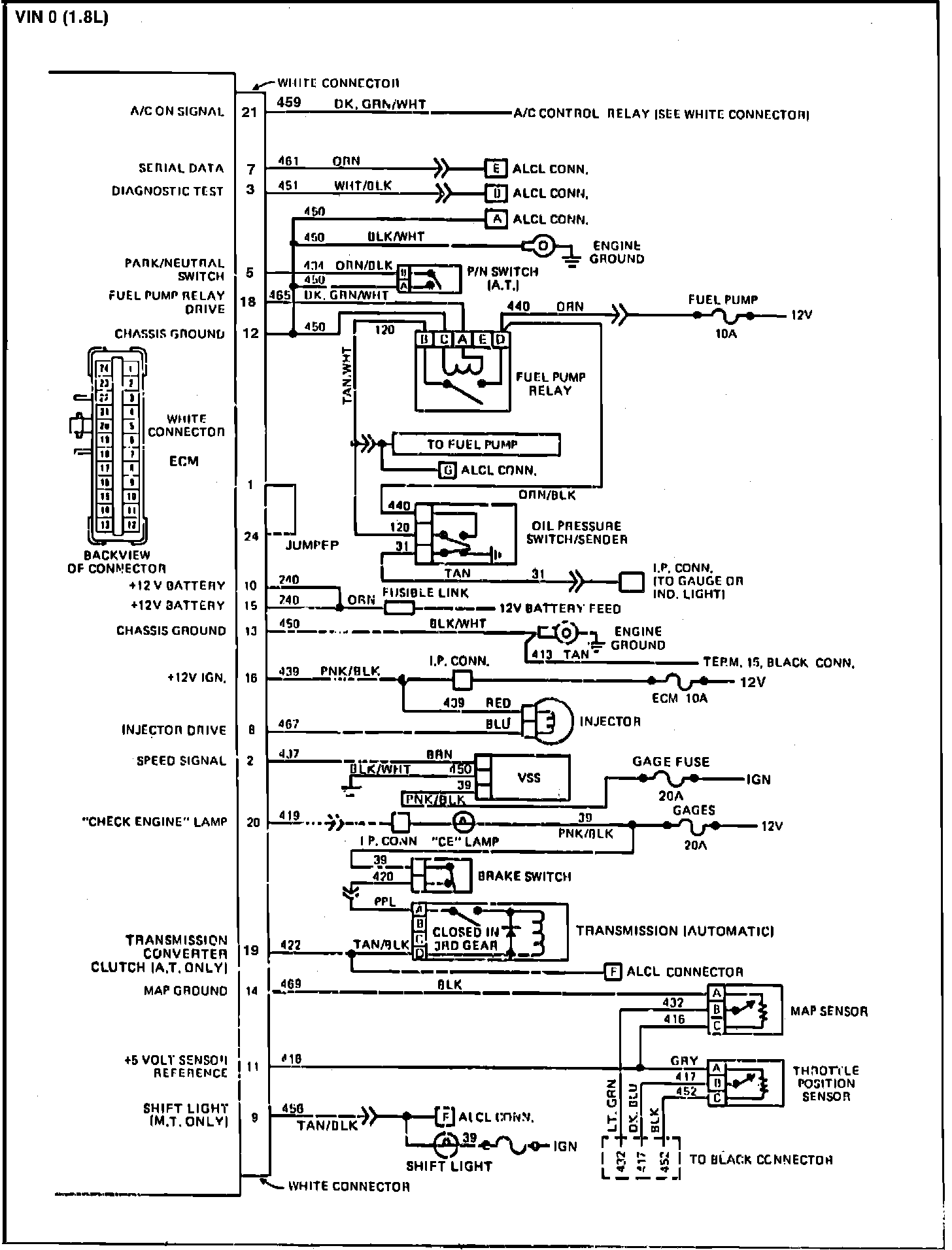

Fig. 026 ECM Wiring Diagrams (1 of 2):

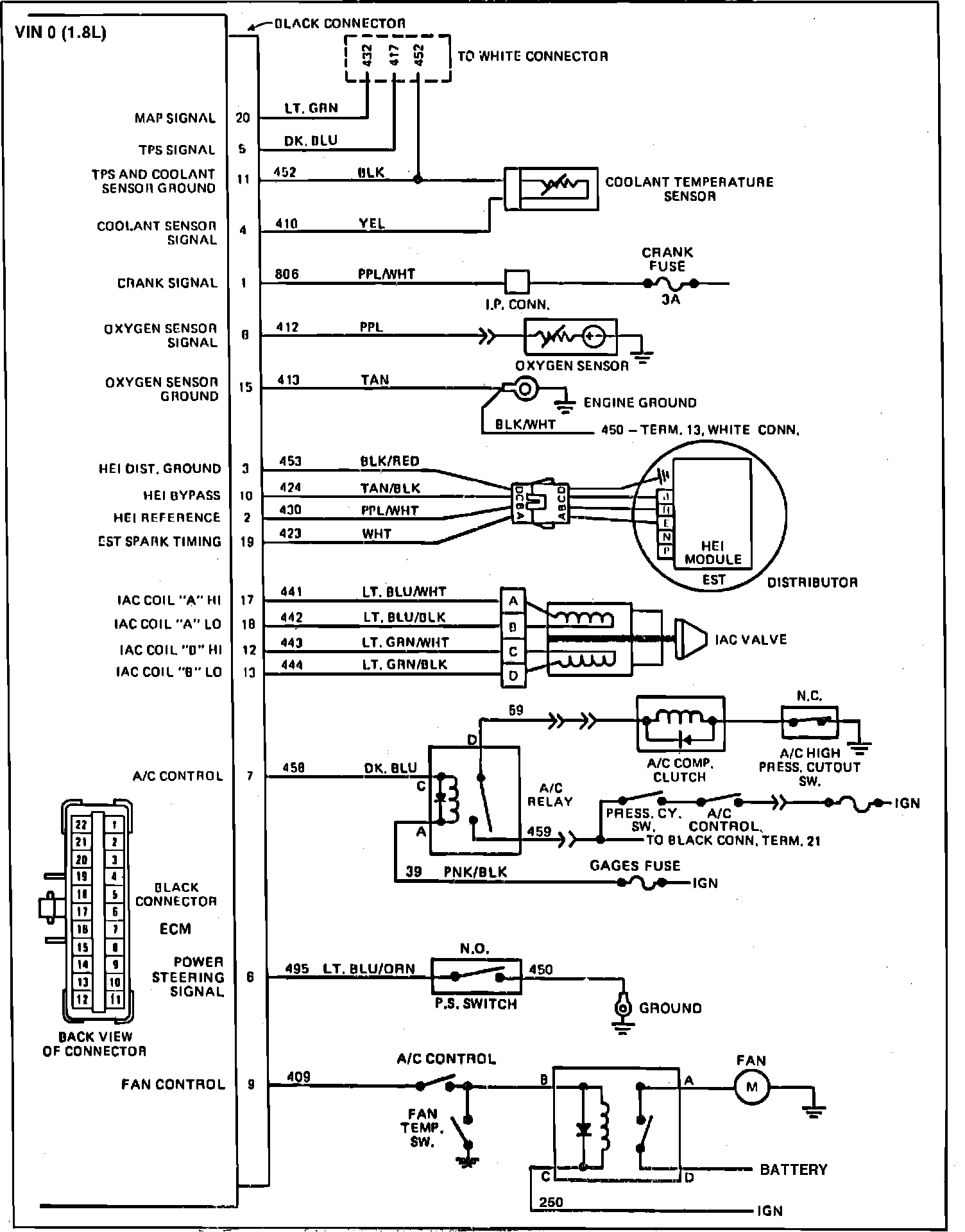

Fig. 027 ECM Wiring Diagrams (2 of 2):
