Home >> Oldsmobile >> 1982 >> Omega L4-151 2.5L VIN 5 2-bbl >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

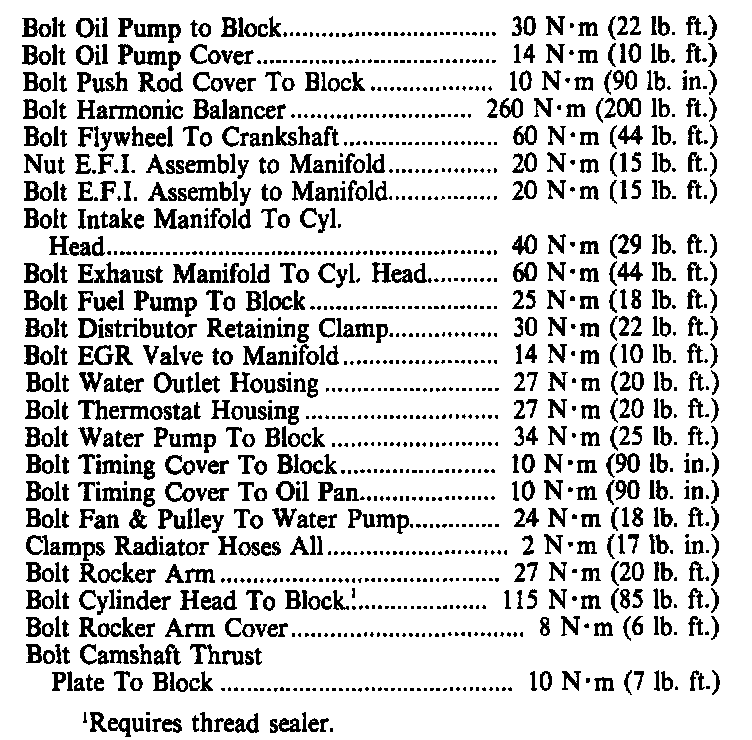

Torque Specifications:





Torque Specifications:

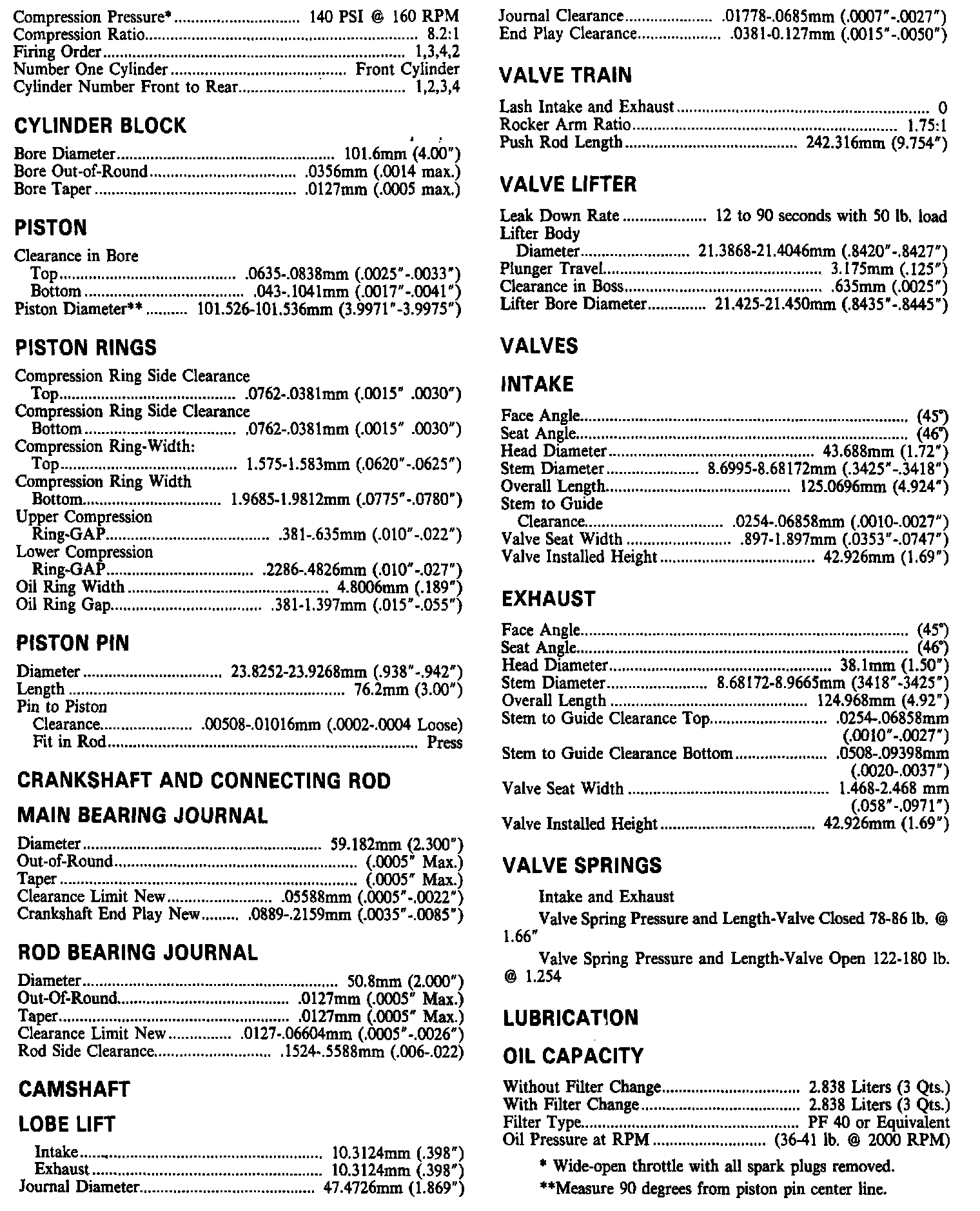

Engine Specifications:





Engine Specifications:

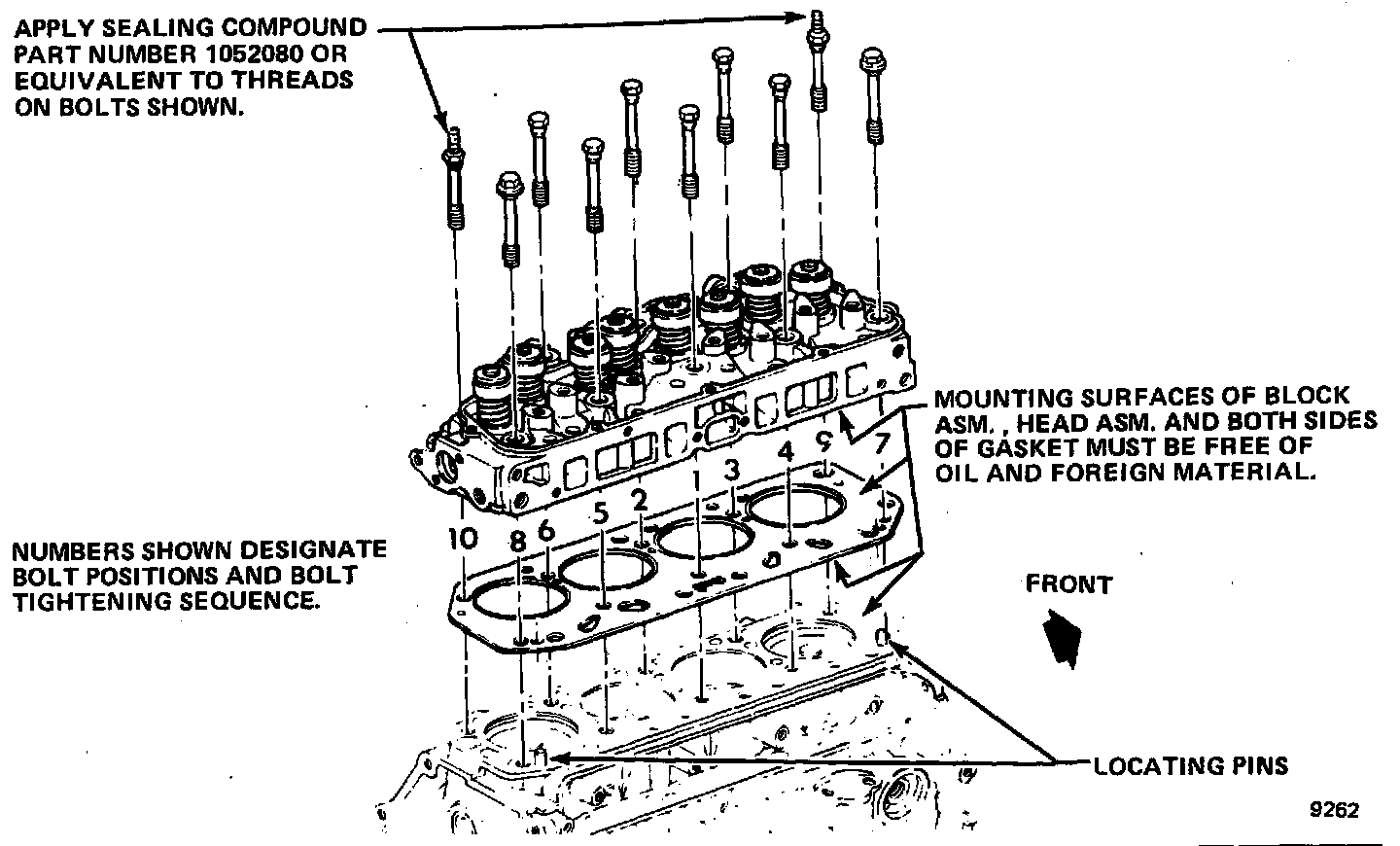

Cylinder Head Bolt Torque Sequence:

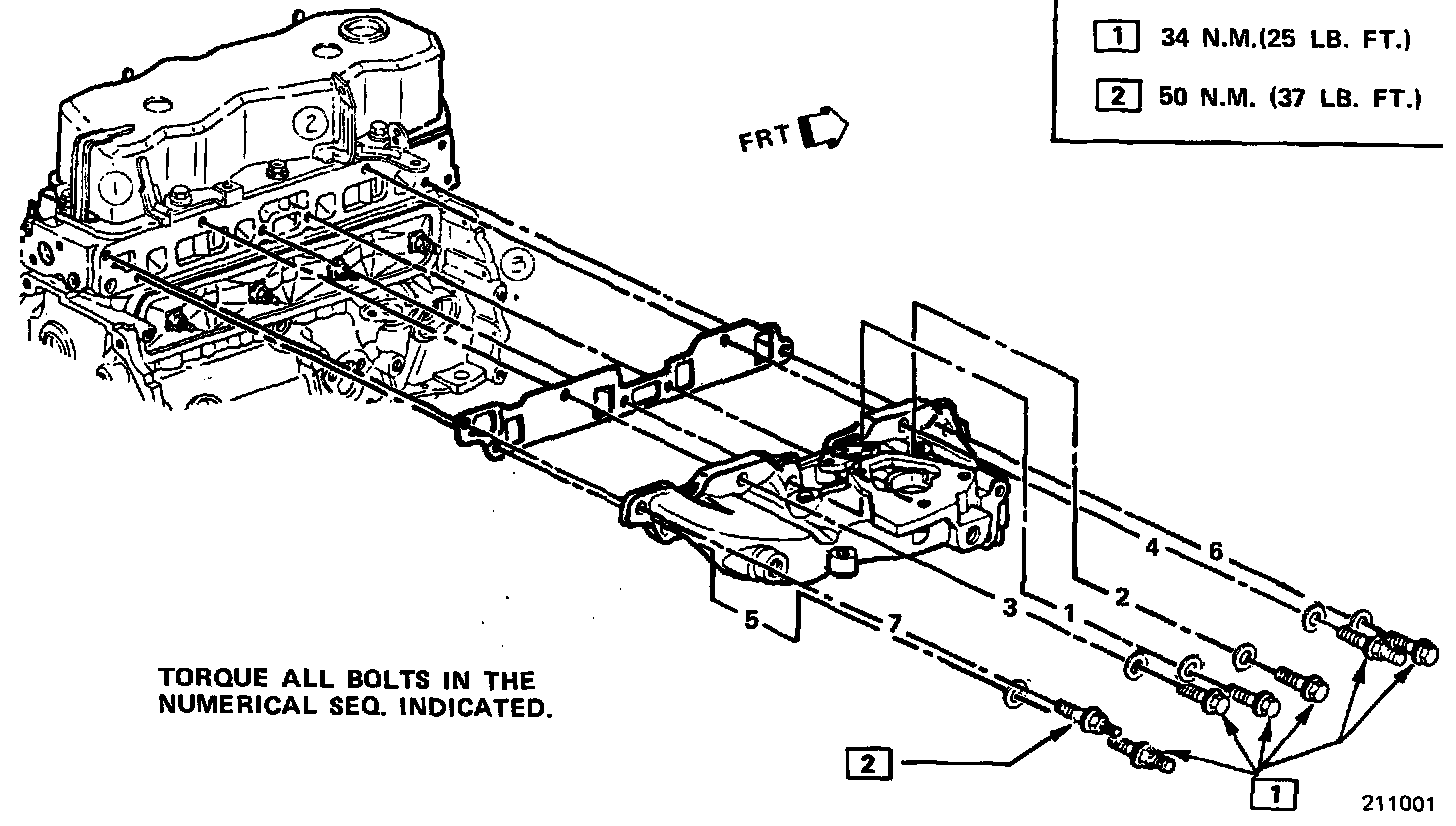

Intake Manifold Bolt Torque Sequence:
