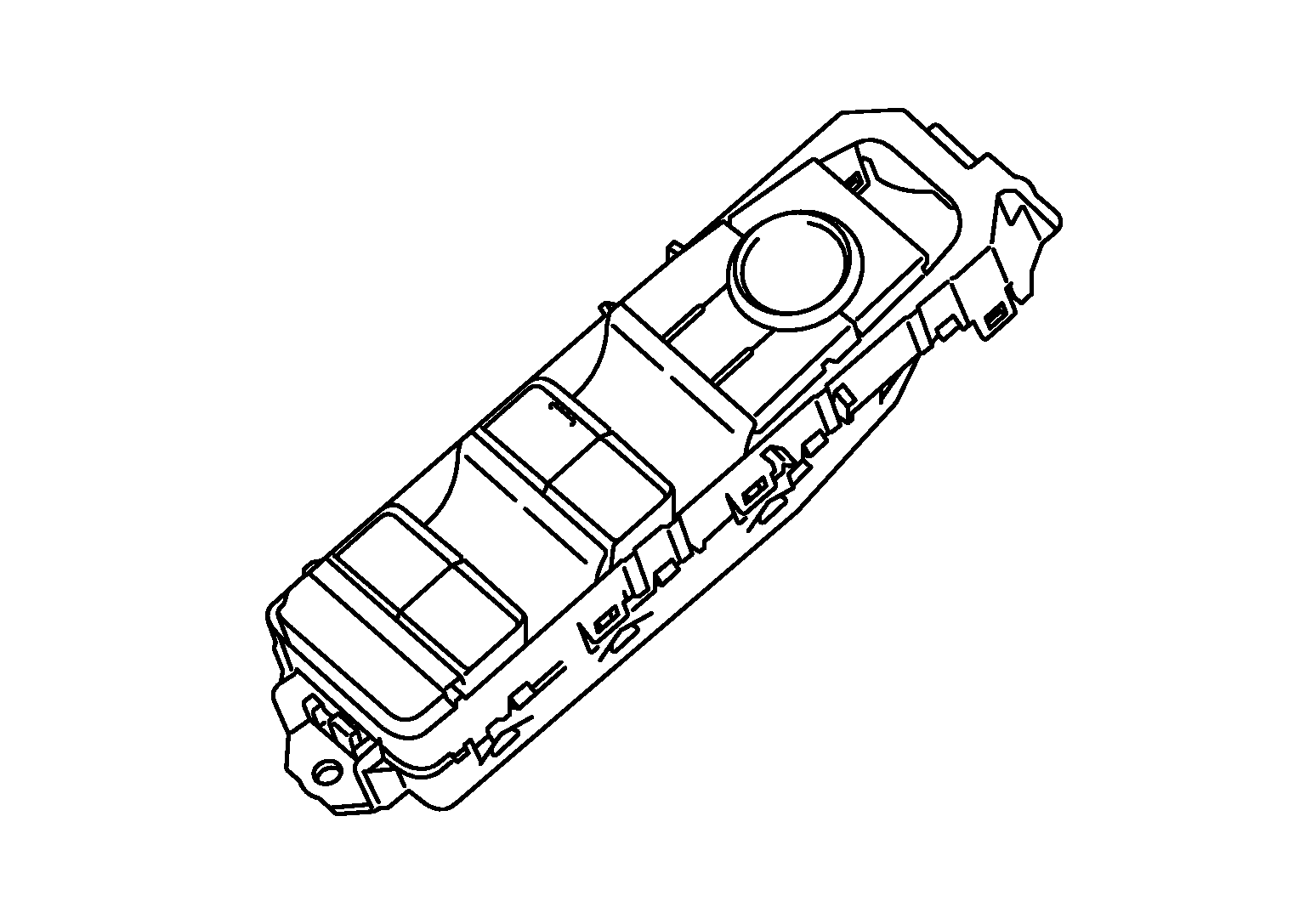

Power Window Main Switch

Courtesy of NISSAN NORTH AMERICA, INC.

• Power window main switch is installed to front door finisher (driver side). Refer to Component Location .
• Transmits signal to each power window switch and front power window motor (driver side).
• Turns ON/OFF the power window lock switch.
• Power window main switch controls all power window motors.
• Power window lock switch inhibits operation from other power window switches.

COMPONENT OPERATION

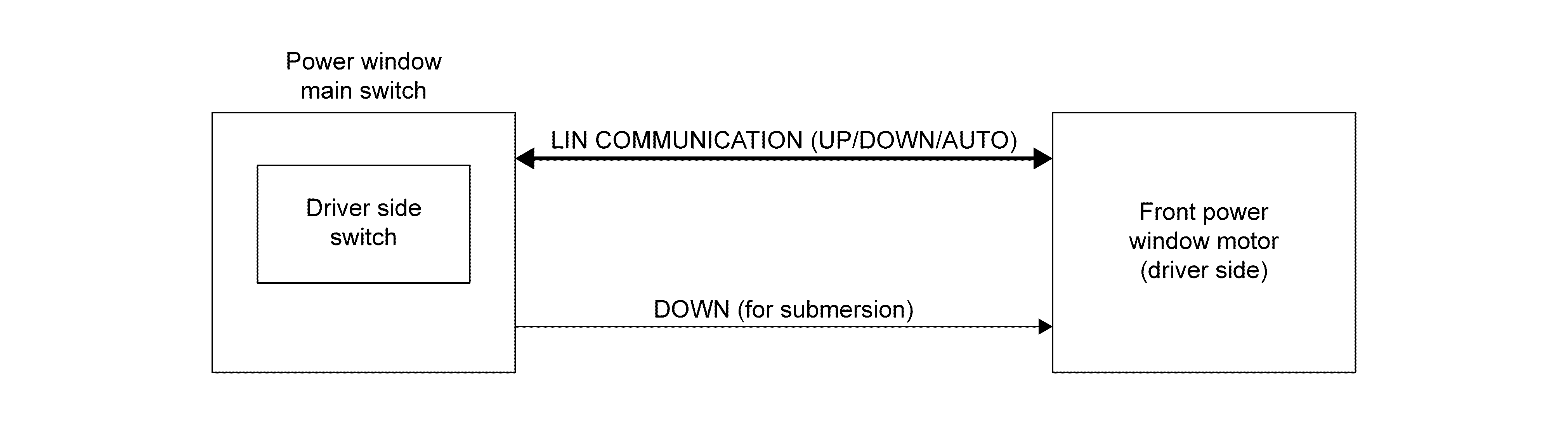

• When power window main switch (driver side switch) is operated, it transmits signal to front power window motor (driver side) via LIN communication.
• When the power window main switch is submerged in water during the vehicle is submerged, the UP/DOWN/AUTO control via LIN communication is stopped. Then the DOWN signal circuit between the power window main switch and the front power window motor (driver side) enables only DOWN operation.

  Courtesy of NISSAN NORTH AMERICA, INC.

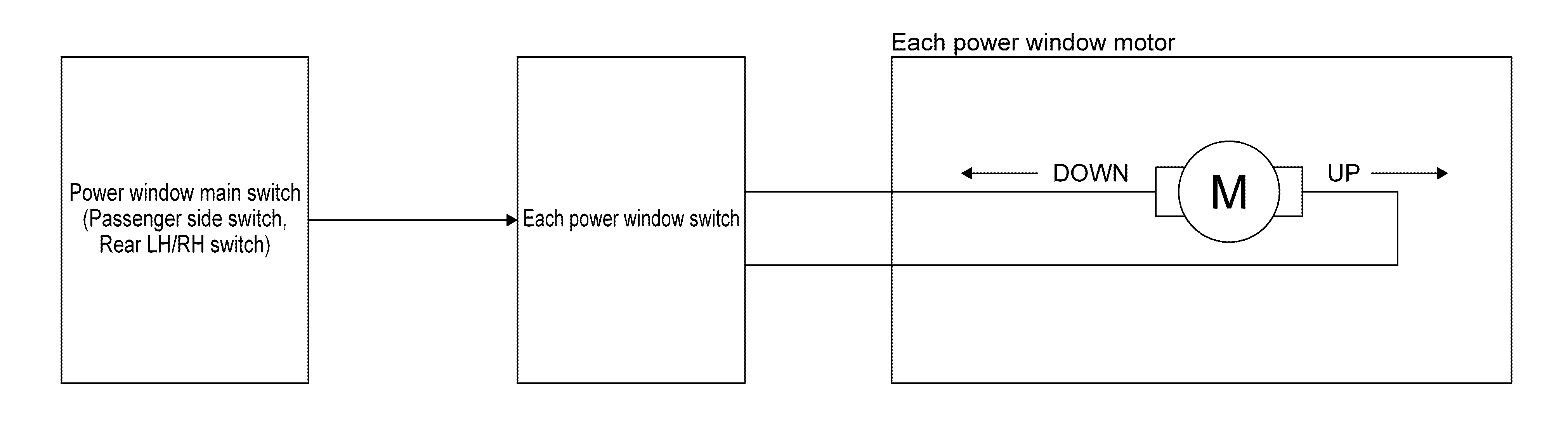

• When power window main switch (passenger side switch, rear LH/RH switch) is operated, it transmits signal to each power window motor via each power window switch.

  Courtesy of NISSAN NORTH AMERICA, INC.
