Hood Switch

FUNCTIONS WITHIN THE SYSTEM

When the ECM receives the hood switch signal via CAN communication, it cancels the idle start/stop system.

INDIVIDUAL FUNCTION WITHIN THE SYSTEM

The hood switch detects the hood open/close status and inputs the hood switch signal into the IPDM E/R.

INDIVIDUAL OPERATION

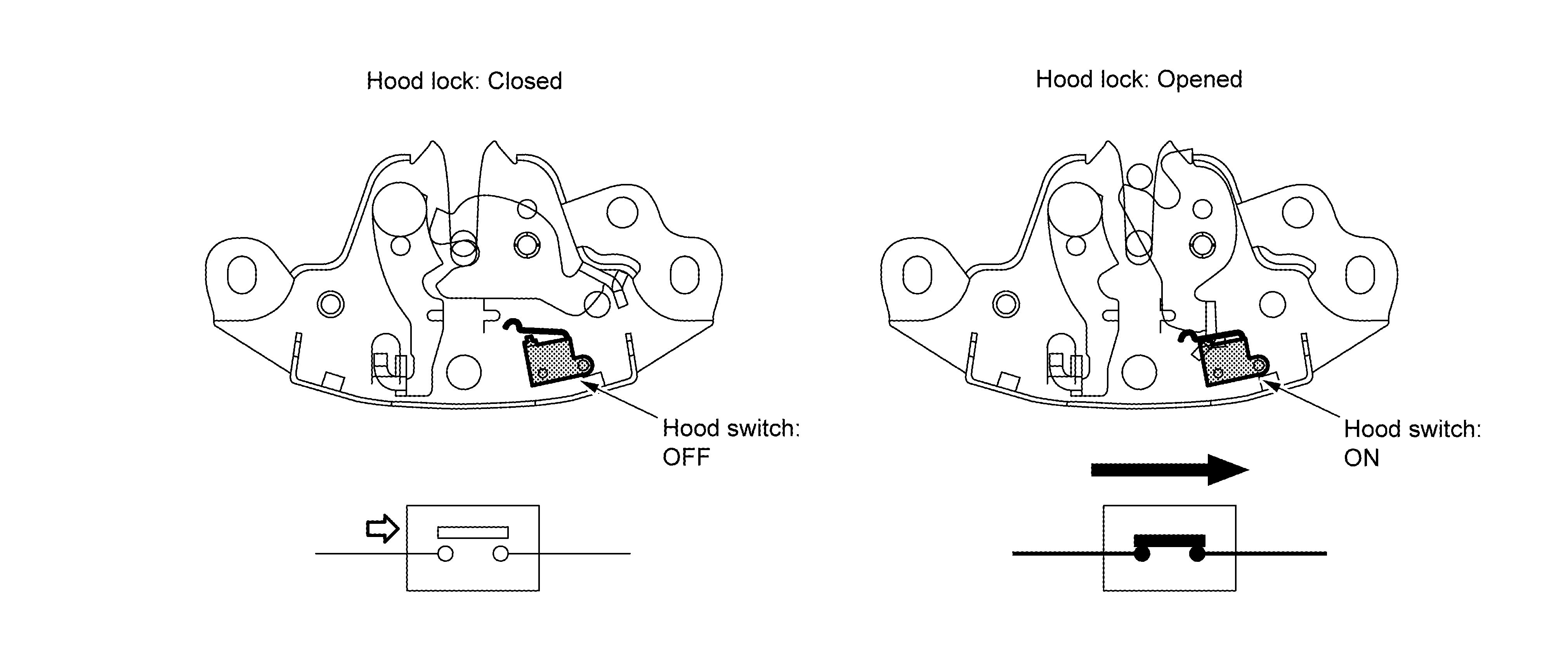

The hood switch turns ON/OFF according to the hood status.

Courtesy of NISSAN NORTH AMERICA, INC.

COMPONENT LOCATION

The hood switch is installed to the hood lock.
