Exploded View

2WD MODELS

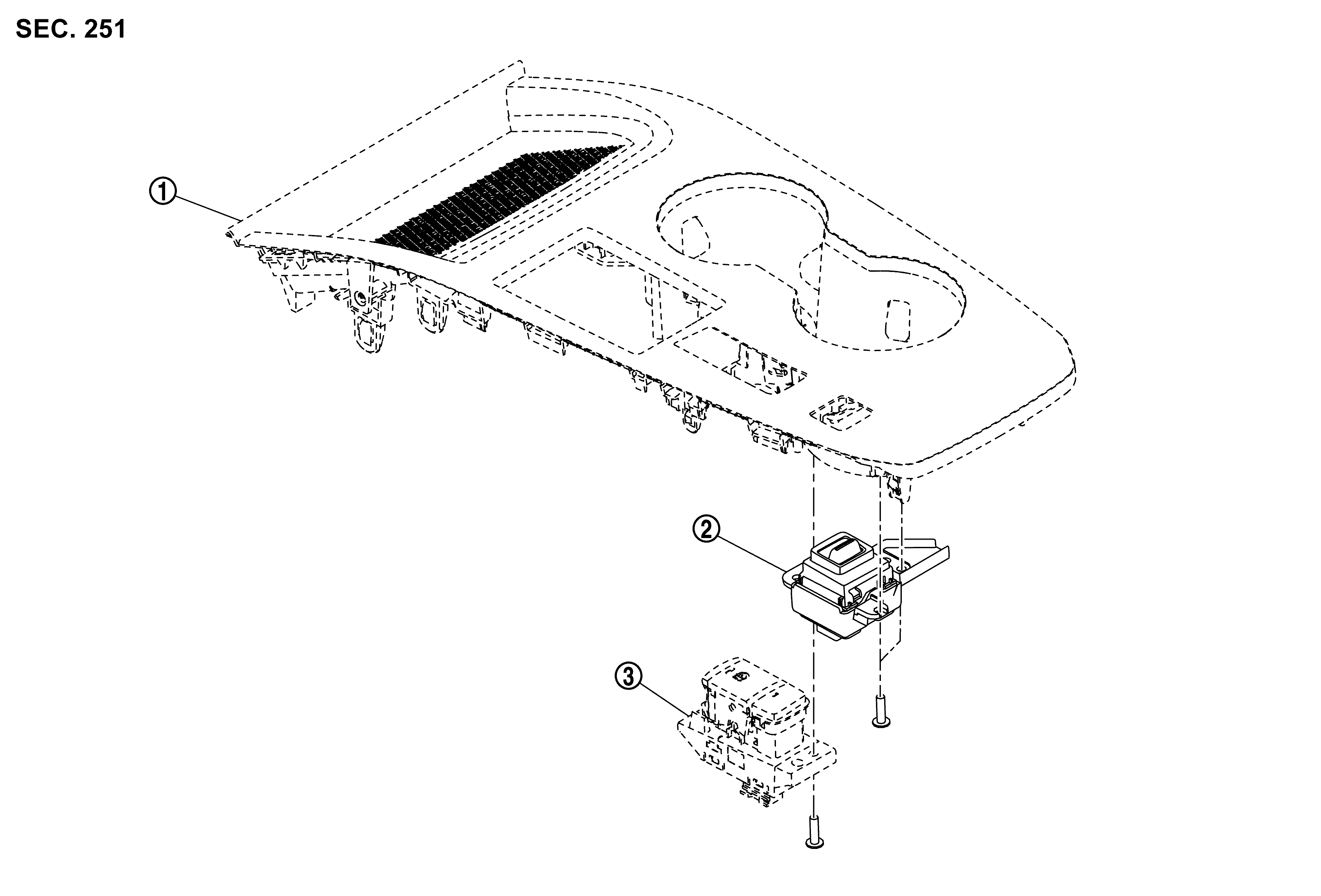

GNSDB32902Courtesy of NISSAN
SYMBOL Console finisher SYMBOL Drive mode select switch SYMBOL Parking brake switch

AWD MODELS

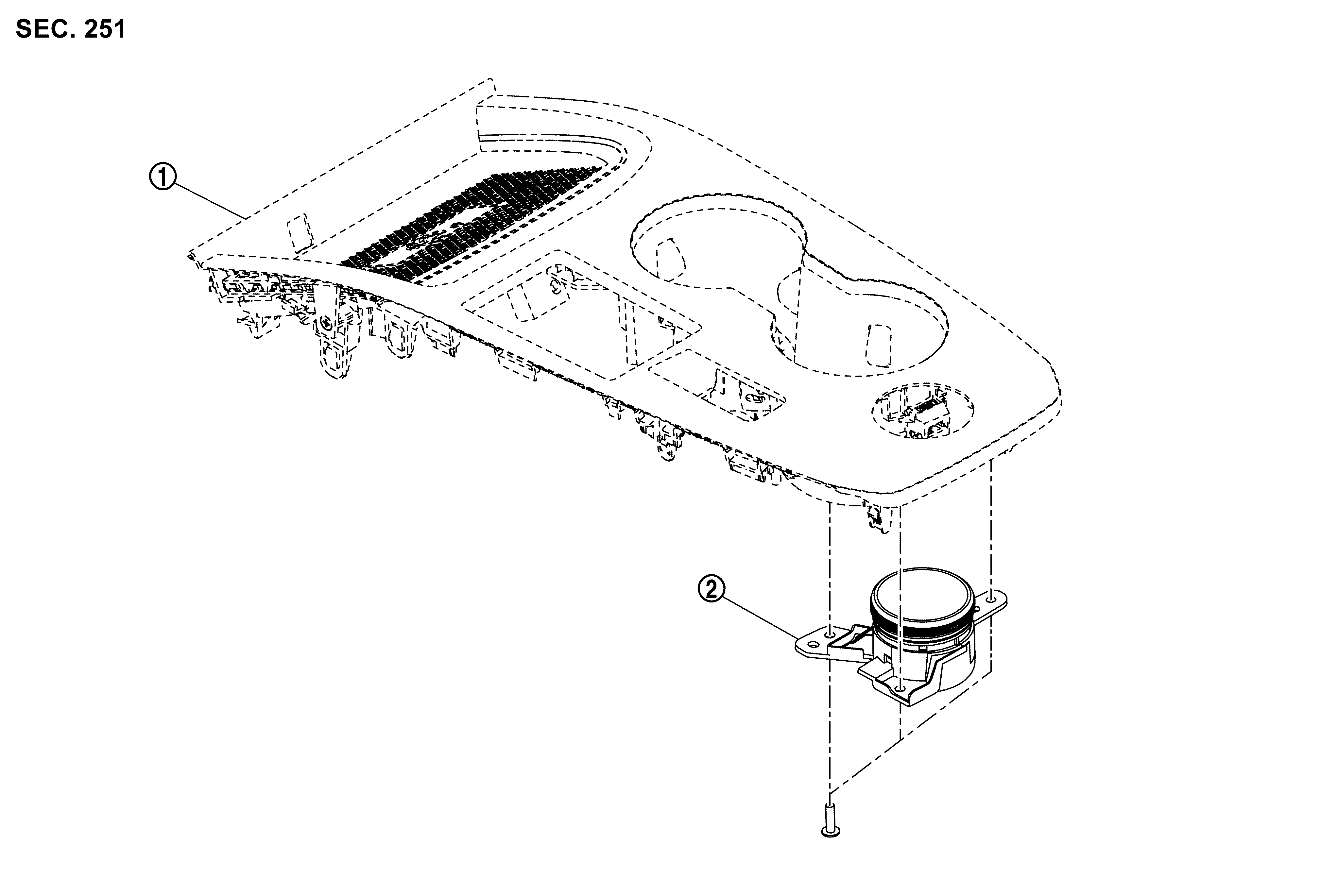

GNSDB34930Courtesy of NISSAN
SYMBOL Console finisher SYMBOL Drive mode select switch
