Power Window Relay

COMPONENT FUNCTION WITHIN SYSTEM

This relay is controlled by BCM. When it turns ON, power is supplied to the power window system.

INDIVIDUAL COMPONENT FUNCTION

Turn ON/OFF relay.

COMPONENT OPERATION

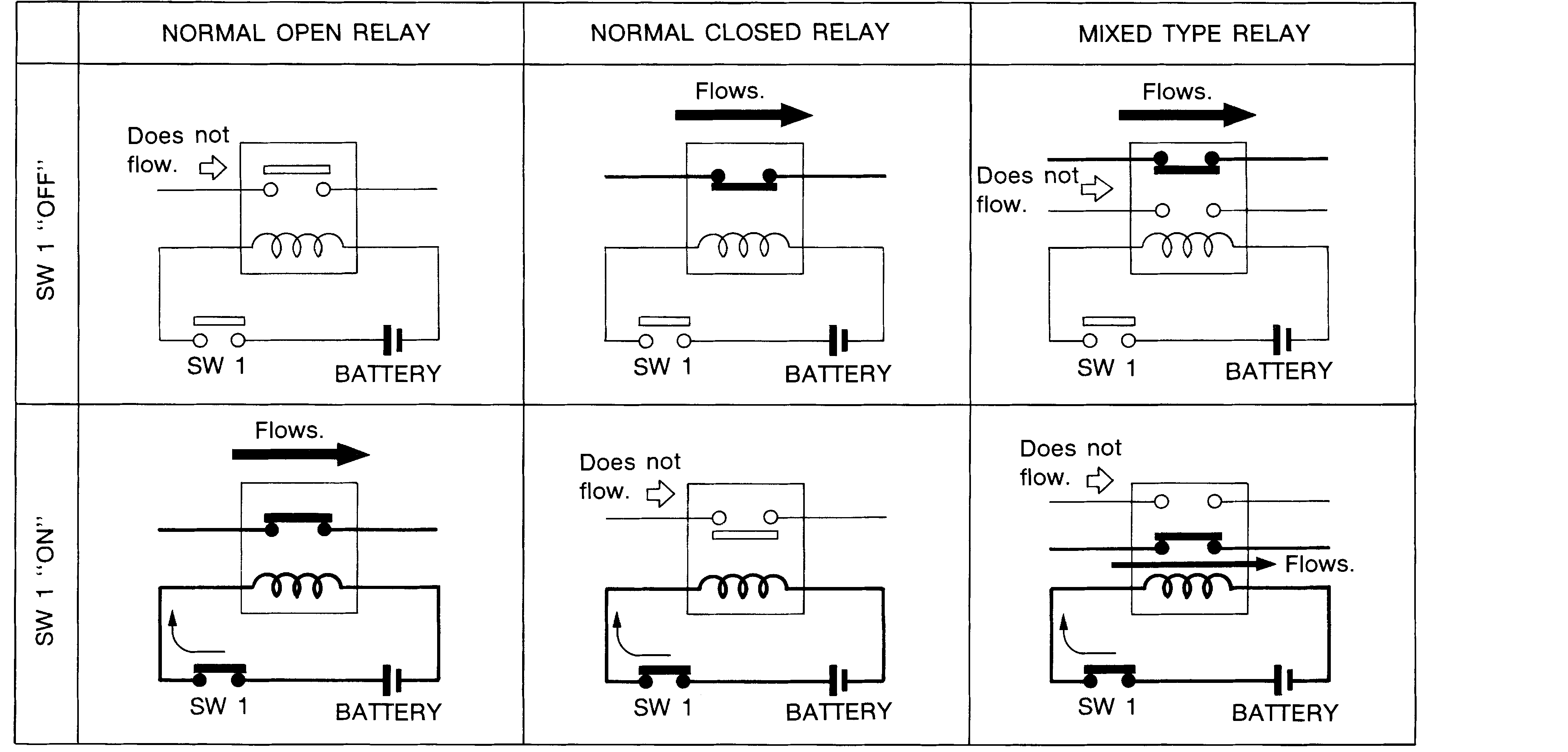

The power window relay utilizes a normal open relay.

Courtesy of NISSAN

COMPONENT LOCATION

The power window relay is installed to fuse block (J/B). Refer to Component Location .
