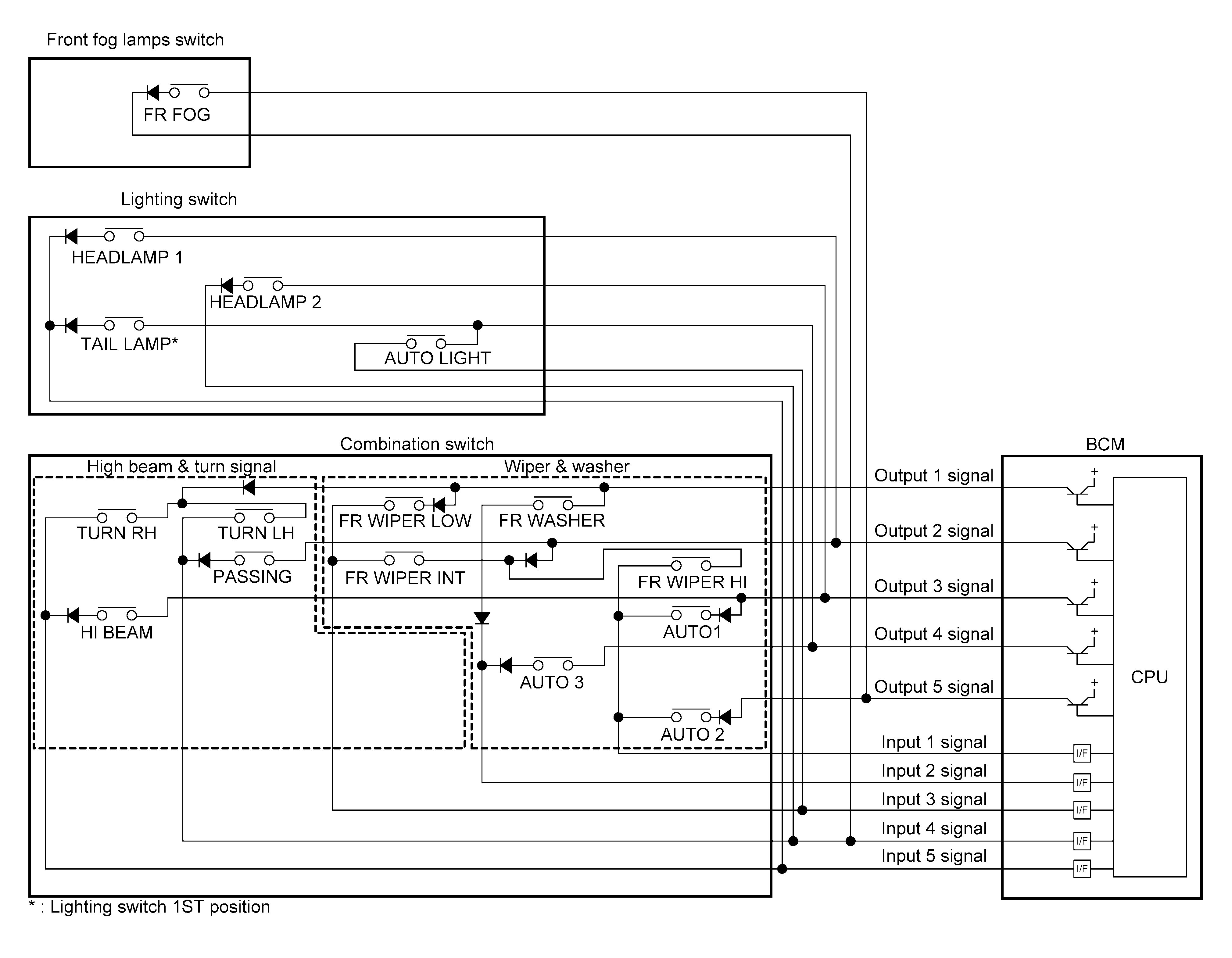

Combination And Lighting Switch Matrix (With Rain Sensing Wipers)
Combination and lighting switch INPUT-OUTPUT system list
|
System |
INPUT 1 |
INPUT 2 |
INPUT 3 |
INPUT 4 |
INPUT 5 |
|
OUTPUT 1 |
-- |
FR WASHER |
FR WIPER LOW |
TURN LH |
TURN RH |
|
OUTPUT 2 |
FR WIPER HI |
-- |
FR WIPER INT |
PASSING |
HEADLAMP 1 |
|
OUTPUT 3 |
AUTO 1 |
-- |
-- |
HEADLAMP 2 |
HI BEAM |
|
OUTPUT 4 |
-- |
AUTO 3 |
AUTO LIGHT |
-- |
TAIL LAMP |
|
OUTPUT 5 |
AUTO 2 |
-- |
-- |
FR FOG |
-- |
