Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Steering System
>>
Unit Removal And Installation
>>
Steering Gear And Linkage
>>
Exploded View
Exploded View

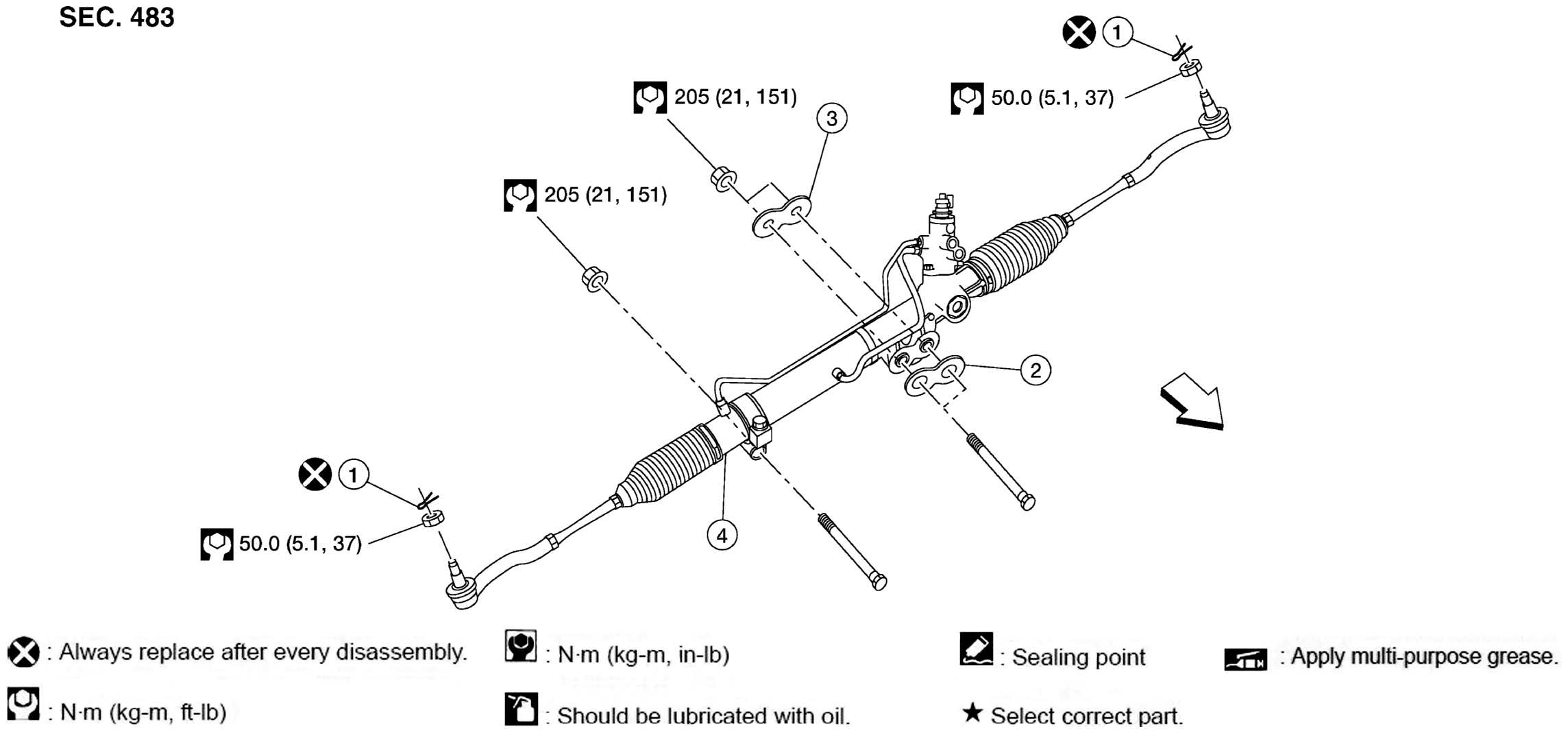

Fig 1: Steering Gear And Linkage Unit Removal And Installation With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Cotter pin
2.
Insulator
3.
Washer
4.
Steering gear
Vehicle front
Courtesy of NISSAN NORTH AMERICA, INC.
