Home
>>
Nissan-Datsun
>>
2016
>>
Versa Note S Plus
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Exhaust System
>>
Removal And Installation
>>
Exhaust System
>>
Exploded View With Torque Specifications
>>
Removal
Exploded View With Torque Specifications: Removal
Disconnect each joint and mounting.
Remove heated oxygen sensor 2 (1) using Tool (A).

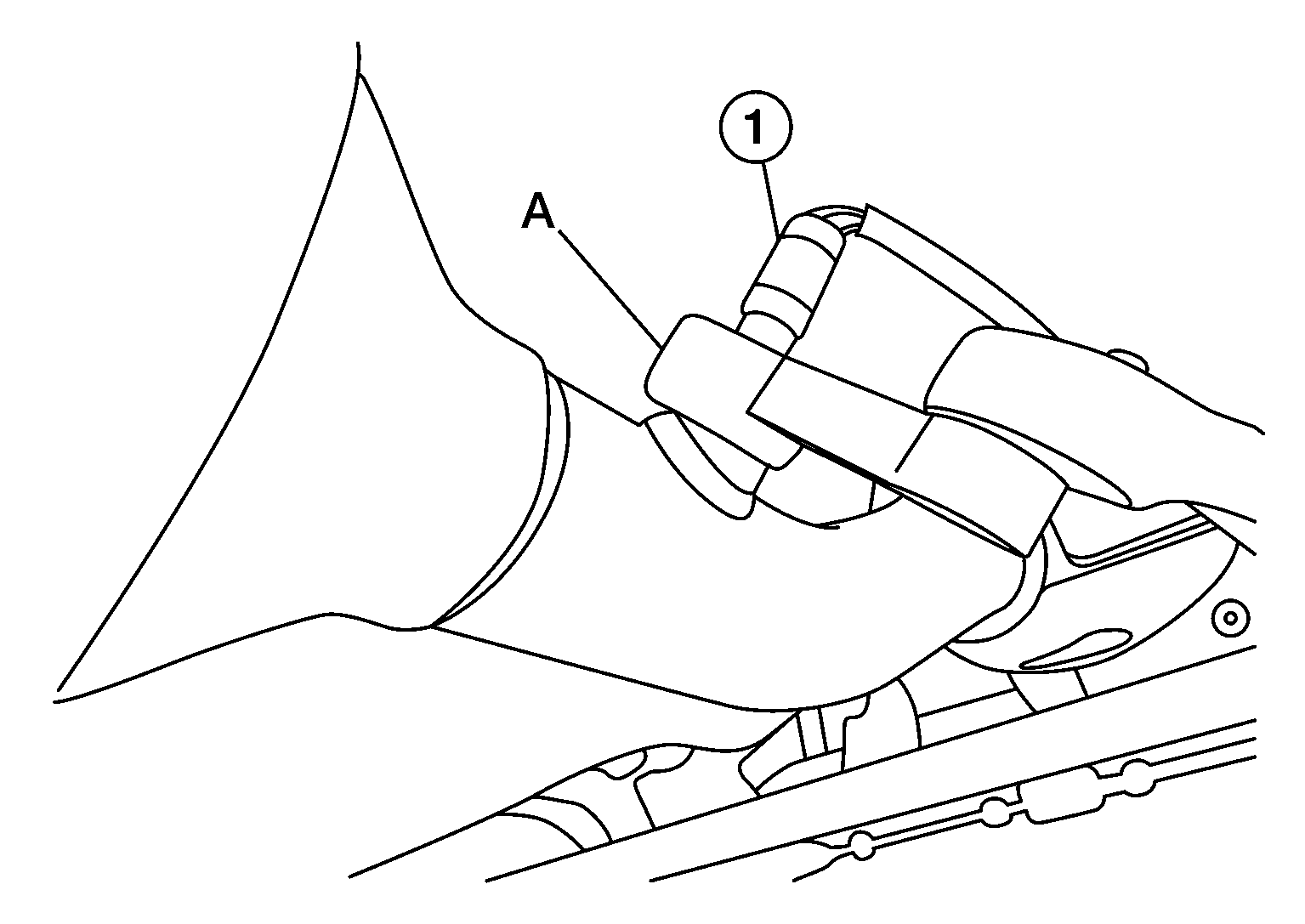

Fig 1: Heated Oxygen Sensor 2 (1)
Courtesy of NISSAN NORTH AMERICA, INC.
Tool number (A)
: KV10114400 (J-38365-N1)
