Engine Control System (Introduction And Basic Inspection)
>>
System Description
>>
System
>>
Electric Ignition System
>>
System Description
>>
System Diagram
System Diagram

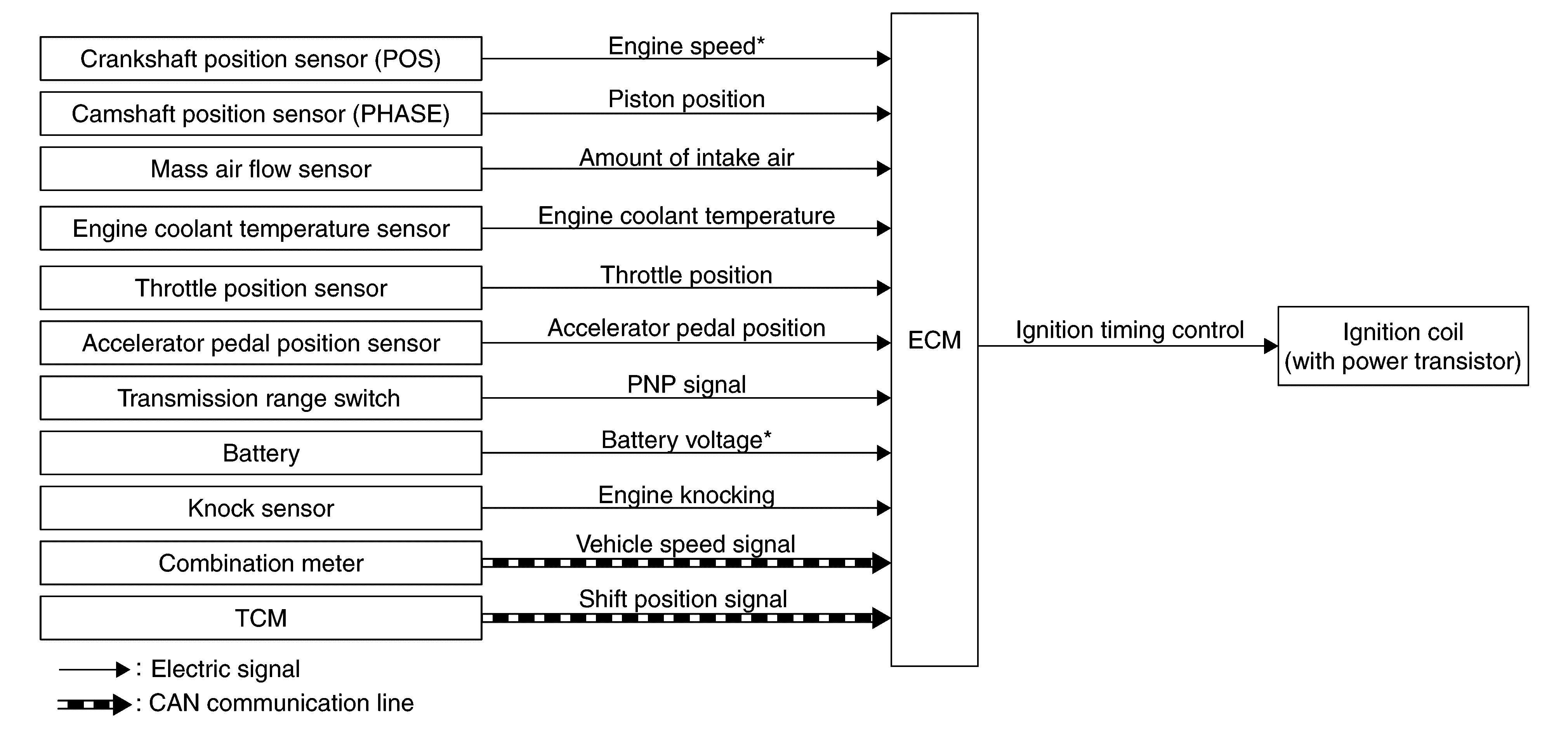

Fig 1: Electric Ignition System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
Courtesy of NISSAN NORTH AMERICA, INC.
