System - Basic Engine Control System

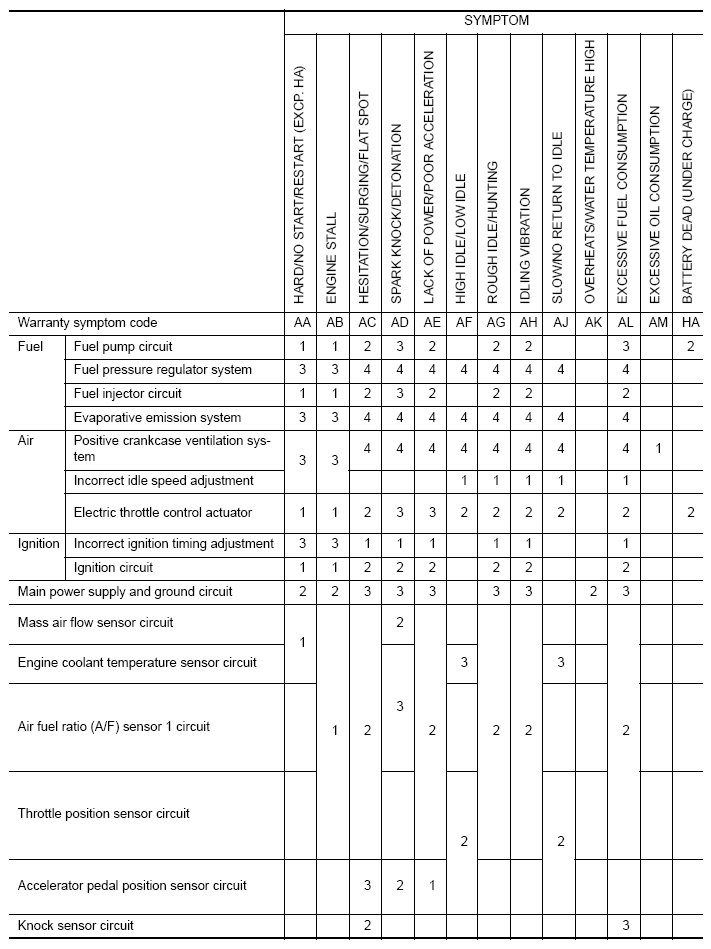

Fig 1: Engine Control System Symptoms Chart - Basic Engine Control (1 Of 2)
G09611195Courtesy of NISSAN NORTH AMERICA, INC.

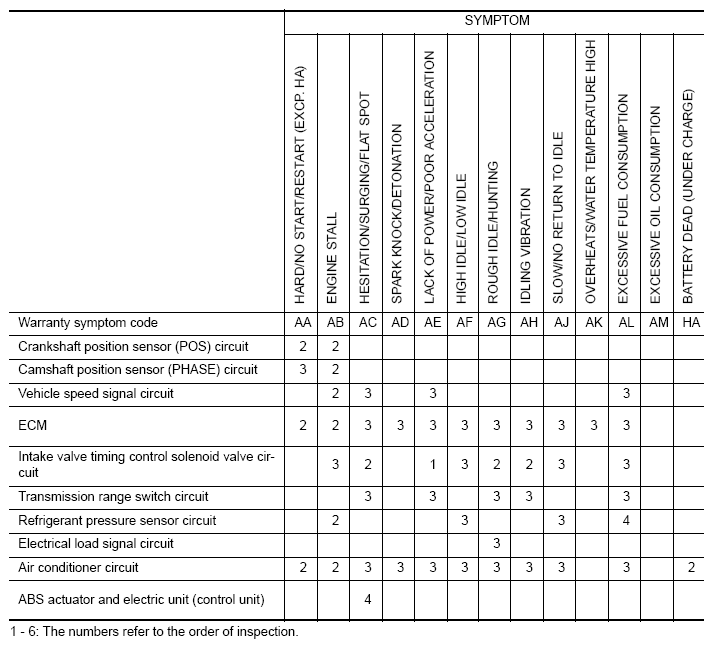

Fig 2: Engine Control System Symptoms Chart - Basic Engine Control (2 Of 2)
G09611196Courtesy of NISSAN NORTH AMERICA, INC.
