Engine Control System (Introduction)
>>
System Description
>>
Component Parts
>>
Engine Control System
>>
ENGINE CONTROL SYSTEM: Component Parts Location
>>
Engine Room Compartment
Engine Room Compartment

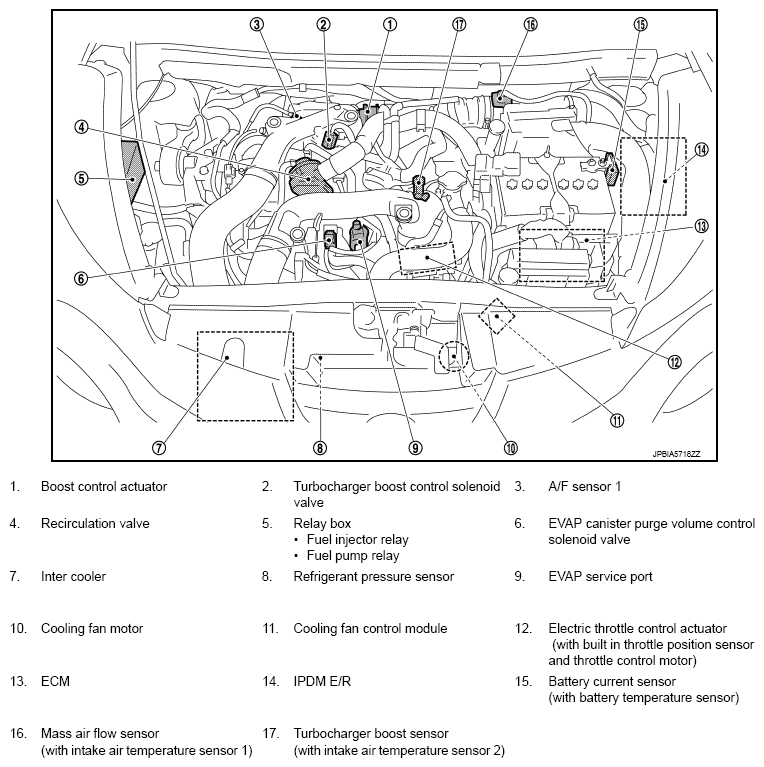

Fig 1: Identifying Engine Control System Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
