ENGINE CONTROL SYSTEM: Component Parts Location
>>
Engine Compartment
Engine Compartment

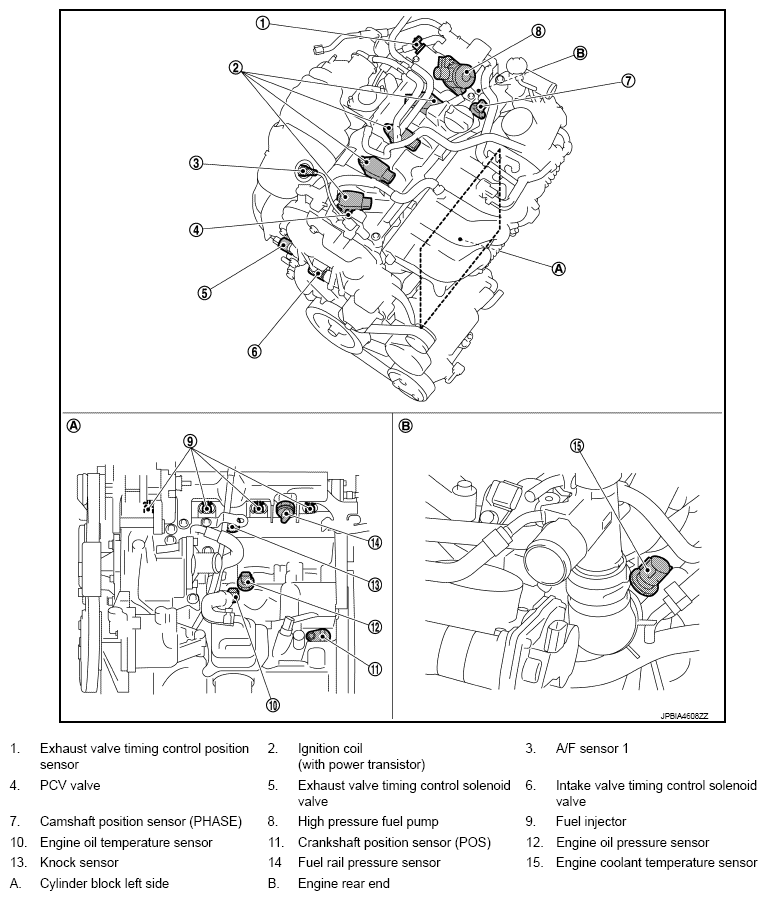

Fig 1: Identifying Engine Compartment Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
