Home >> Nissan-Datsun >> 2013 >> Juke SL, FWD, Automatic CVT Trans >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical >> Unit Disassembly And Assembly >> Timing Chain >> Exploded View

Exploded View

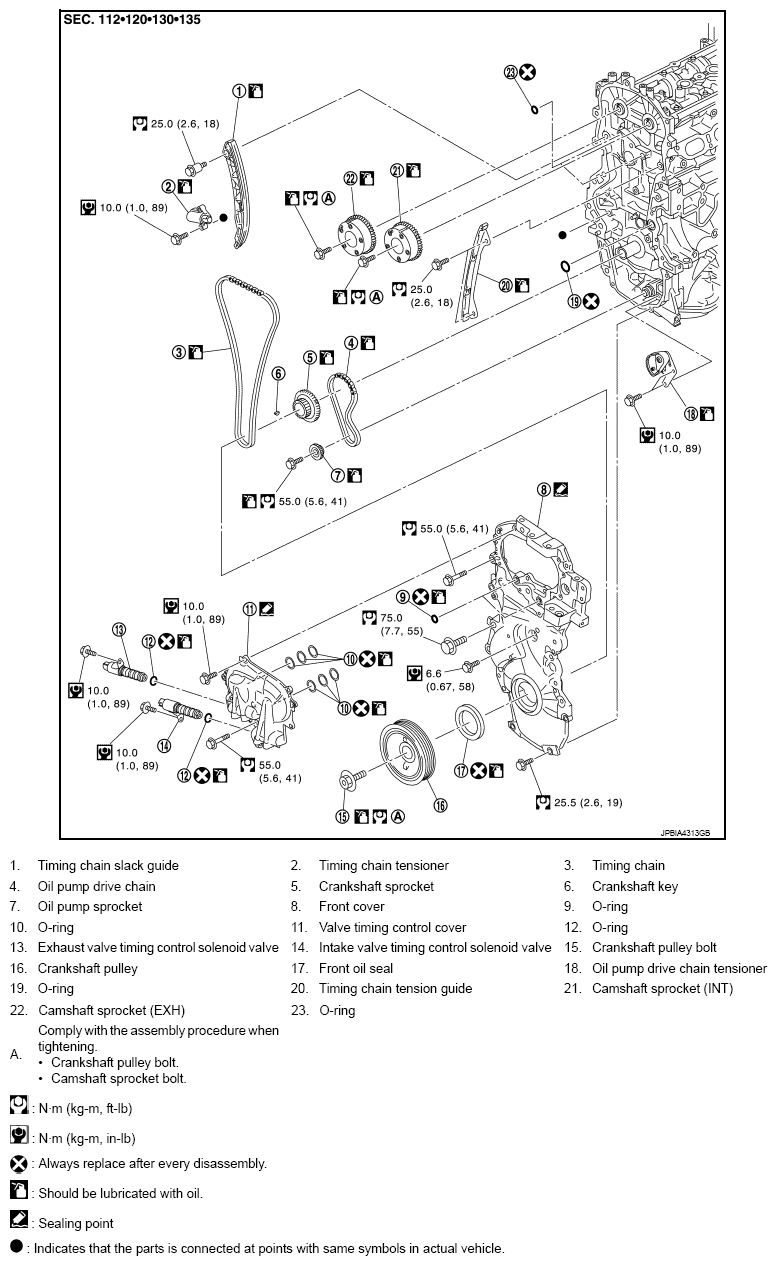

Fig 1: Exploded View Of Timing Chain With Torque Specifications

G08706337

Courtesy of NISSAN NORTH AMERICA, INC.
