System - Basic Engine Control System

WARNING: This page is about a different car, the 2012 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

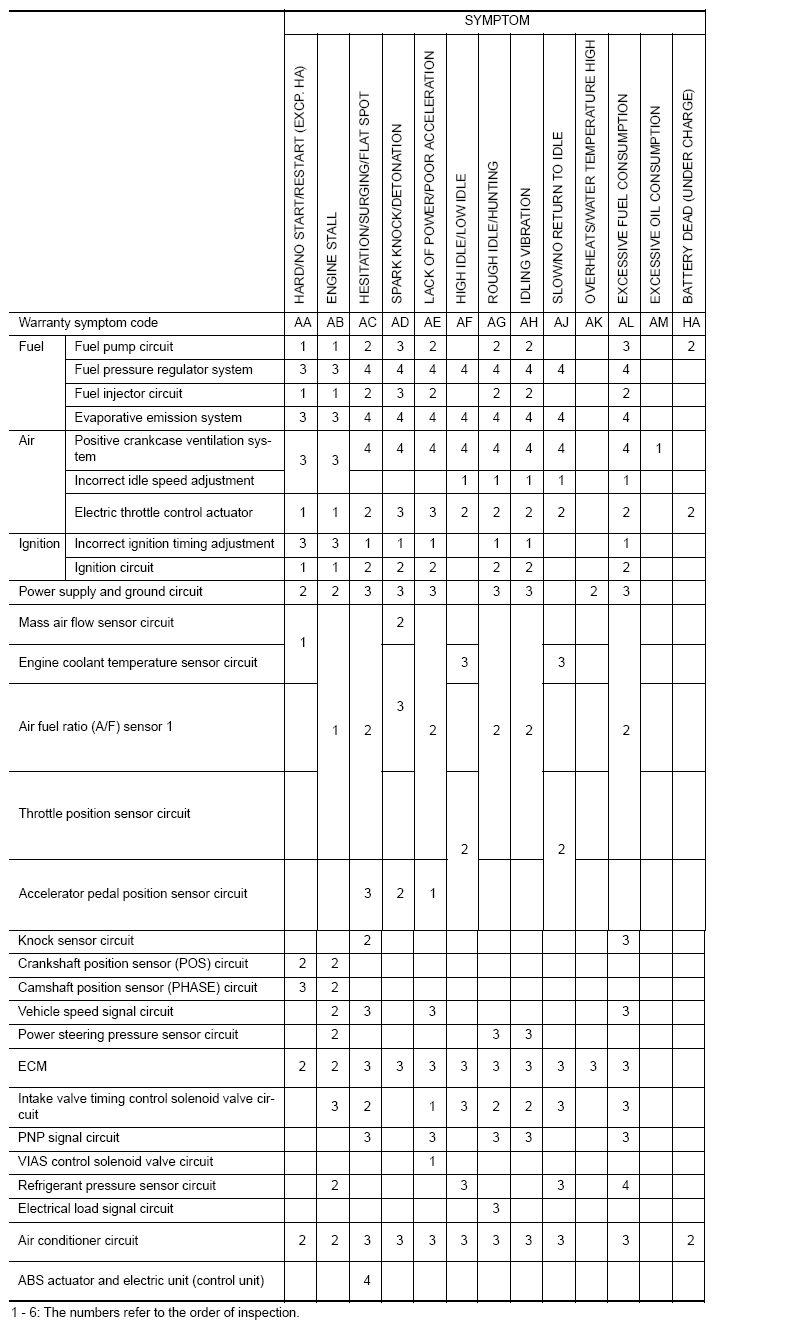

Fig 1: Engine Control System Symptoms Chart (Basic Engine Control System)
G08201418Courtesy of NISSAN NORTH AMERICA, INC.
