Pinout Values and Diagnostic Parameters




IPDM E/R

Reference Value

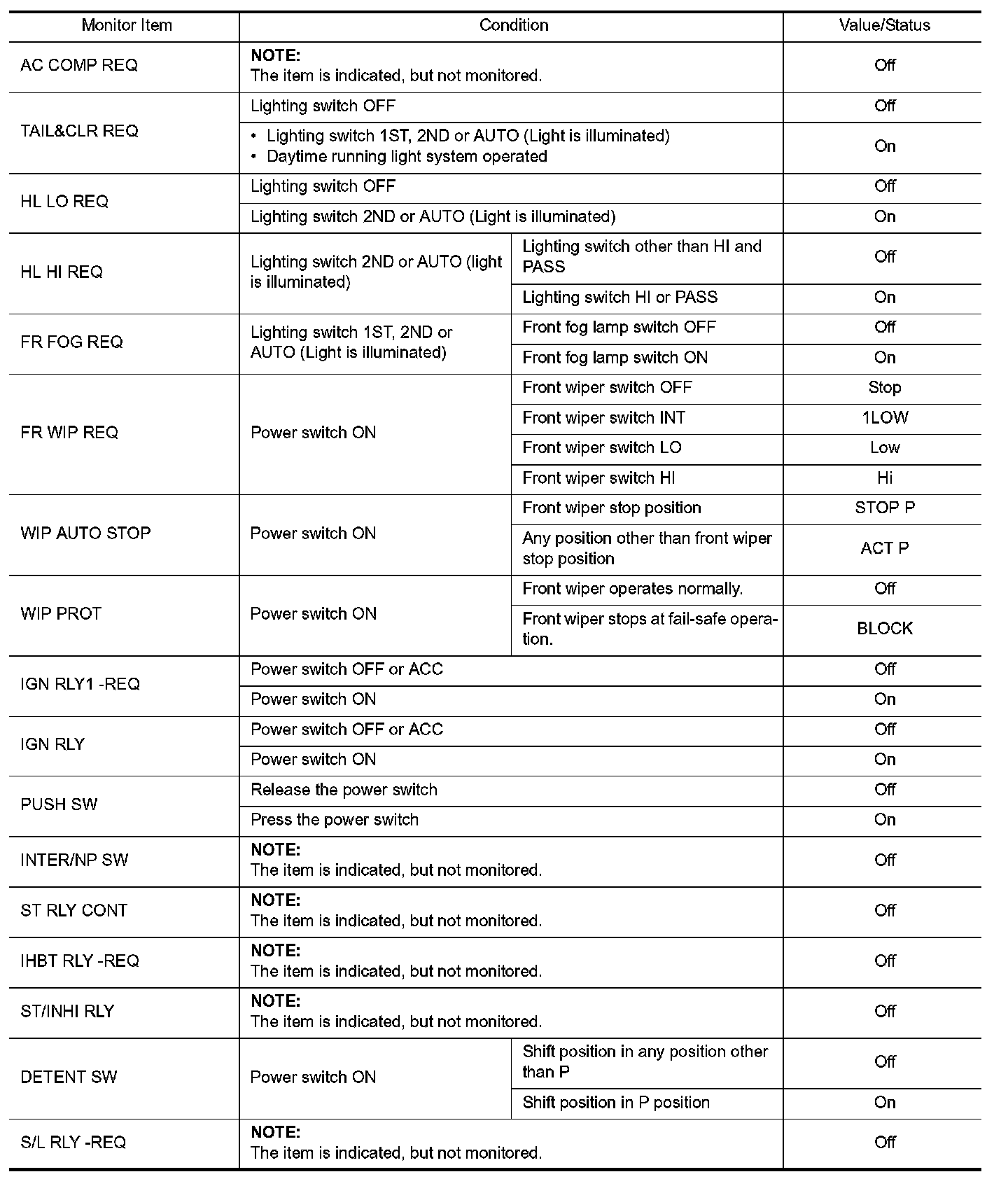

VALUES ON THE DIAGNOSIS TOOL

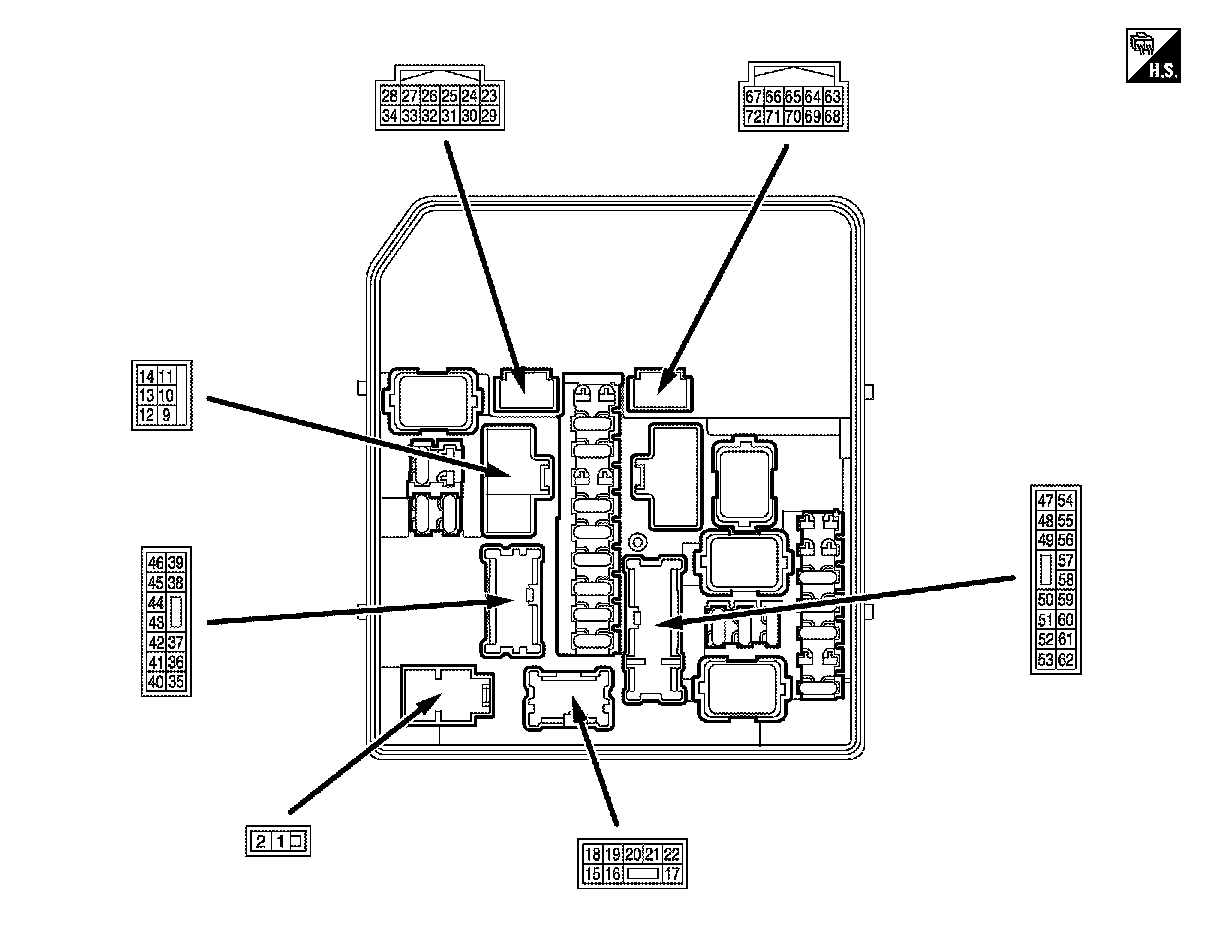

TERMINAL LAYOUT

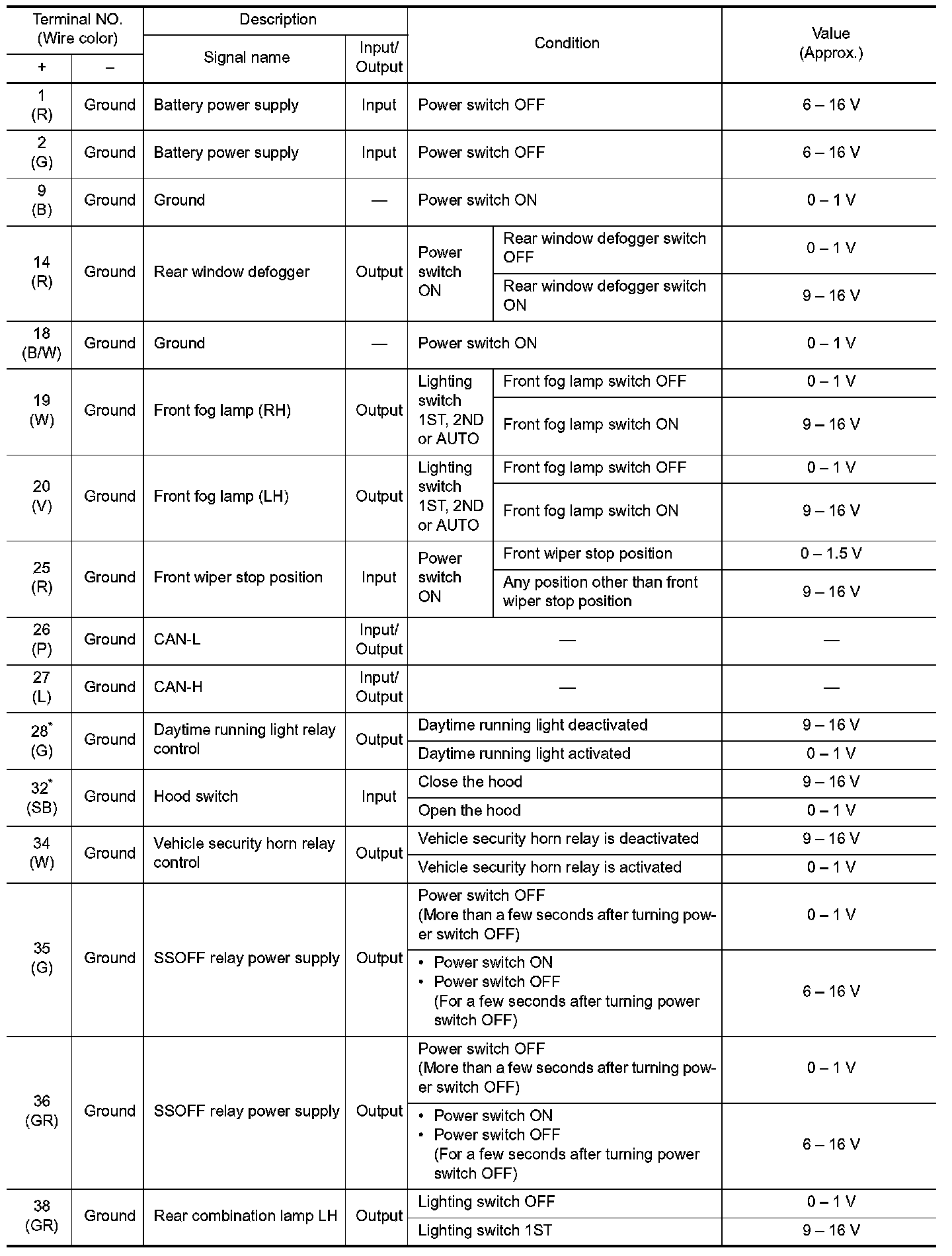

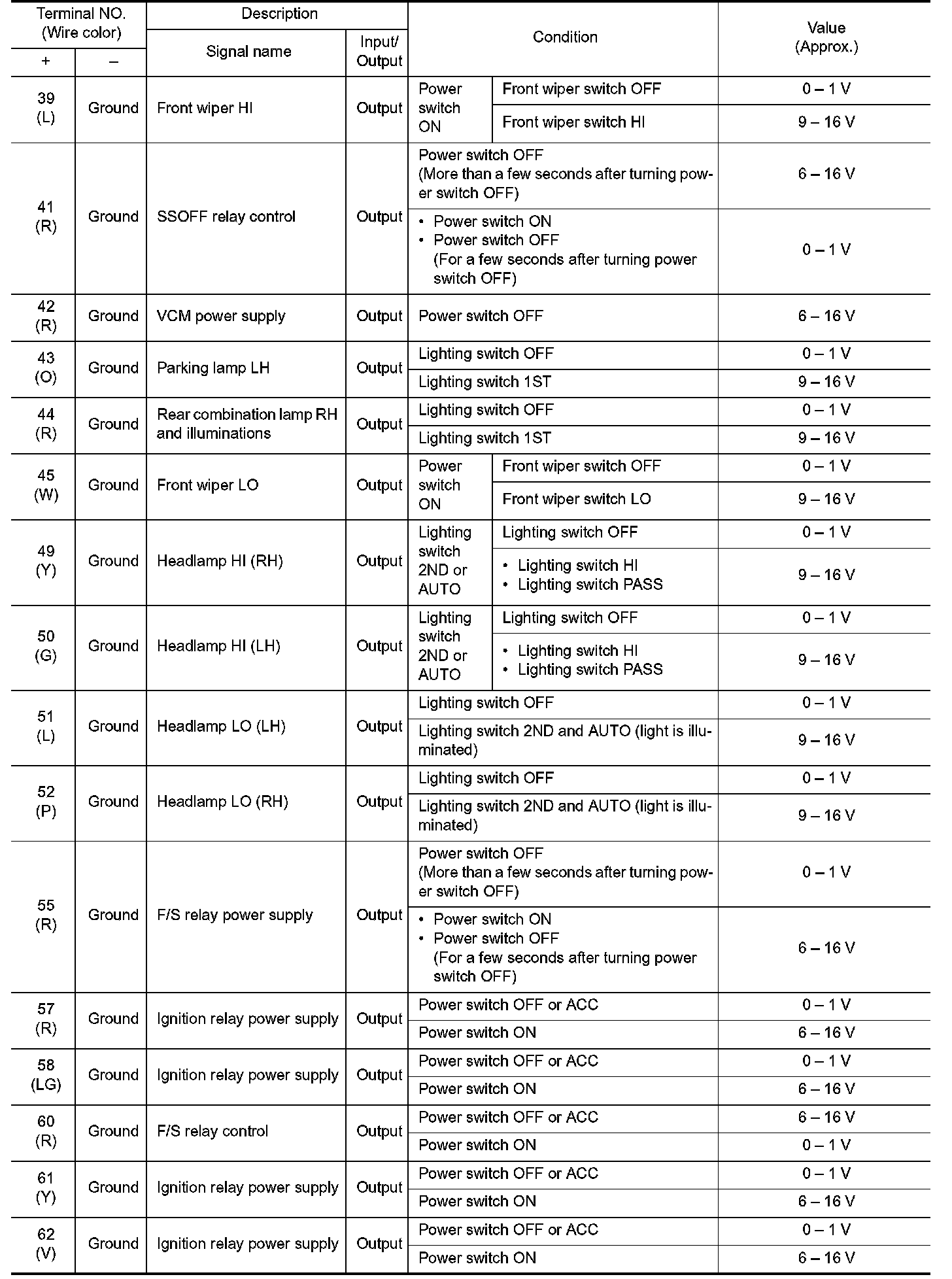

PHYSICAL VALUES
















*: For Canada
