CONSULT Function




DIAGNOSIS SYSTEM (BCM)

INT LAMP : CONSULT Function (BCM - INT LAMP)

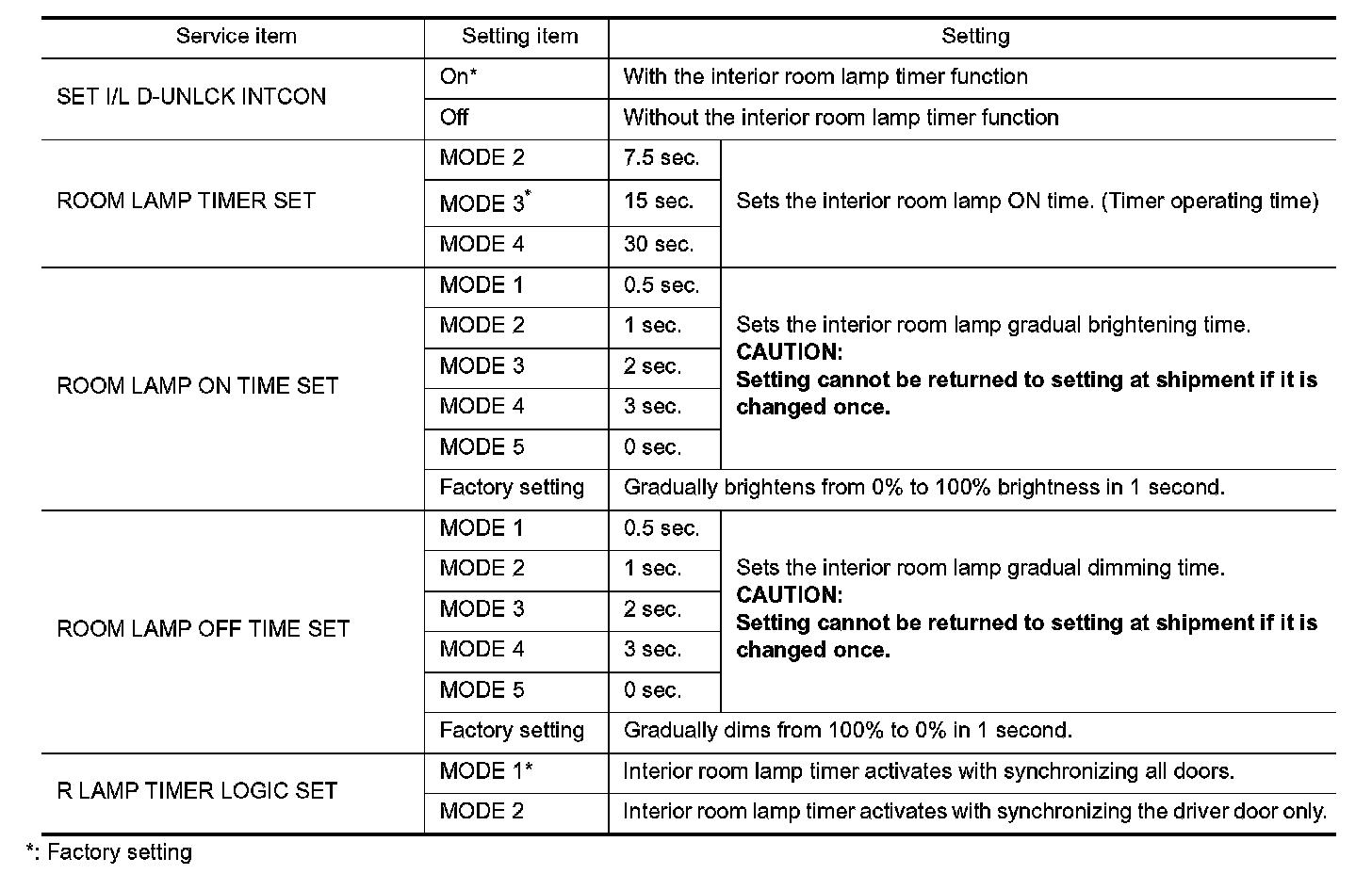

WORK SUPPORT

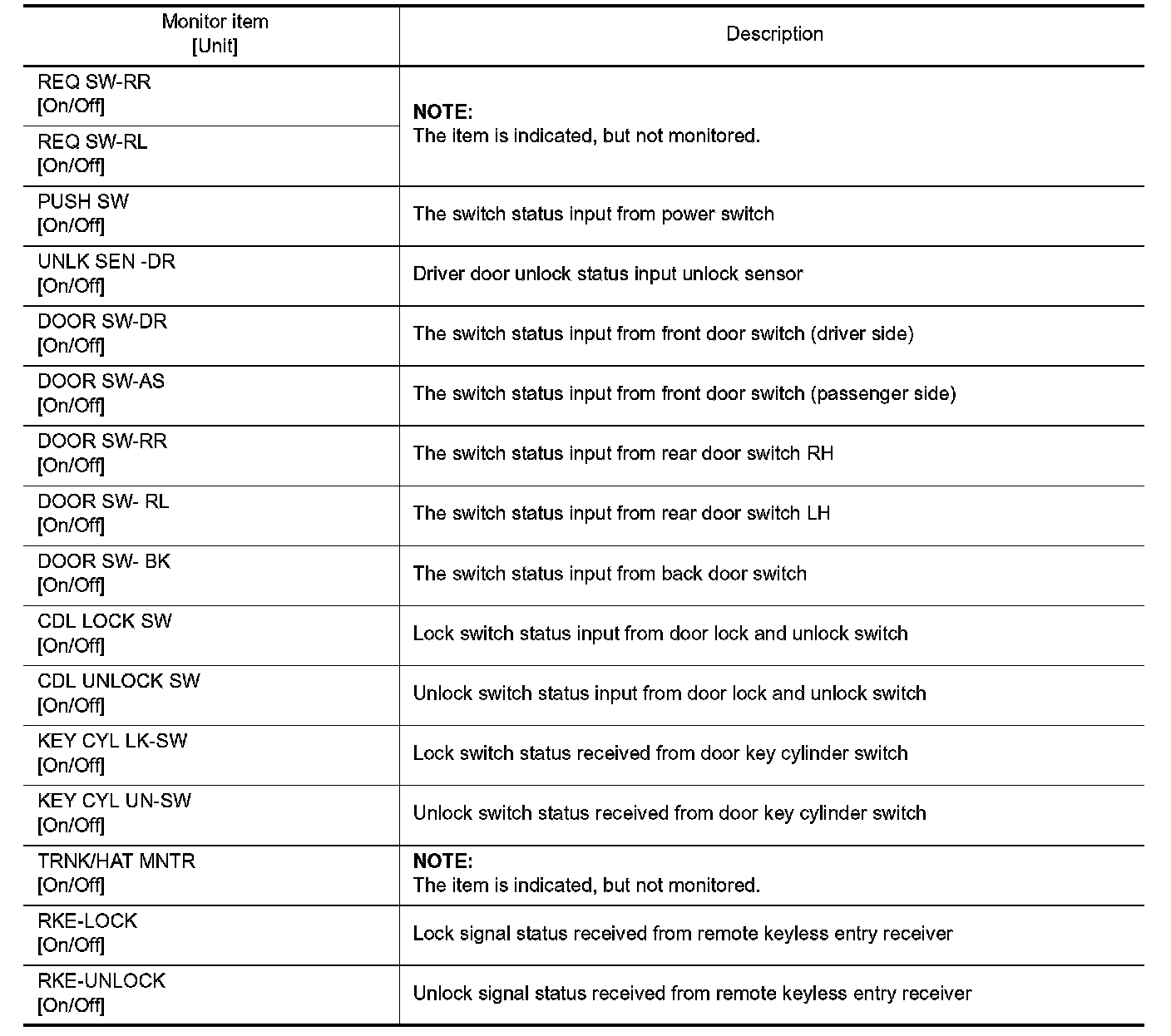

DATA MONITOR












ACTIVE TEST
