ASCD Brake Switch

  1. Turn ignition switch OFF.
  2. Disconnect ASCD brake switch harness connector.
  3. Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
    Condition Continuity
    When brake pedal: Fully released. Should exist.
    When brake pedal: Slightly depressed. Should not exist.

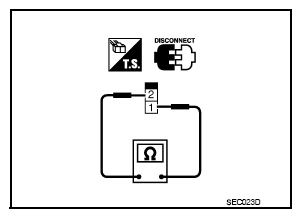

    Fig 1: Checking ASCD Brake Switch
    G08134269Courtesy of NISSAN NORTH AMERICA, INC.

    If NG, adjust ASCD brake switch installation, refer to "INSPECTION AND ADJUSTMENT ", and perform step  3 again.
