Exploded View
Exploded View

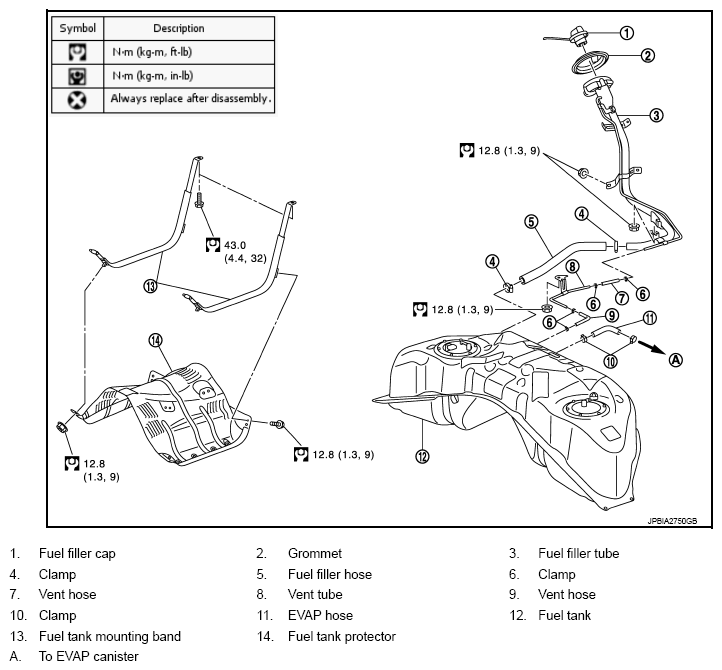

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to ,
COMPONENTS
for symbols in the figure.
