Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten ground screws on the body.

      Refer to "GROUND INSPECTION ".

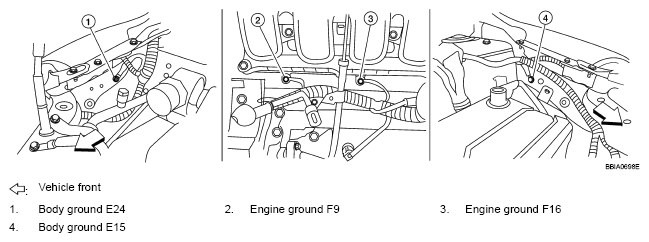

      Fig 1: Identifying Ground Connections
      G04812569Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK >> GO TO 2.

    NG >> Repair or replace ground connections.

  2. RETIGHTEN AIR FUEL RATIO (A/F) SENSOR 1

    Loosen and retighten the air fuel ratio (A/F) sensor 1 (2).

    • Air fuel ratio (A/F) sensor harness connector (1)

      Tightening torque: 50 N-m (5.1 kg-m, 37 ft-lb)

      >> GO TO 3.

      Fig 2: Identifying Air Fuel Ratio Sensor 1 And A/F Sensor 1 Harness Connector
      G04812049Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK FOR INTAKE AIR LEAK
    1. Start engine and run it at idle.
    2. Listen for an intake air leak after the mass air flow sensor.

    OK or NG

    OK >> GO TO 4.

    NG >> Repair or replace.

  4. CLEAR THE SELF-LEARNING DATA

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-II.
    3. Clear the self-learning control coefficient by touching "CLEAR".
    4. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171 and P0172 detected?

      Is it difficult to start engine?

      Fig 3: CONSULT-II Display - Work Support
      G04812565Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Turn ignition switch OFF.
    3. Disconnect mass air flow sensor (1) harness connector.
    4. Restart engine and let it idle for at least 5 seconds.
    5. Stop engine and reconnect mass air flow sensor harness connector.
    6. Make sure DTC P0102 is displayed.
    7. Erase the DTC memory. Refer to "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION ".
    8. Make sure DTC P0000 is displayed.
    9. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171 and P0172 detected?

      Is it difficult to start engine?

      Fig 4: Identifying Mass Air Flow Sensor
      G04812074Courtesy of NISSAN MOTOR CO., U.S.A.

    Yes or No

    Yes >> Perform trouble diagnosis for DTC P0171 or P0172. Refer to "DTC P0171 FUEL INJECTION SYSTEM FUNCTION " or "DTC P0172 FUEL INJECTION SYSTEM FUNCTION ".

    No >> GO TO 5.

  5. CHECK HARNESS CONNECTOR
    1. Turn ignition switch OFF.
    2. Disconnect A/F sensor 1 harness connector (1).
      • Air fuel ratio (A/F) sensor (2)
    3. Check harness connector for water.

      Water should no exist.

    OK or NG

    OK >> GO TO 6.

    NG >> Repair or replace harness connector.

    Fig 5: Identifying Air Fuel Ratio Sensor 1 And A/F Sensor 1 Harness Connector
    G04812049Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
    1. Turn ignition switch ON.
    2. Check voltage between A/F sensor 1 terminal 4 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    OK >> GO TO  8.

    NG >> GO TO 7.

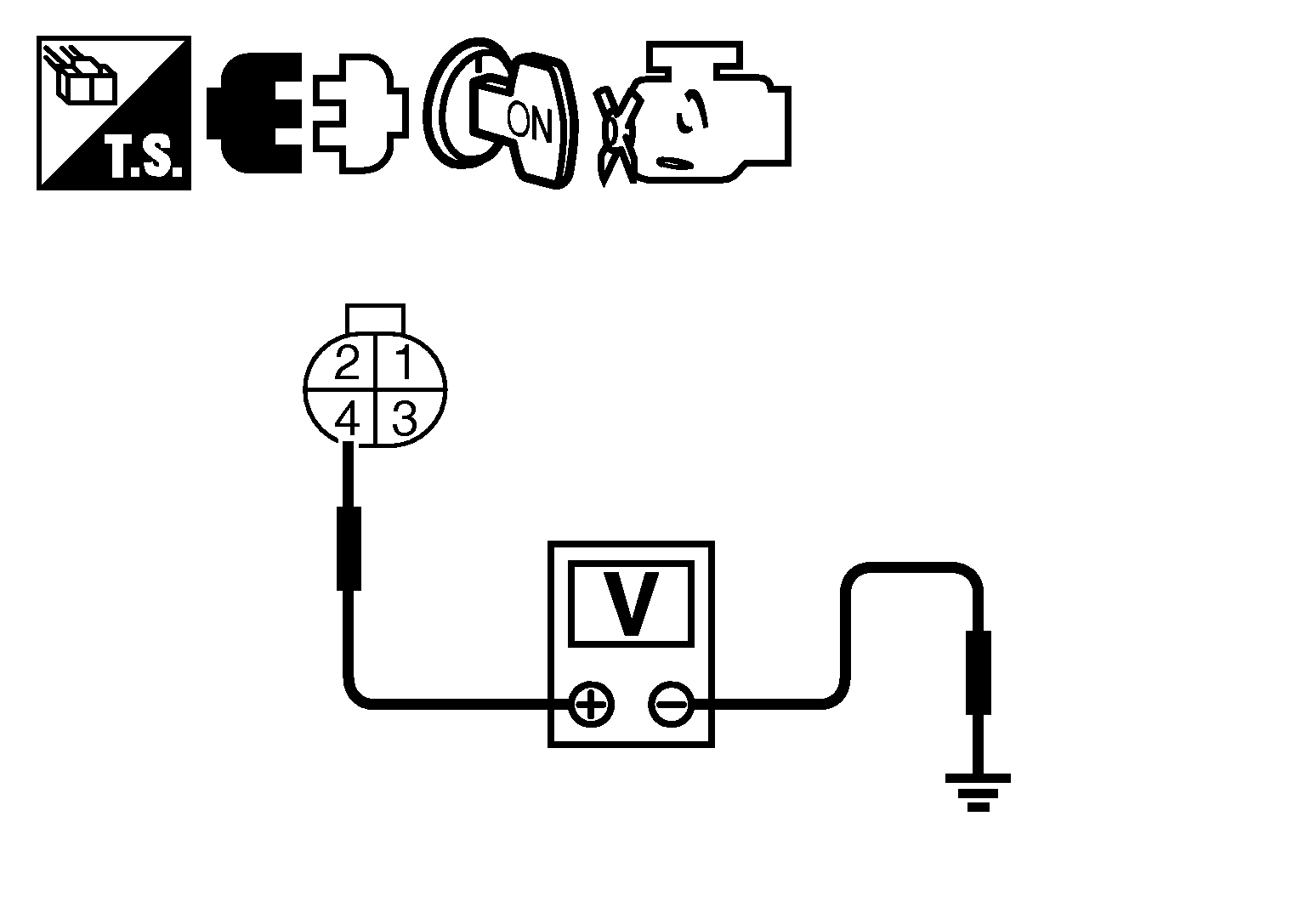

    Fig 6: Checking Voltage Between A/F Sensor 1 Terminal 4 And Ground
    G04812050Courtesy of NISSAN MOTOR CO., U.S.A.
  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E8, F8
    • Harness for open or short between A/F sensor 1 and fuse

      >> Repair or replace harness or connectors.

  8. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between the following terminals. Refer to WIRING DIAGRAM .
      ECM TERMINAL CONTINUITY REFERENCE CHART

      A/F sensor 1 terminal ECM terminal
      1 49
      2 53

      Continuity should exist.

    4. Check harness continuity between ECM terminals 49, 53 or A/F sensor 1 terminals 1, 2 and ground.

      Refer to WIRING DIAGRAM .

      Continuity should not exist.

    5. Also check harness for short to power.

    OK or NG

    OK >> GO TO 9.

    NG >> Repair open circuit or short to ground or short to power in harness or connectors.

  9. CHECK A/F SENSOR 1 HEATER

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK >> GO TO 10.

    NG >> GO TO  11.

  10. CHECK INTERMITTENT INCIDENT

    Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    OK or NG

    OK >> GO TO 11.

    NG >> Repair or replace.

  11. REPLACE AIR FUEL RATIO (A/F) SENSOR 1

    Replace air fuel ratio (A/F) sensor 1.

    CAUTION:
    • Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
    • Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads using Heated Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

    >> GO TO 12.

  12. CONFIRM A/F ADJUSTMENT DATA
    1. Turn ignition switch ON.
    2. Select "A/F ADJ-B1" in "DATA MONITOR" mode with CONSULT-II.
    3. Make sure that "0.000" is displayed on CONSULT-II screen.

    OK or NG

    OK >> INSPECTION END

    NG >> GO TO 13.

    Fig 7: CONSULT-II Display - Data Monitor
    G04812575Courtesy of NISSAN MOTOR CO., U.S.A.
  13. CLEAR THE SELF-LEARNING DATA

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-II.
    3. Clear the self-learning control coefficient by touching "CLEAR".
      Fig 8: CONSULT-II Display - Work Support
      G04812565Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Turn ignition switch OFF.
    3. Disconnect mass air flow sensor harness (1) connector.
    4. Restart engine and let it idle for at least 5 seconds.
    5. Stop engine and reconnect mass air flow sensor harness connector.
    6. Make sure DTC P0102 is displayed.
    7. Erase the DTC memory. Refer to "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION ".
    8. Make sure DTC P0000 is displayed.

      >> GO TO 14.

      Fig 9: Identifying Mass Air Flow Sensor
      G04812074Courtesy of NISSAN MOTOR CO., U.S.A.
  14. CONFIRM A/F ADJUSTMENT DATA
    1. Turn ignition switch OFF and then ON.
    2. Select "A/F ADJ-B1" in "DATA MONITOR" mode with CONSULT-II.
    3. Make sure that "0.000" is displayed on CONSULT-II screen.

      >> INSPECTION END

      Fig 10: CONSULT-II Display - Data Monitor
      G04812575Courtesy of NISSAN MOTOR CO., U.S.A.
