Section 224 (Engine Control System - Introduction (MR20DE))
>>
Engine Control System
>>
System Diagram
System Diagram
WARNING:
This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

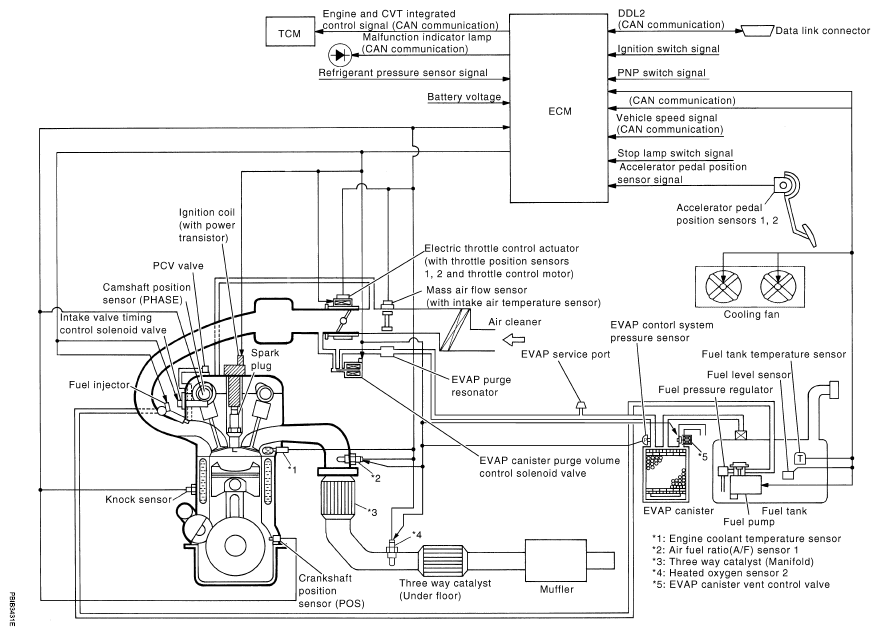

Fig 1: Engine Control System - System Diagram
