Component Parts Location

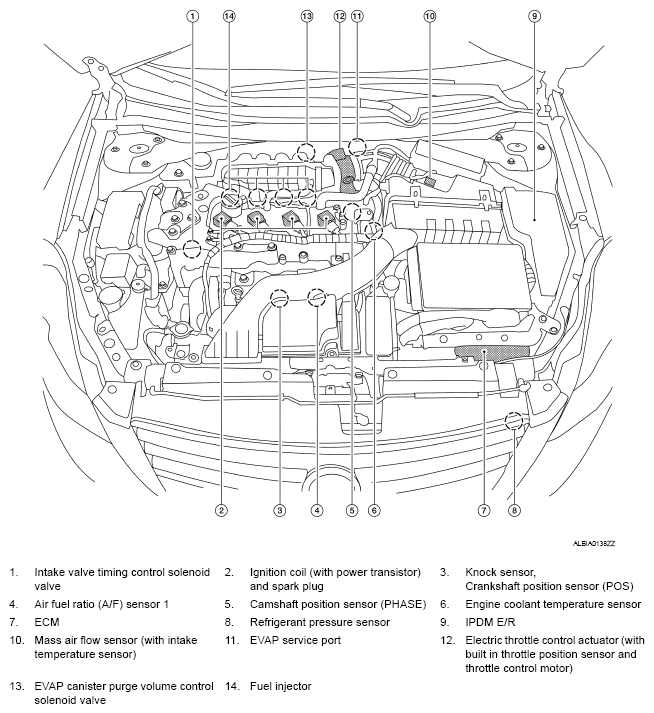

Fig 1: Identifying Cooling Fan Control System Components Location (1 Of 7)
G05694909Courtesy of NISSAN MOTOR CO., U.S.A.

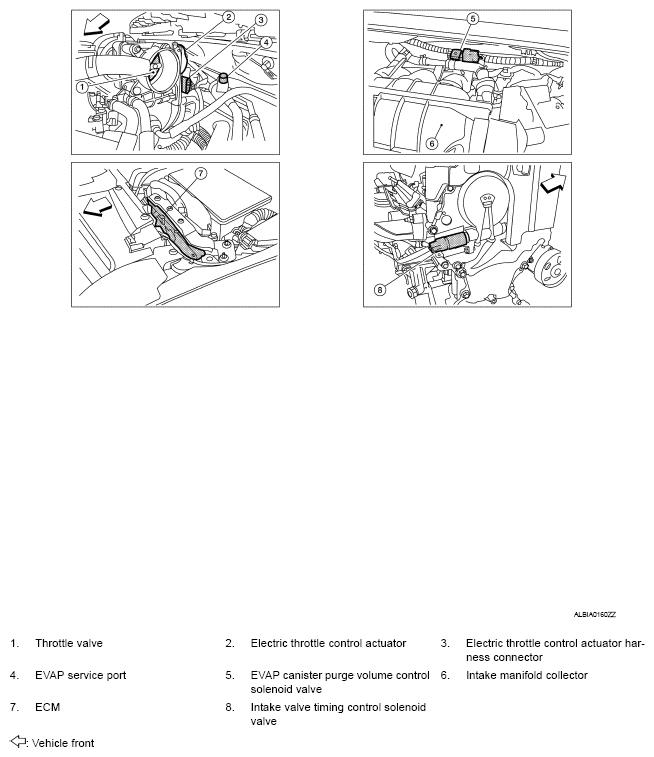

Fig 2: Identifying Cooling Fan Control System Components Location (2 Of 7)
G05694910Courtesy of NISSAN MOTOR CO., U.S.A.

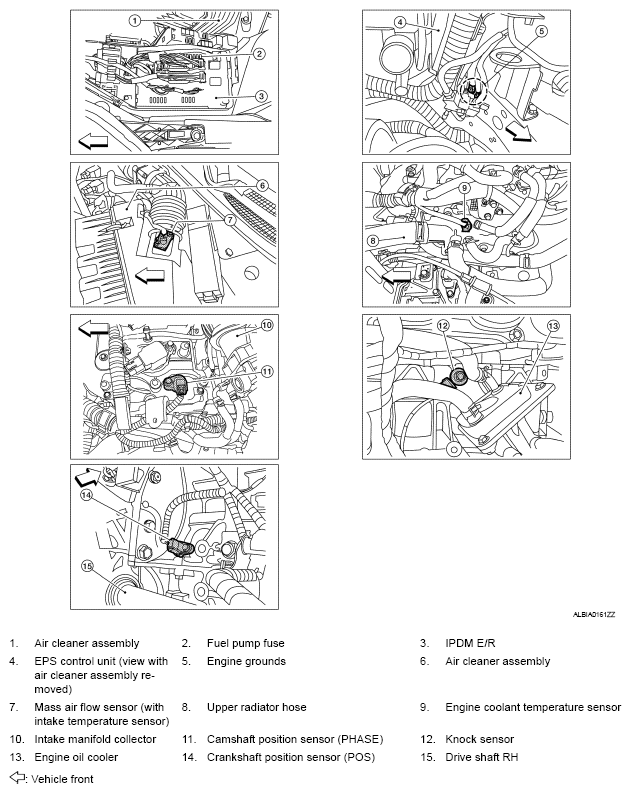

Fig 3: Identifying Cooling Fan Control System Components Location (3 Of 7)
G05694911Courtesy of NISSAN MOTOR CO., U.S.A.

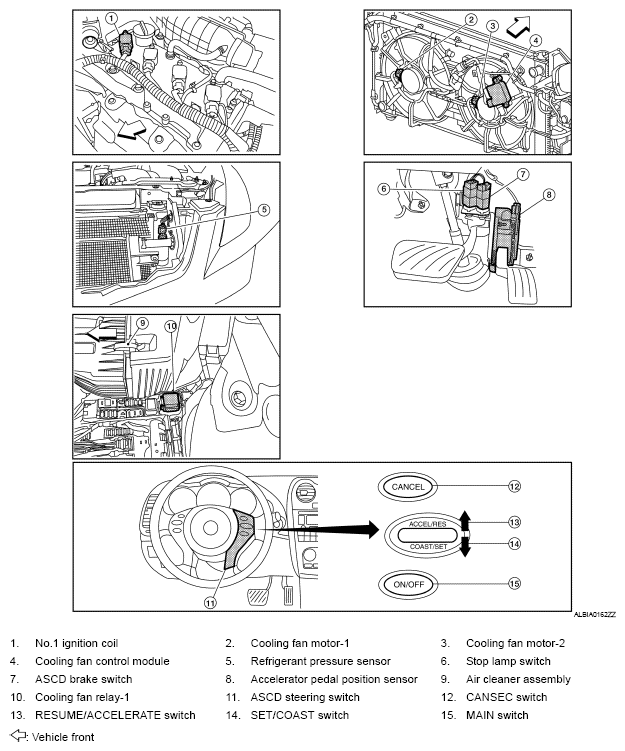

Fig 4: Identifying Cooling Fan Control System Components Location (4 Of 7)
G05694912Courtesy of NISSAN MOTOR CO., U.S.A.

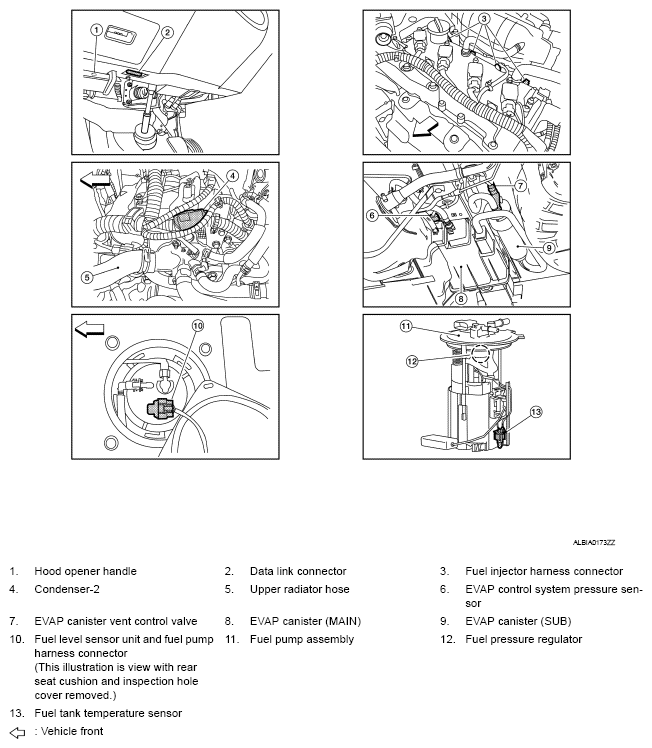

Fig 5: Identifying Cooling Fan Control System Components Location (5 Of 7)
G05694913Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Identifying Cooling Fan Control System Components Location (6 Of 7)
G05694914Courtesy of NISSAN MOTOR CO., U.S.A.

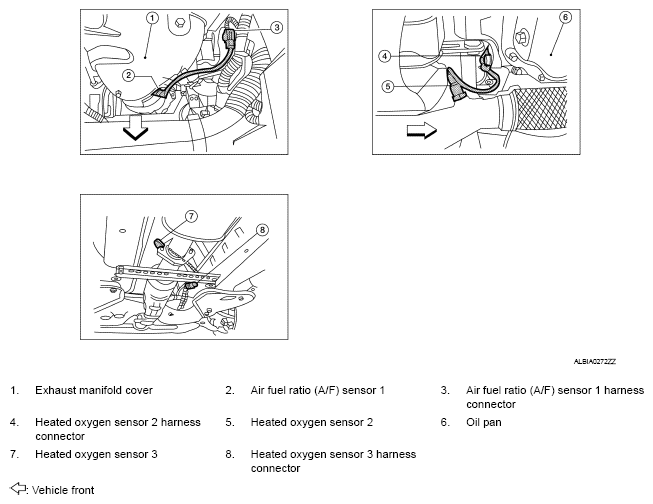

Fig 7: Identifying Cooling Fan Control System Components Location (7 Of 7)
G05694915Courtesy of NISSAN MOTOR CO., U.S.A.
