Body (Alignment): Alignment: Underbody: Measurement

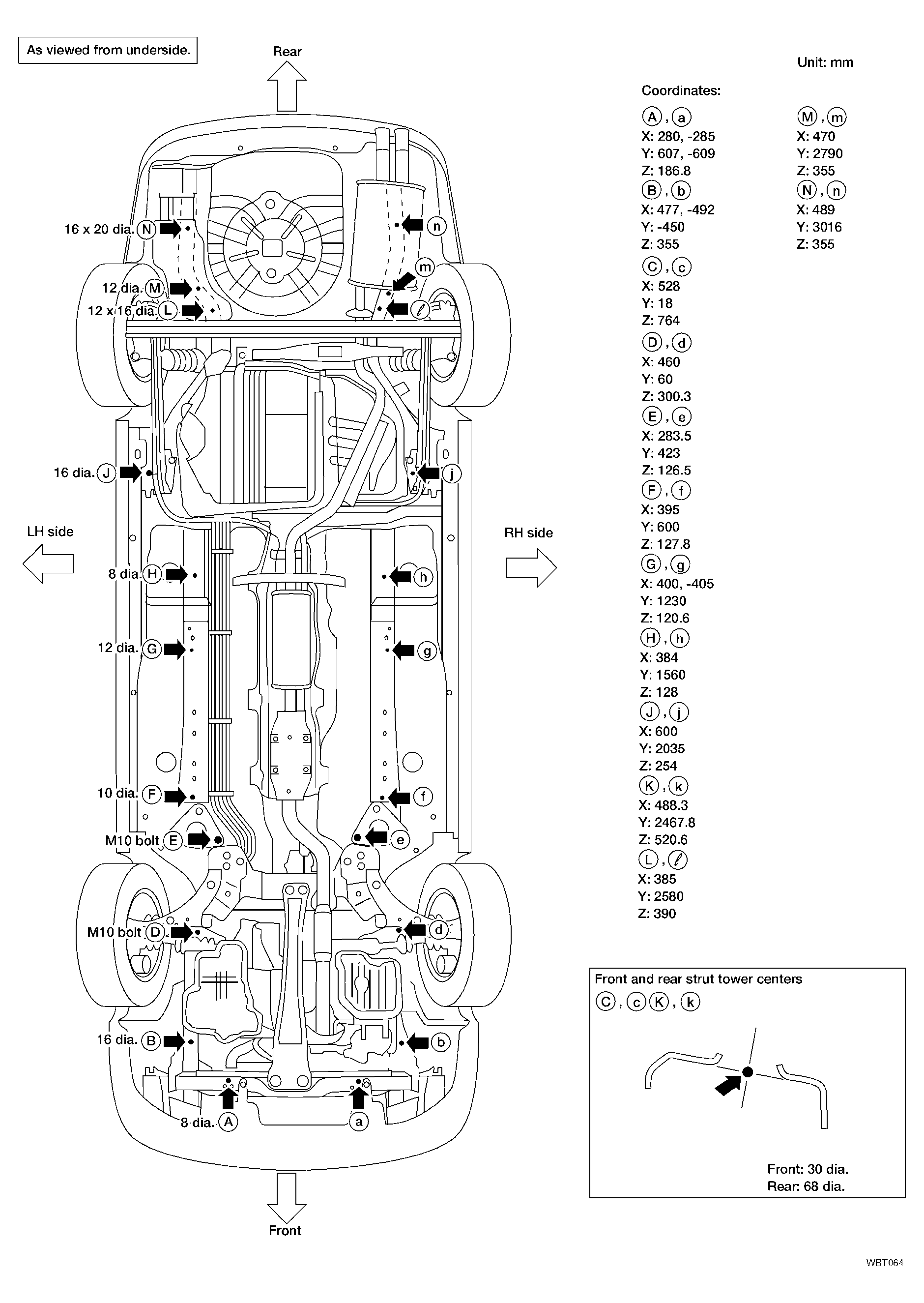

Fig 1: Identifying Underbody Measurement

G04195059

Courtesy of NISSAN MOTOR CO., U.S.A.
