Engine Control System - Introduction
>>
Trouble Diagnosis
>>
Trouble Diagnosis Introduction
>>
Work Flow
>>
Overall Sequence
Overall Sequence

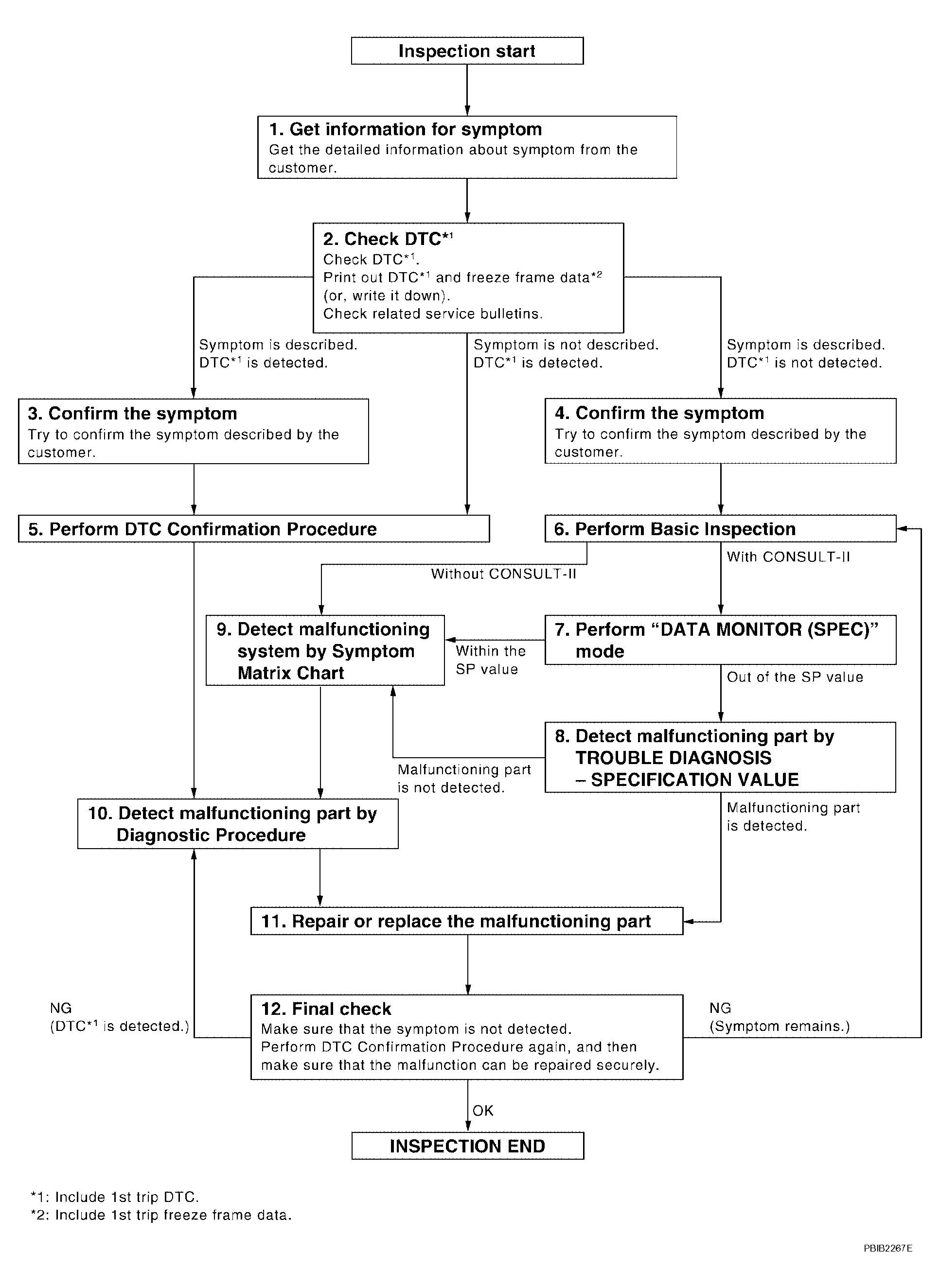

Fig 1: Identifying Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
