Nissan-Datsun
>>
2006
>>
Altima SE-R, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Transmission
>>
RS5F51A
>>
Transaxle Assembly
>>
Component Parts
>>
Shift Control Components
Shift Control Components

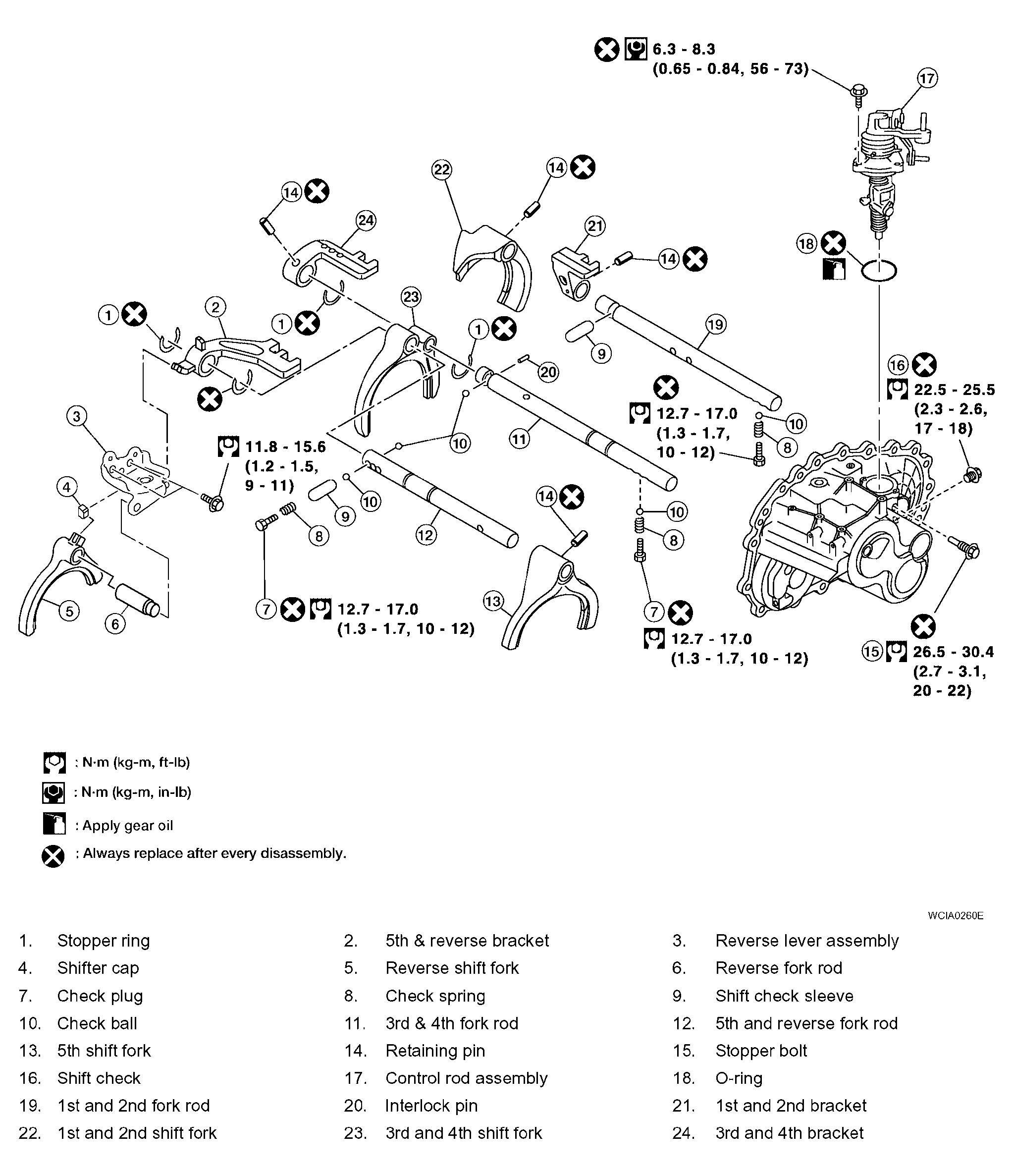

Fig 1: Exploded View Of Shift Control Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
