Nissan-Datsun
>>
2006
>>
Altima SE-R, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Clutch
>>
Operating Cylinder
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes

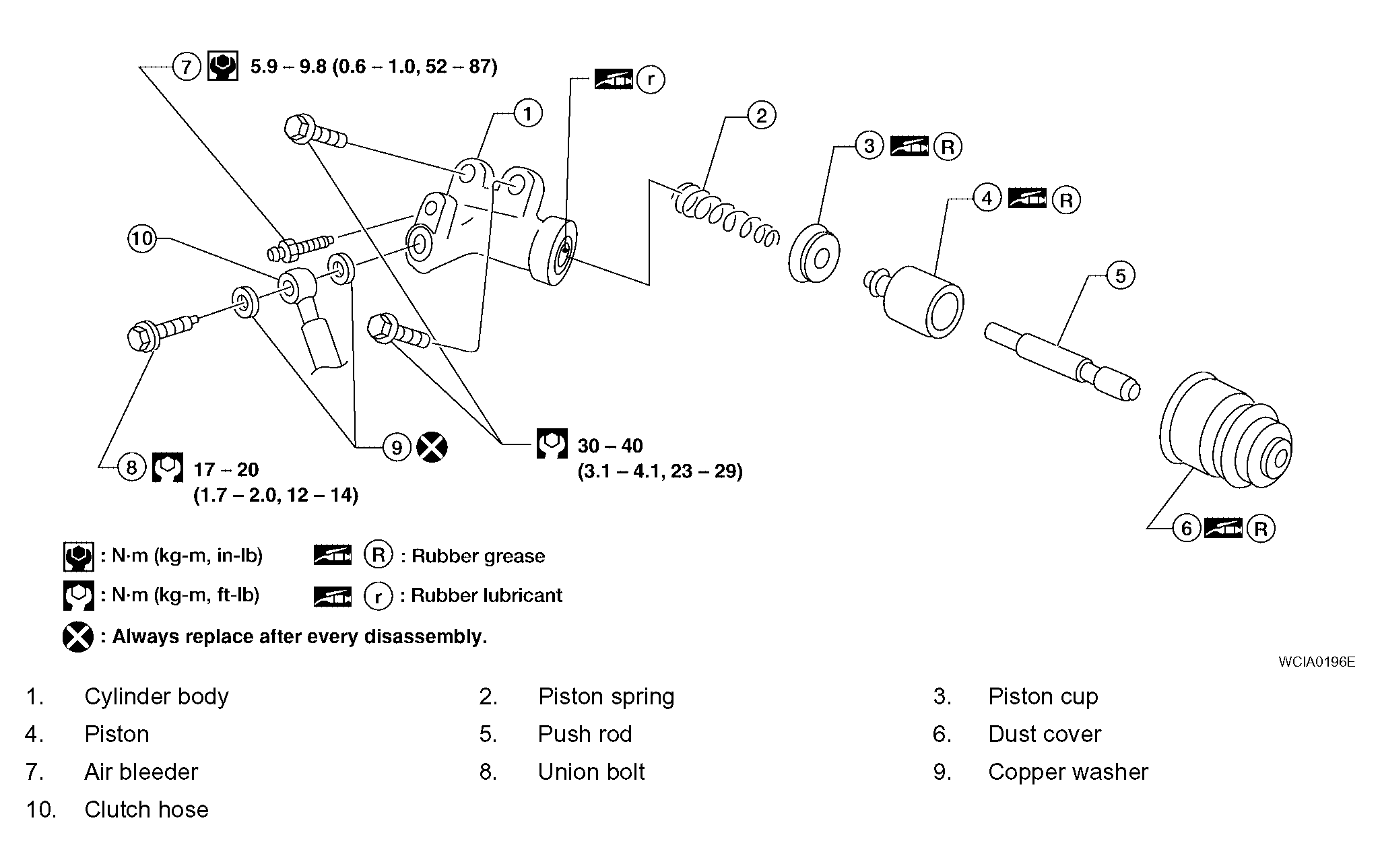

Fig 1: Removing And Installing Operating Cylinder (With Specifications)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
