Home
>>
Nissan-Datsun
>>
2005
>>
Sentra SE-R
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (Re4F04B)
>>
Service Data And Specifications (SDS)
>>
General Specifications
General Specifications

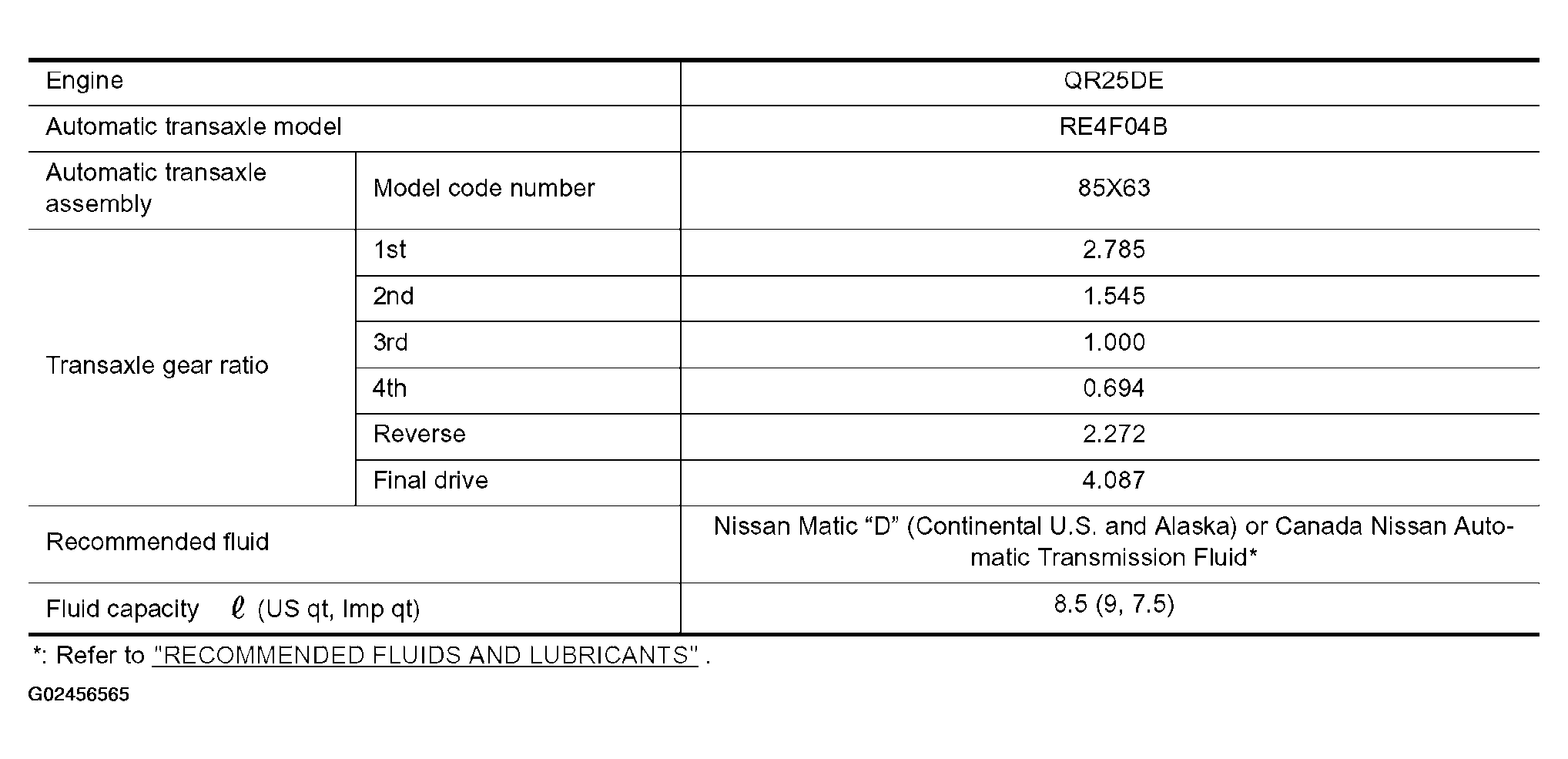

Fig 1: General Data Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
