Control Valve And Plug Return Springs

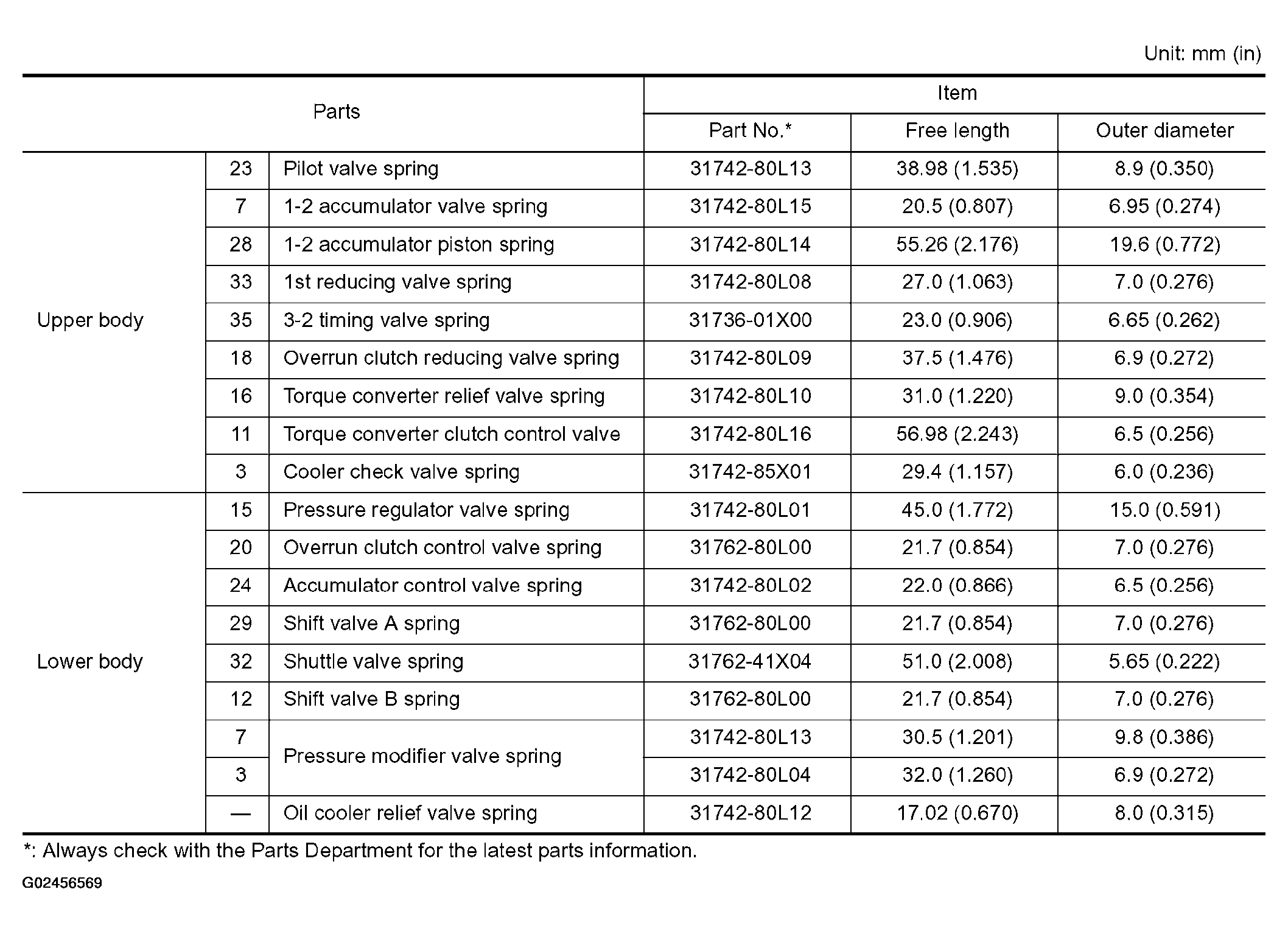

Fig 1: Control Valve & Plug Return Springs Specifications Chart

G02456569

Courtesy of NISSAN MOTOR CO., U.S.A.
