CONSULT-II Function (ENGINE)
>>
Work Support Mode
>>
Work Item
Work Item

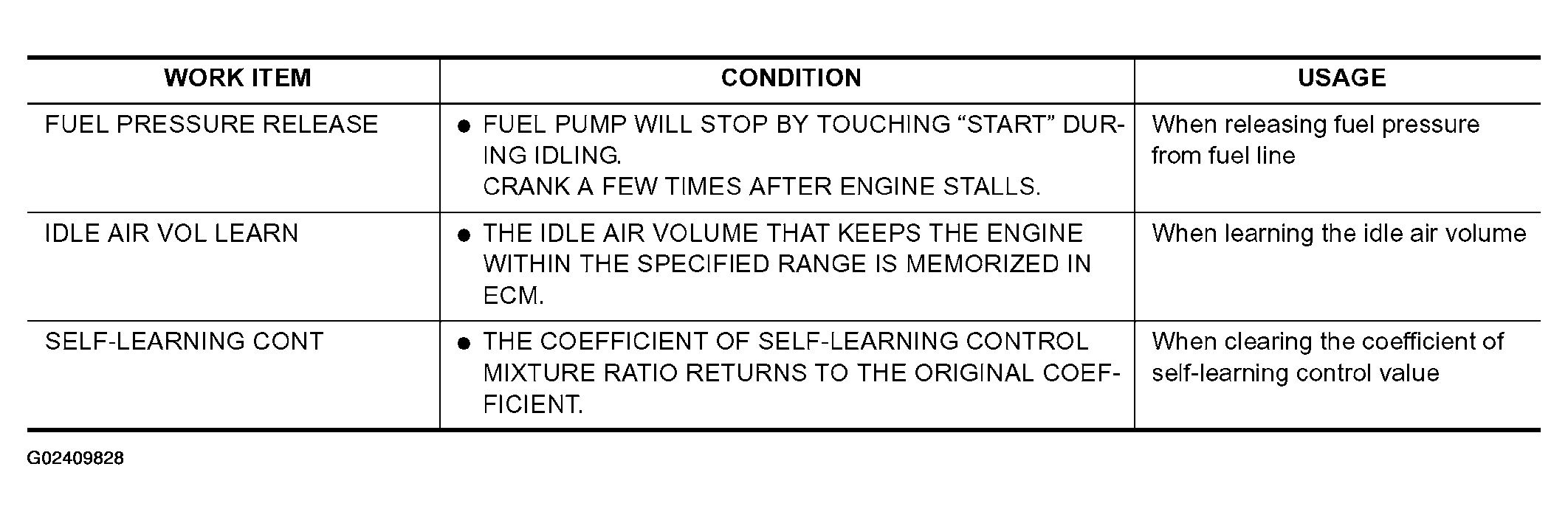

Fig 1: Troubleshooting Work Item Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

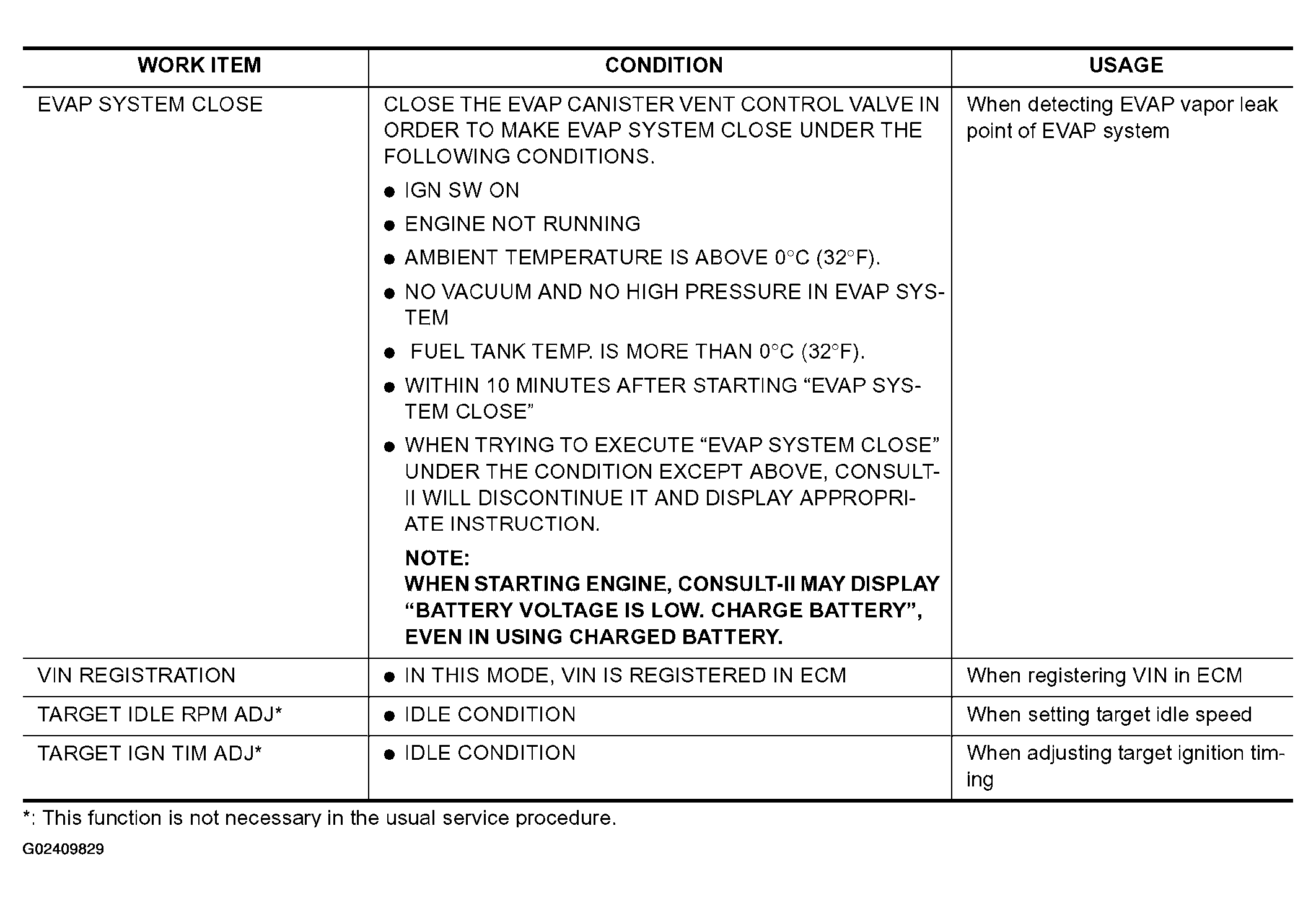

Fig 2: Troubleshooting Work Item Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
